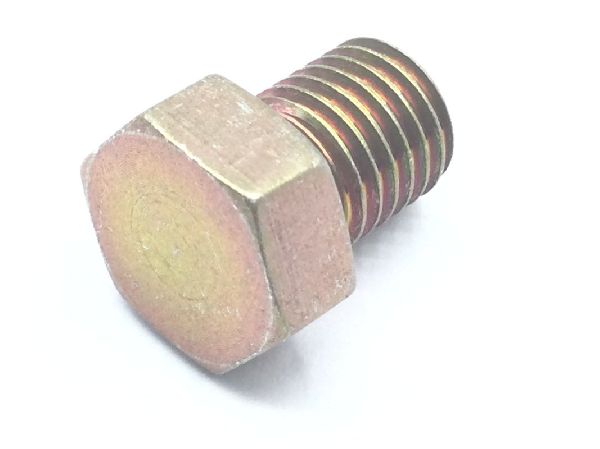

MS21913V2P Threaded Tube Fitting Plug (2)

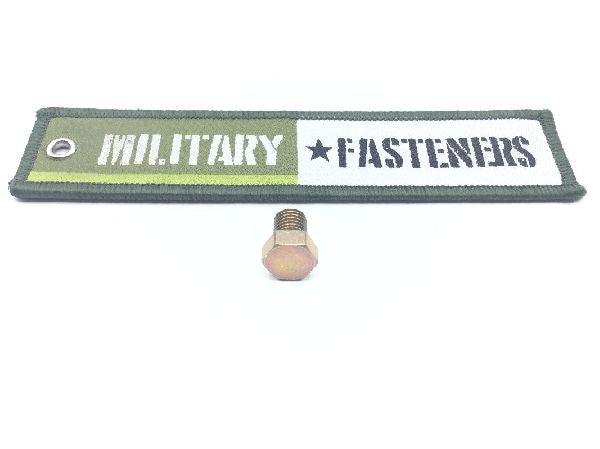

MS21913V2P Threaded Tube Fitting Plug (3)

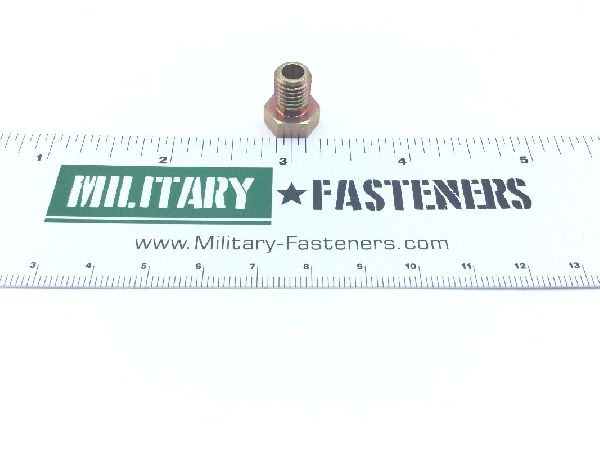

MS21913V2P Threaded Tube Fitting Plug (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

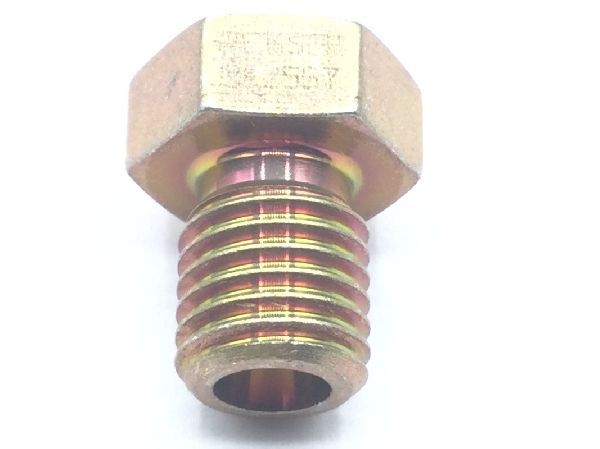

MS21913V2P Threaded Tube Fitting Plug

Product Series: MS
ECCN: EAR99
Schedule: 7307.99.4000

Price per Unit $88.20

Units per Pack 1

Price per Pack $88.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $88.20

Add item to quote

Material

Steel

Overall Length

0.563 inches

Thread Class

3a external

Thread Size

0.313 inches external

Connection Style: Flareless
Head Height: 0.188 inches
Maximum Operating Pressure: 1500.0 pounds per square inch
Maximum Operating Temp: 275.0 degrees fahrenheit
Media For Which Designed: Hydraulic fluid
Part Name Assigned By Controlling Agency: Flareless tube plug
Seat Angle: 12.0 degrees
Special Features: Corrosion resistant steel (15-5ph) with cadmium plating
Specification Data: 81343-as21913 professional/industrial association standard
Style Designator: tube fitting flareless (note: drilled hole is optional should not be considered as a separating characteristic plug
Thread Direction: Right-hand external
Thread Series Designator: Unjf (fine thread with external controlled root radius) external
