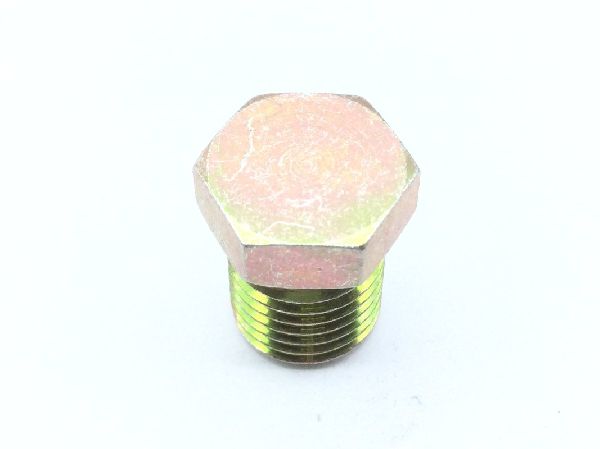

MS21913V4P Threaded Tube Fitting Plug

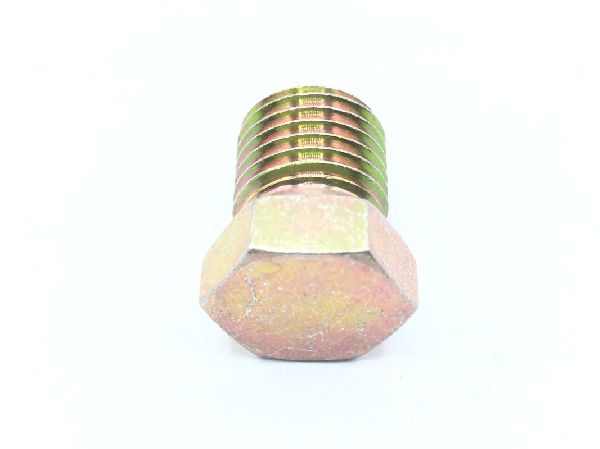

MS21913V4P Threaded Tube Fitting Plug (2)

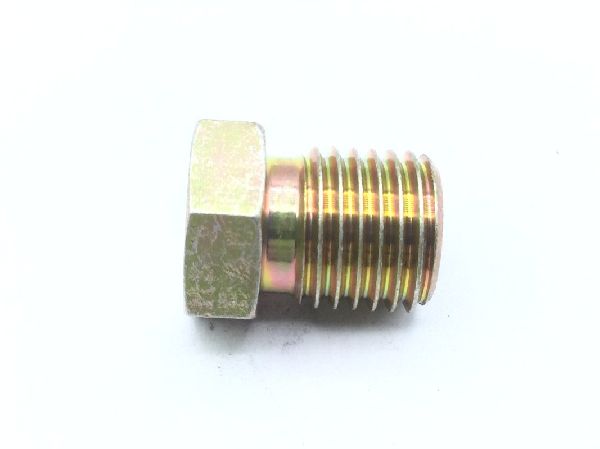

MS21913V4P Threaded Tube Fitting Plug (3)

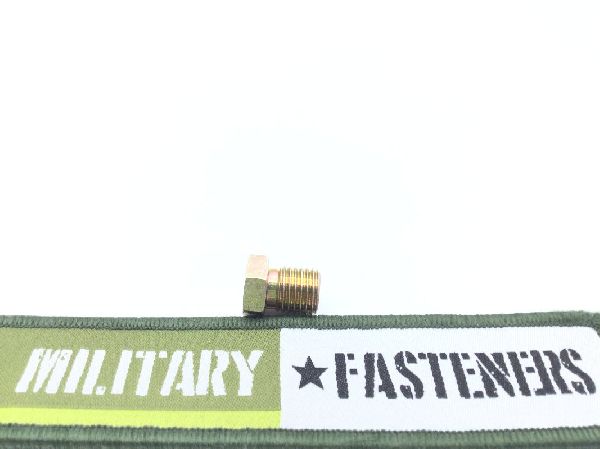

MS21913V4P Threaded Tube Fitting Plug (4)

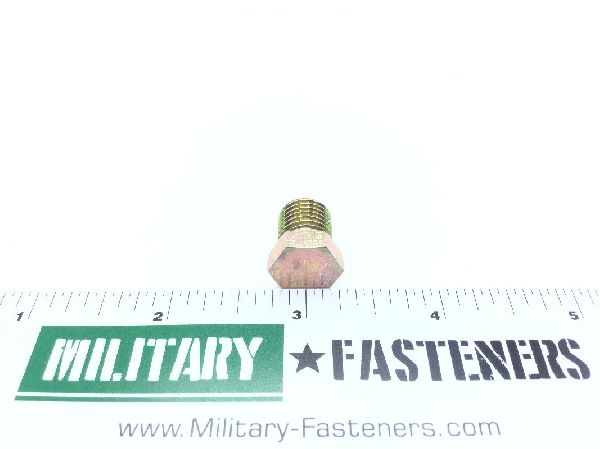

MS21913V4P Threaded Tube Fitting Plug (5)

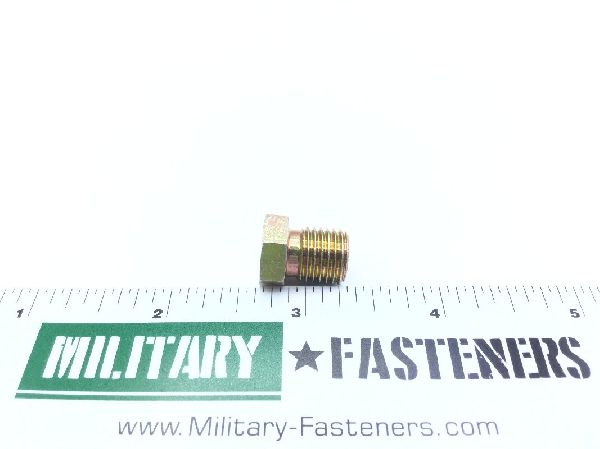

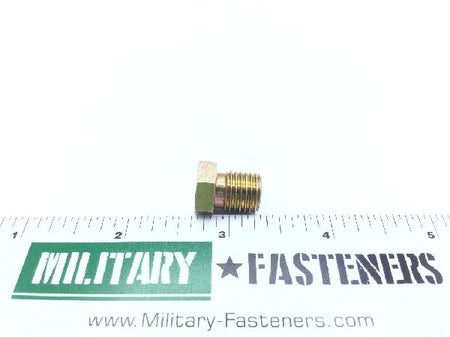

MS21913V4P Threaded Tube Fitting Plug (6)
MS21913V4P Threaded Tube Fitting Plug
MS21913V4P Threaded Tube Fitting Plug (2)
MS21913V4P Threaded Tube Fitting Plug (3)
MS21913V4P Threaded Tube Fitting Plug (4)
MS21913V4P Threaded Tube Fitting Plug (5)
MS21913V4P Threaded Tube Fitting Plug (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21913V4P Threaded Tube Fitting Plug

Product Series
MS
ECCN
EAR99
Schedule
7307.22.5000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 15-5ph
Overall Length
0.641 inches
Thread Class
3a external
Thread Size
0.438 inches external
Connection Style
Flareless
Head Height
0.203 inches
Maximum Operating Pressure
1500.0 pounds per square inch
Maximum Operating Temp
275.0 degrees fahrenheit
Media For Which Designed
Hydraulic fluid
Part Name Assigned By Controlling Agency
Flareless tube plug
Seat Angle
12.0 degrees
Special Features
Corrosion resistant steel (15-5ph) with cadmium plating
Specification Data
81343-as21913 professional/industrial association standard
Style Designator
tube fitting flareless (note: drilled hole is optional should not be considered as a separating characteristic) plug
Thread Direction
Right-hand external
Thread Series Designator
Unjf (fine thread with external controlled root radius) external
