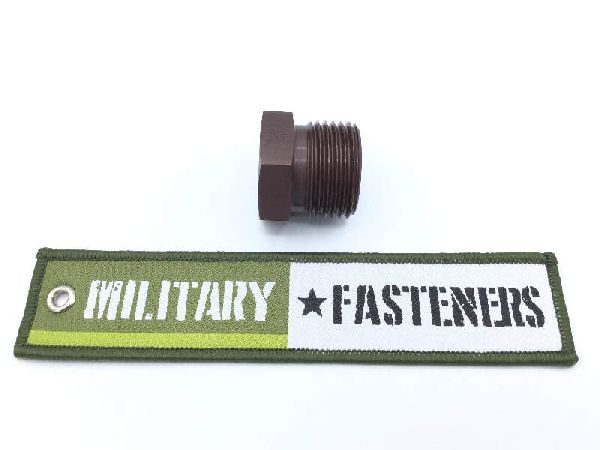

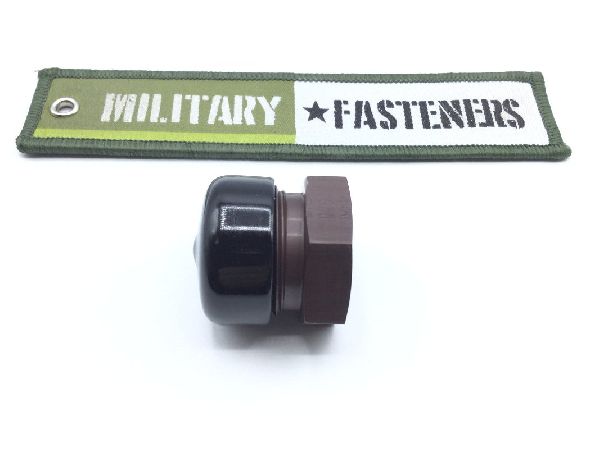

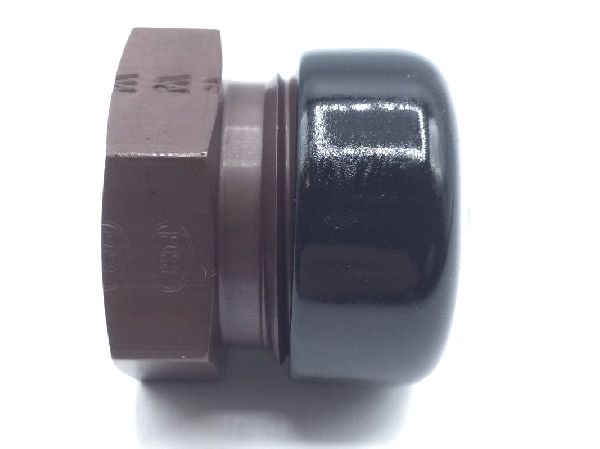

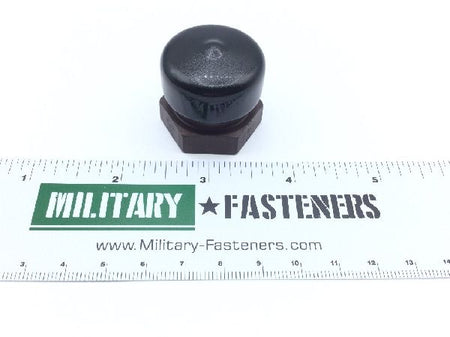

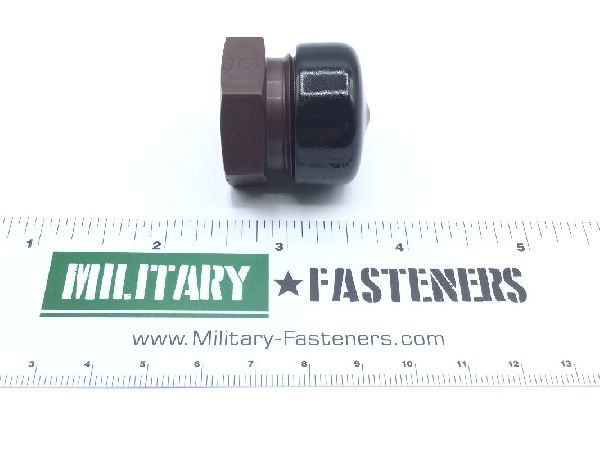

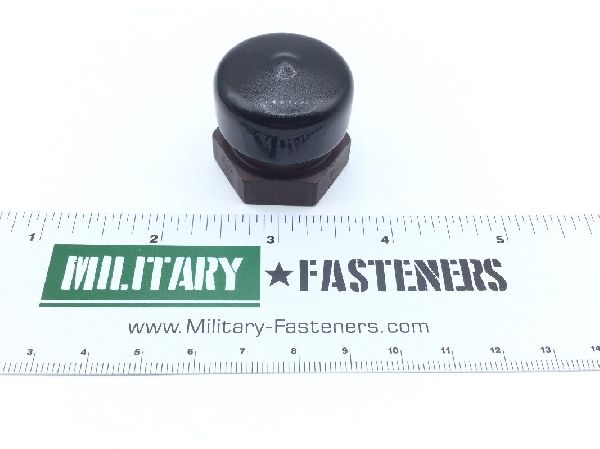

MS21913W12 Threaded Tube Fitting Plug

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2024

Overall Length

1.031 inches

Surface Treatment

Class 1 military specification single treatment response type 2 mil-a-8625

Thread Class

3a external

Thread Size

1.062 inches external

Connection Style: Flareless
Head Height: 0.344 inches
Iii End Application: Model ch-47; mrap buffalo mk2a2 boeing vertol cargo transport helicopter
Material Specification: T62 or t851 federal specification single material response qq-a-225/6 t6
Seat Angle: 12.0 degrees
Specification Data: 81343-ms21913 professional/industrial association standard
Style Designator: tube fitting flareless (note: drilled hole is optional should not be considered as a separating characteristic) plug
Thread Direction: Right-hand external
Thread Qty Per Inch (tpi): 12 external
Thread Series Designator: Unj external
