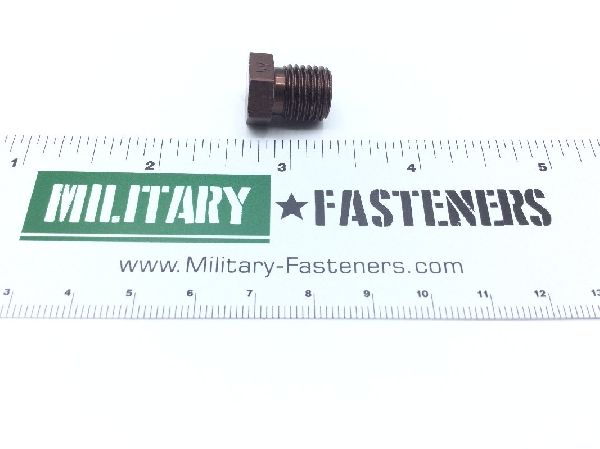

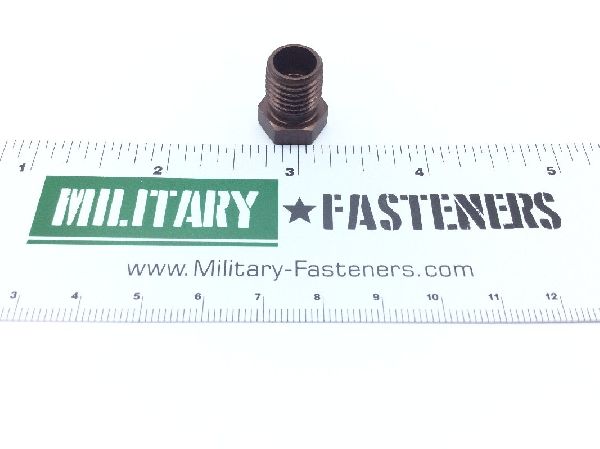

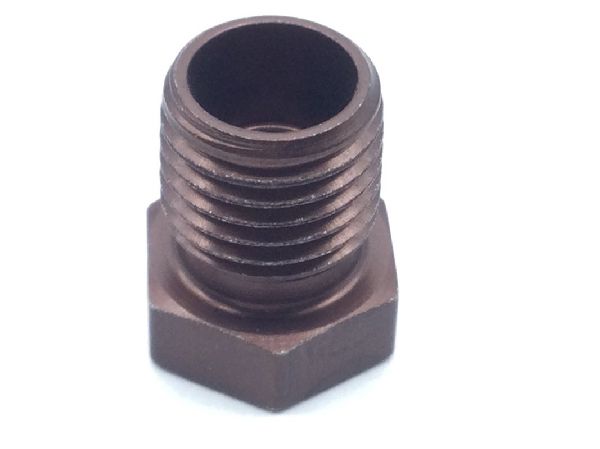

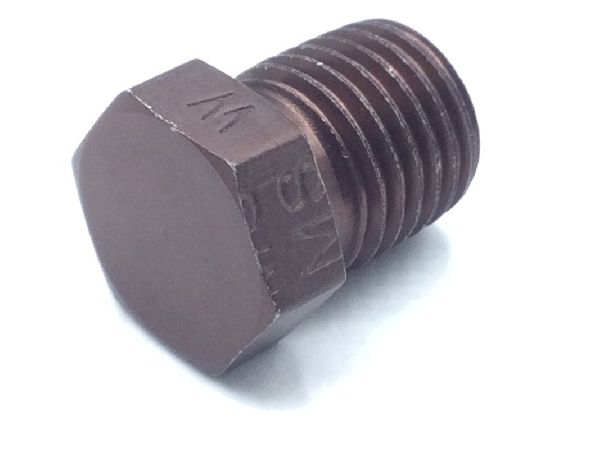

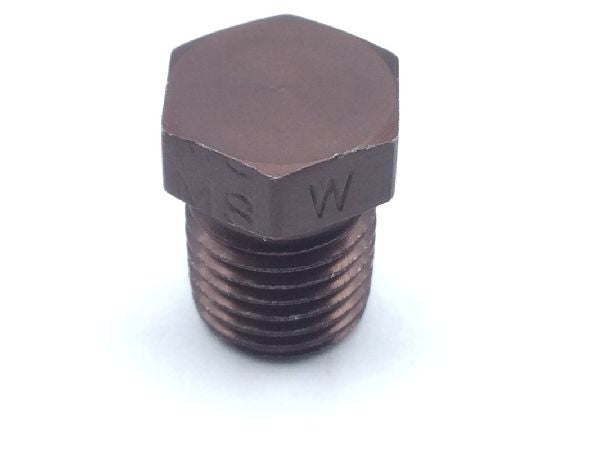

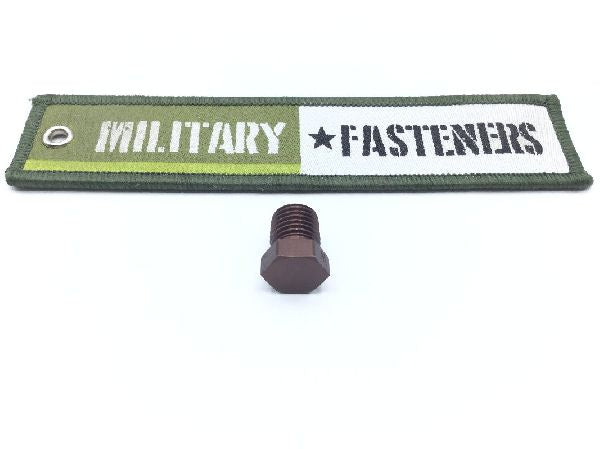

MS21913W4 Threaded Tube Fitting Plug

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075

Overall Length

0.641 inches

Surface Treatment

Class 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3a external

Thread Size

0.438 inches external

Connection Style: Flareless
Head Height: 0.210 inches
Iii End Application: Mrap buffalo mk2a2
Material Specification: T73 federal specification single material response qq-a-225/9
Maximum Operating Pressure: 3000.0 pounds per square inch
Maximum Operating Temp: 275.0 degrees fahrenheit
Media For Which Designed: Hydrocarbon and hydraulic fluid fuel/oil
Seat Angle: 12.0 degrees
Specification Data: 96906-ms21913 government standard
Style Designator: tube fitting flareless (note: drilled hole is optional should not be considered as a separating characteristic) plug
Thread Direction: Right-hand external
Thread Series Designator: Unjf (fine thread with external controlled root radius) external
