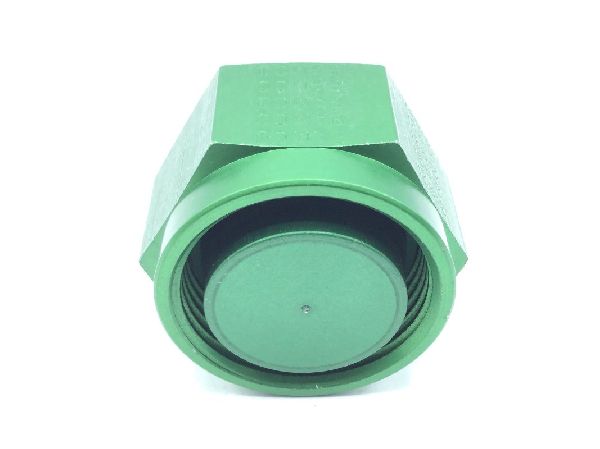

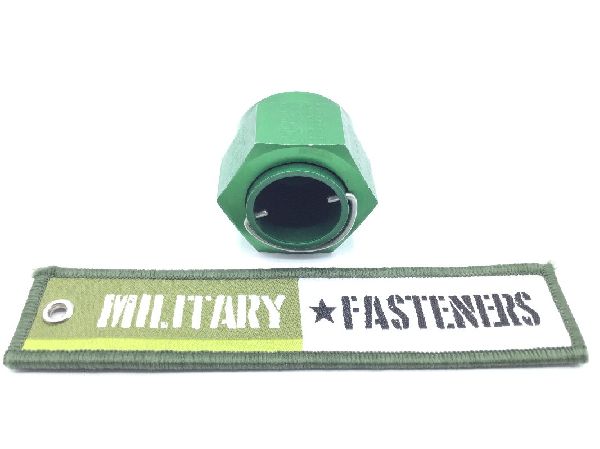

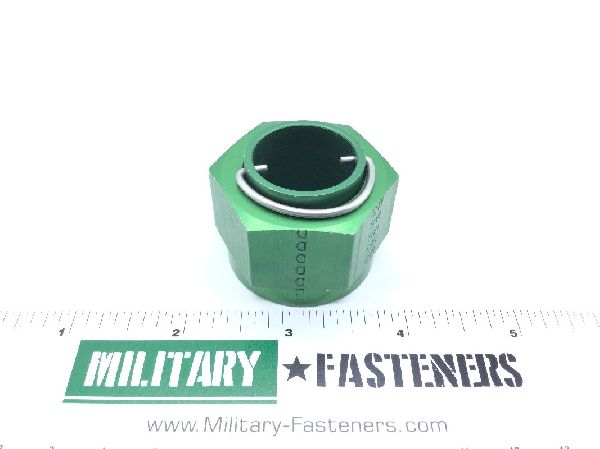

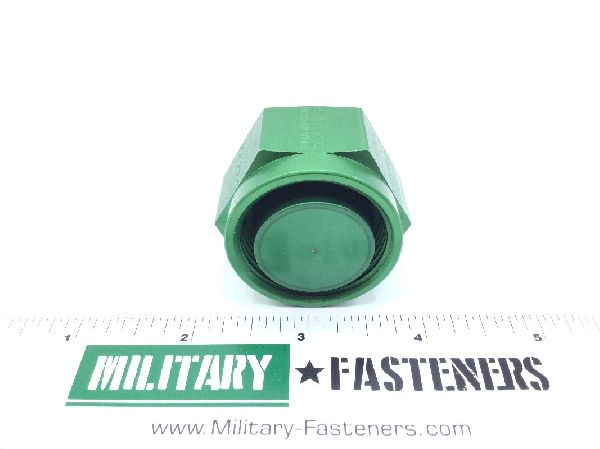

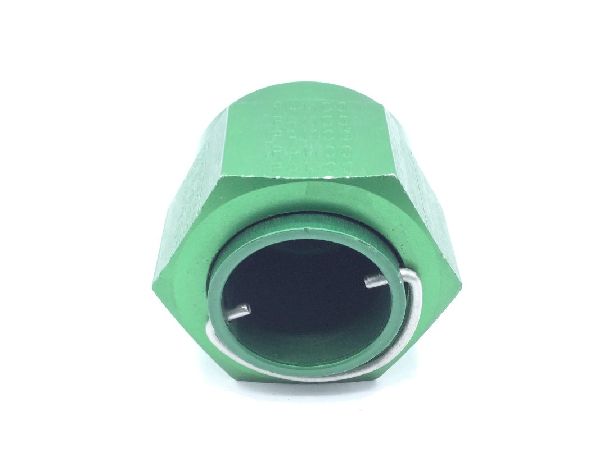

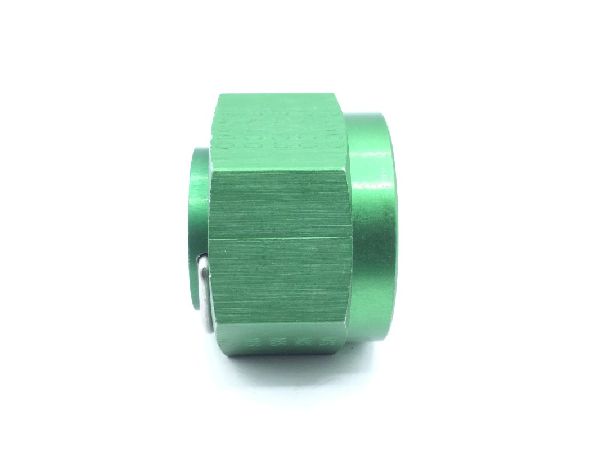

MS21914-16D Tube Cap

MS21914-16D Tube Cap (2)

MS21914-16D Tube Cap (3)

MS21914-16D Tube Cap (4)

MS21914-16D Tube Cap (5)

MS21914-16D Tube Cap (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21914-16D Tube Cap

Product Series: MS
ECCN: EAR99
Schedule: 7609.00.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Aluminum alloy 2024

Surface Treatment

Cl 1 military specification single treatment response type 2 mil-a-8625

Thread Class

3b internal

Thread Size

1.312 inches internal

Connection Style: Pressure seal flareless
End Application: Aircraft fluid systems
Material Specification: T6 federal specification single material response qq-a-225/6
Seat Radius: 0.0225 inches
Specification Data: 81343-as21914 professional/industrial association standard
Style Designator: Flareless tube cap
Thread Direction: Right-hand internal
Thread Qty Per Inch (tpi): 12 internal
Thread Series Designator: Unj internal
Tube Outside Diameter For Which Designed: 1.000 inches
