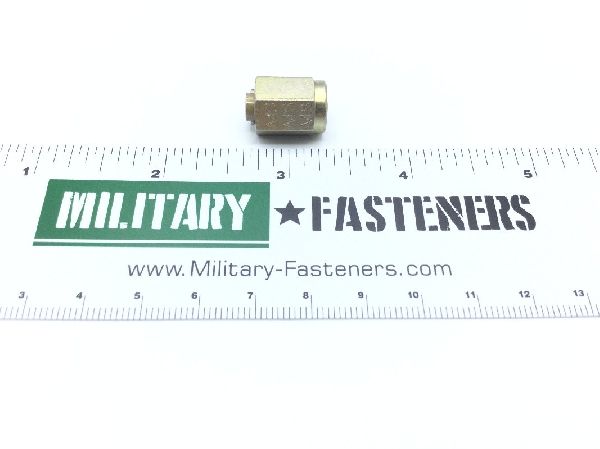

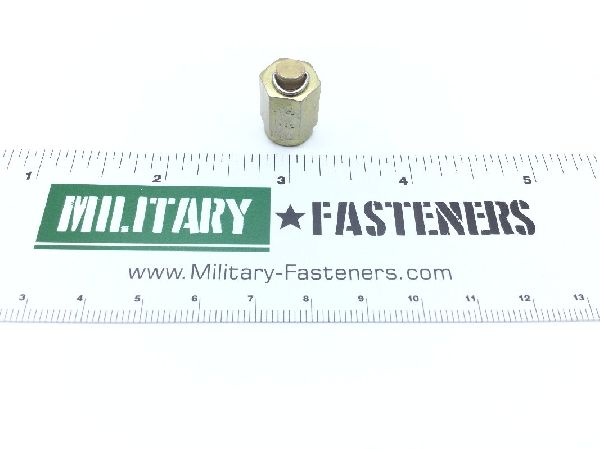

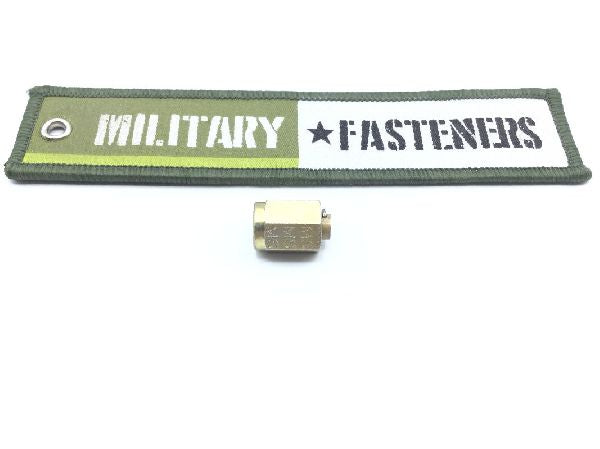

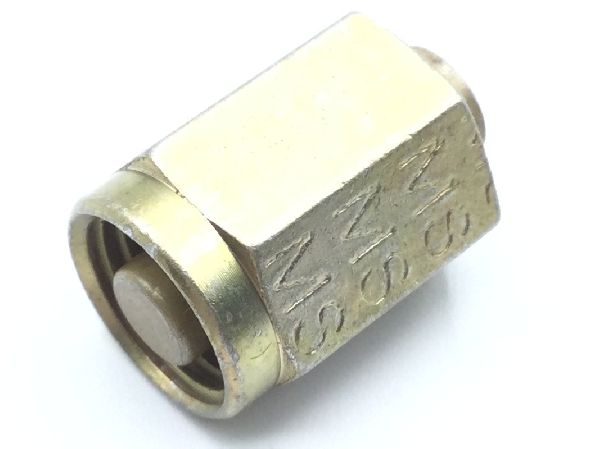

MS21914-3 Tube Cap

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 1213

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b internal

Thread Size

0.375 inches internal

Connection Style: Pressure seal flareless
End Application: Grumman aerospace inc supports a10 aircraft
Material Specification: Qq-s-637 federal specification single material response
Seat Radius: 0.0225 inches
Specification Data: 81343 - as21914 professional/industrial association specification
Style Designator: flareless tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.188 inches
