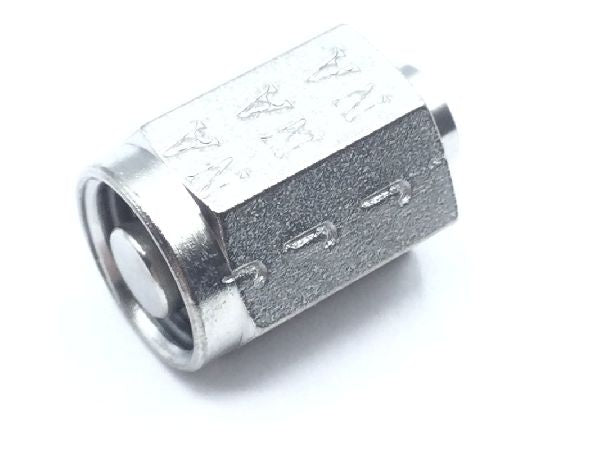

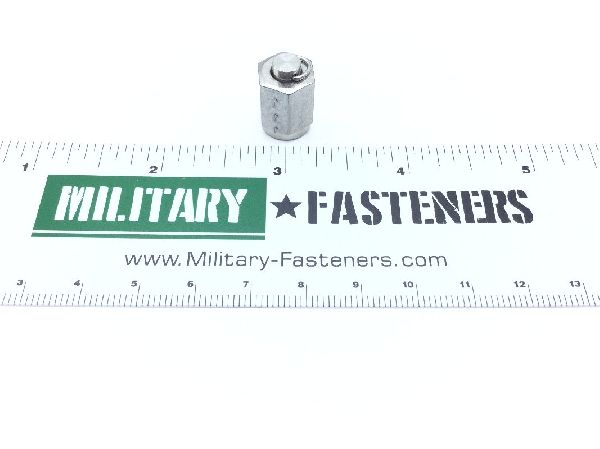

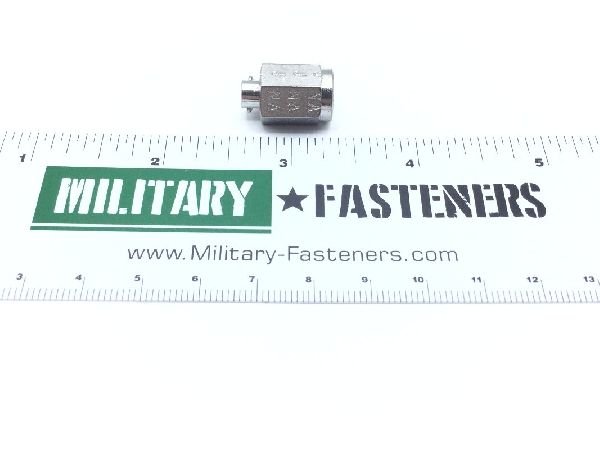

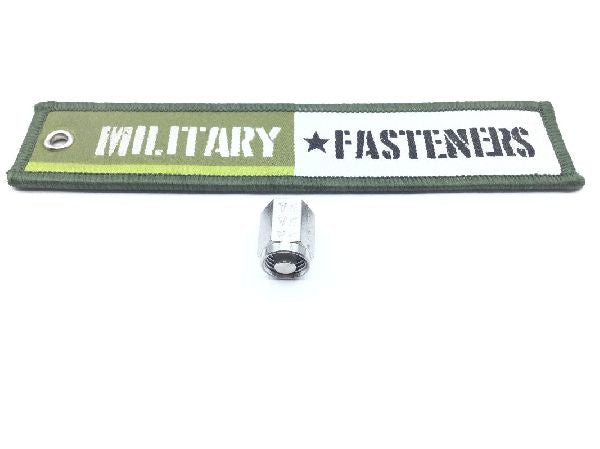

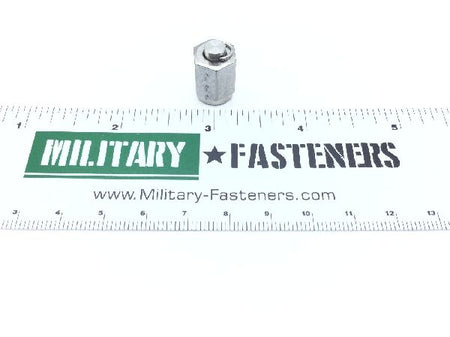

MS21914-3J Tube Cap

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 1141 cap

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response cap

Thread Class

3b internal

Thread Size

0.375 inches internal

Connection Style: Pressure seal flareless
Material Specification: Qq-s-637 federal specification single material response cap
Seat Angle: 12.0 degrees
Style Designator: flareless tube cap
Thread Direction: Right-hand internal
Thread Qty Per Inch (tpi): 2 internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.188 inches
