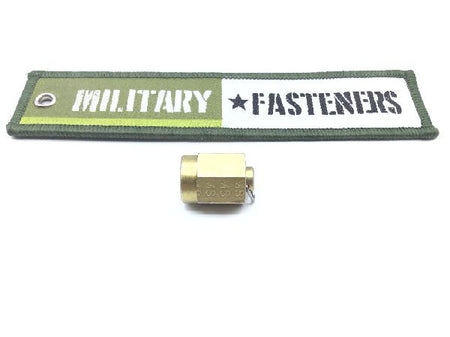

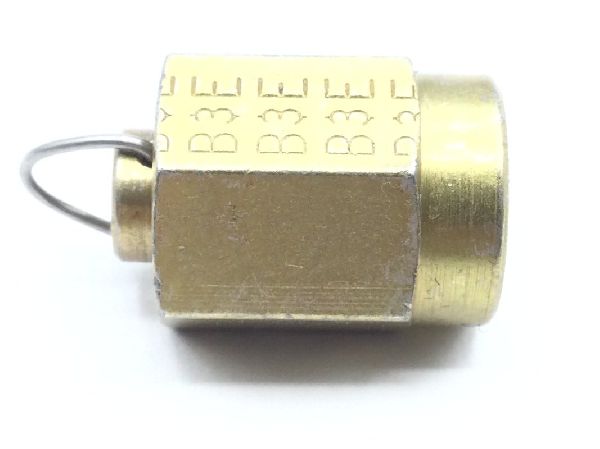

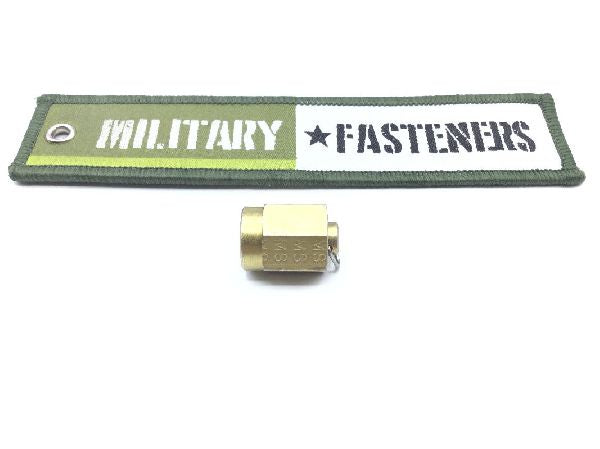

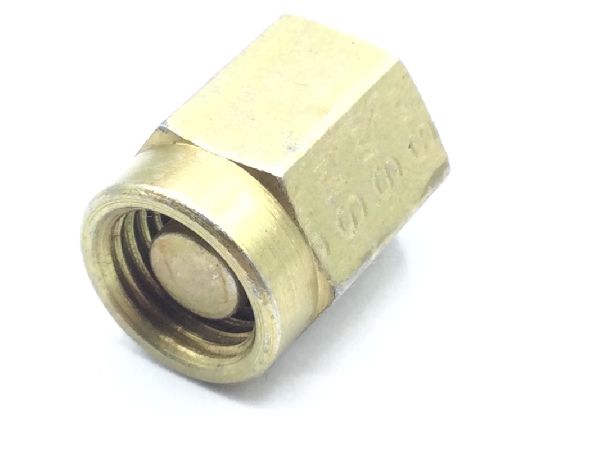

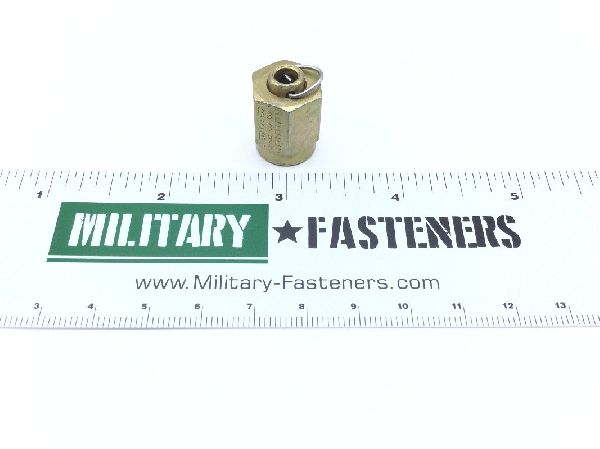

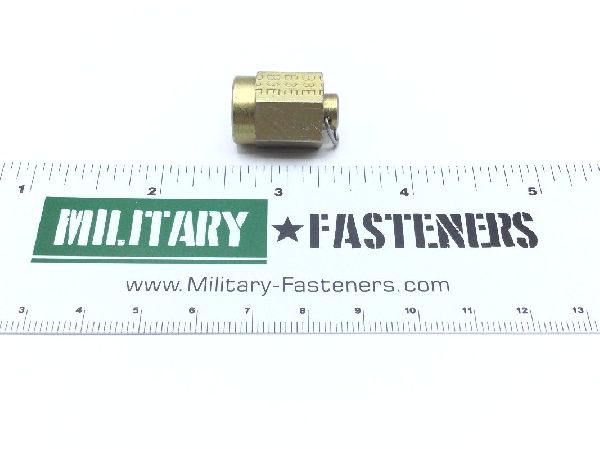

MS21914-4 Tube Cap

Product Series: MS
ECCN: EAR99
Schedule: 7609.00.0000

Price per Unit $73.50

Units per Pack 1

Price per Pack $73.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $73.50

Add item to quote

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b internal

Thread Size

0.438 inches internal

Connection Style: Pressure seal flareless
End Application: Model ch-47 used on boeing vertol cargo transport helicopter aircraft application
Material Specification: Qq-s-637 federal specification single material response or astm a576-67t assn standard single material response or mil-s-6758 military specification single material response
Seat Radius: 0.062 inches
Special Features: A-10 aircraft model grumman aircraft corp
Specification Data: 96906-ms21914 government standard
Style Designator: flareless tube cap
Thread Direction: Right-hand internal
Thread Qty Per Inch (tpi): 20 external
Thread Series Designator: Unjf (fine thread with external controlled root radius) external
Tube Outside Diameter For Which Designed: 0.250 inches
