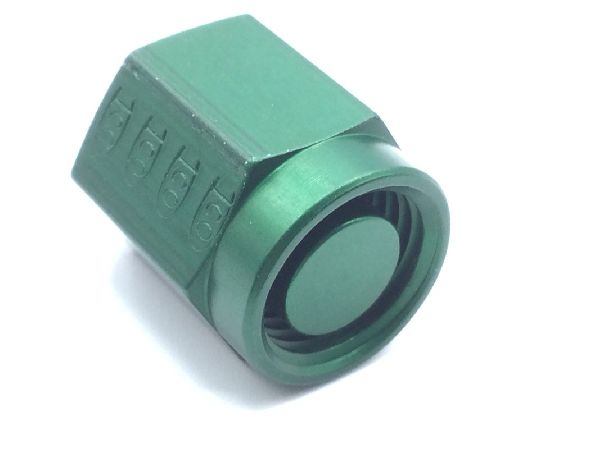

MS21914-6D Tube Cap

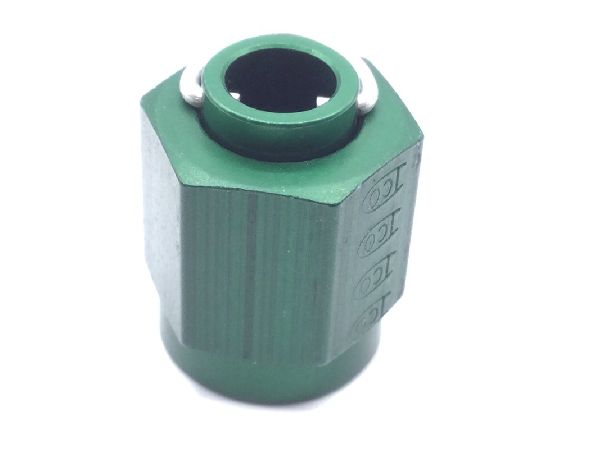

MS21914-6D Tube Cap (2)

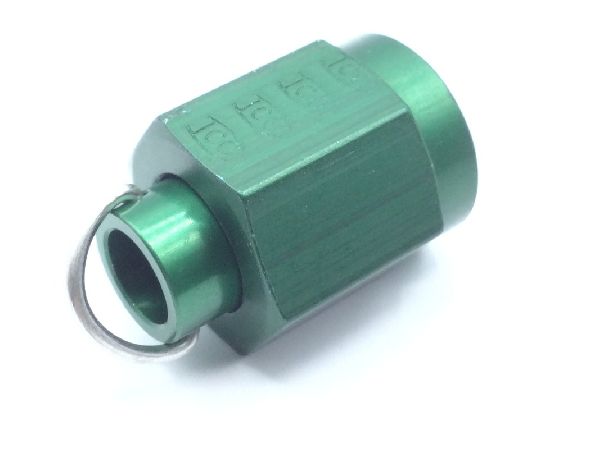

MS21914-6D Tube Cap (3)

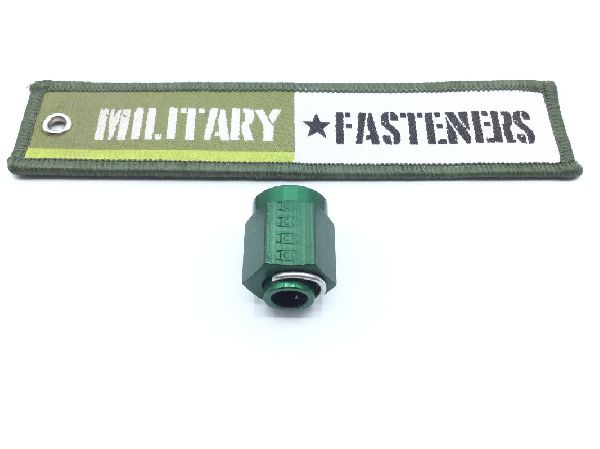

MS21914-6D Tube Cap (4)

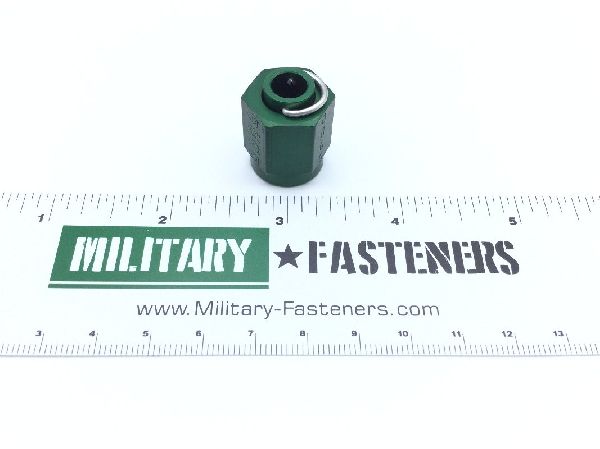

MS21914-6D Tube Cap (5)

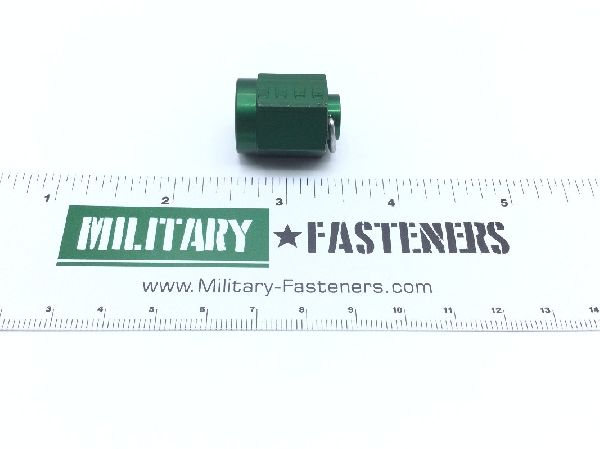

MS21914-6D Tube Cap (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21914-6D Tube Cap

Product Series: MS
ECCN: EAR99
Schedule: 7609.00.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Aluminum alloy 2024 or aluminum alloy 7075

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3b internal

Thread Size

0.562 inches internal

Connection Style: Pressure seal flareless
Seat Radius: 0.0225 inches
Specification Data: 96906-ms21914 government standard
Style Designator: flareless tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.375 inches
