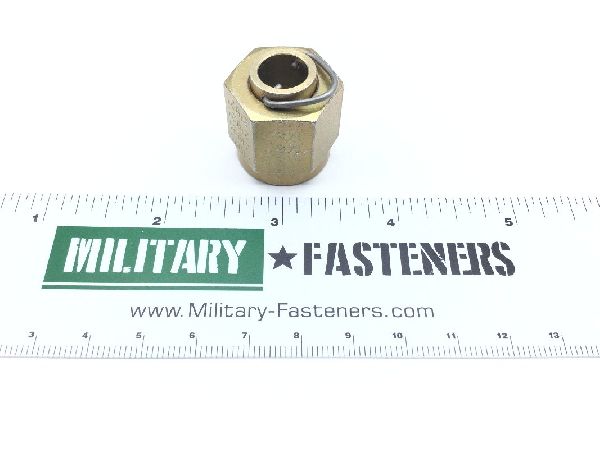

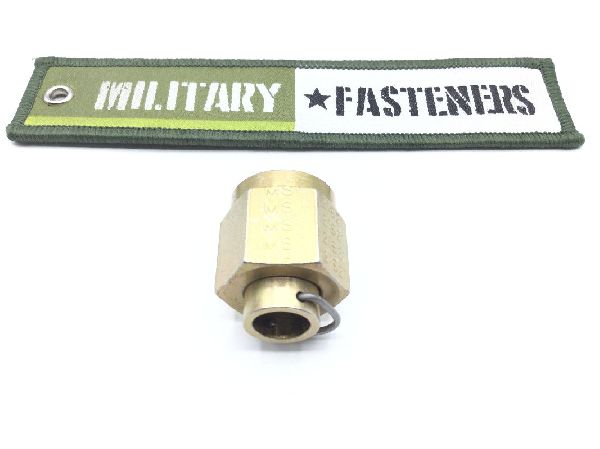

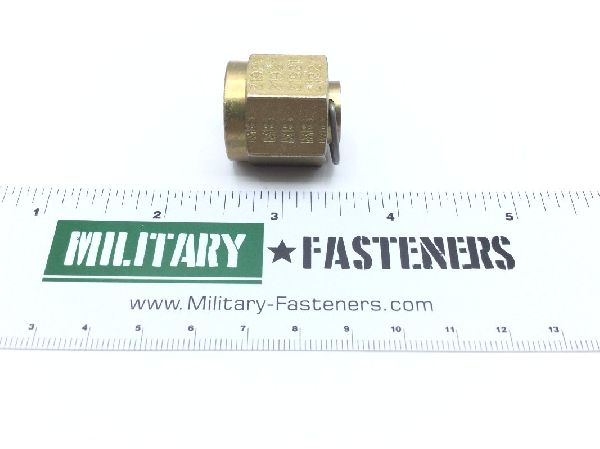

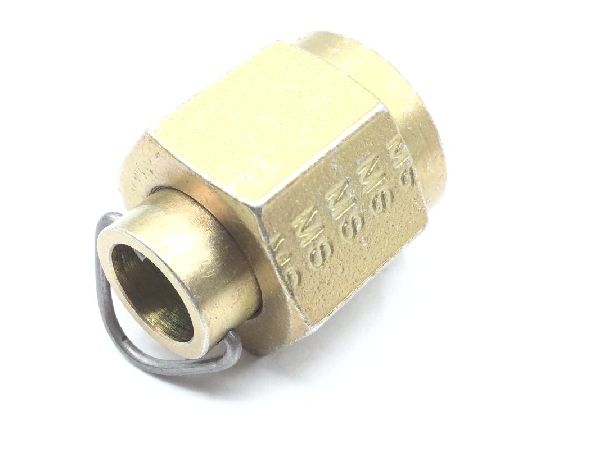

MS21914-8 Tube Cap

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 1213

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b internal

Thread Size

0.750 inches internal

Connection Style: Pressure seal flareless
Criticality Code Justification: Feat
End Application: F-16 grumman aerospace inc supports a10 aircraft;aircraft
Material Specification: Qq-s-637 federal specification single material response
Seat Radius: 0.0225 inches
Special Features: With holding device;weapon system essential
Specification Data: 96906-ms21914 government standard
Style Designator: flareless tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.500 inches
