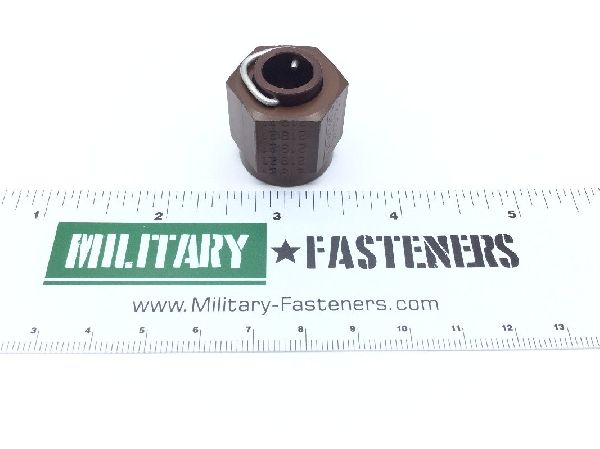

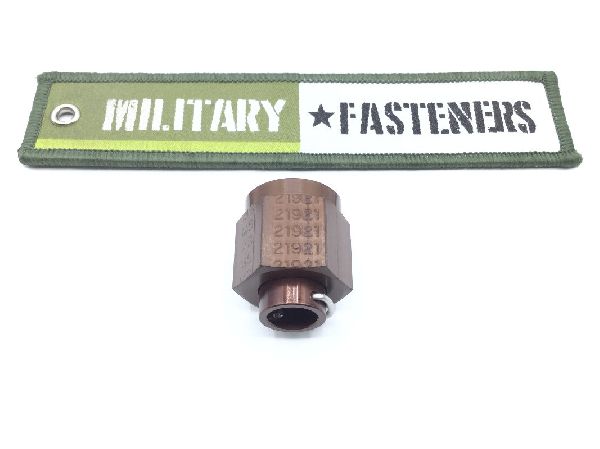

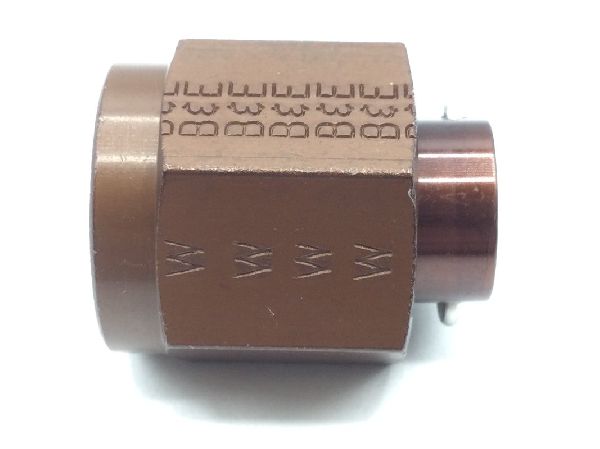

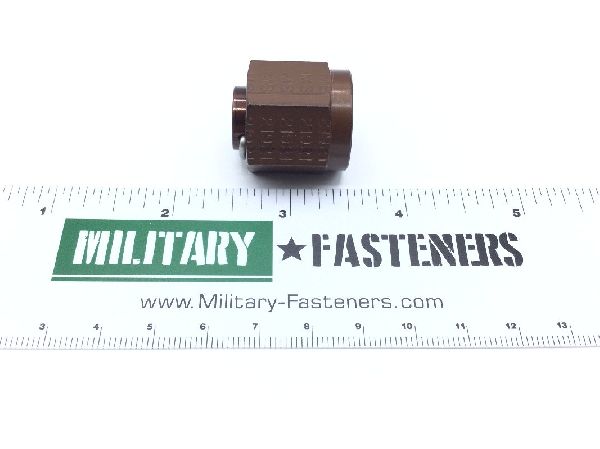

MS21914-8W Tube Cap

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $41.95

Units per Pack 2

Price per Pack $83.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $83.90

Add item to quote

Material

Aluminum alloy 7075 or aluminum alloy 2024

Surface Treatment

Cl 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3b internal

Thread Size

0.750 inches internal

Connection Style: Pressure seal flareless
Iii End Application: Mrap buffalo mk2a2
Material Specification: T6 federal specification 2nd material response t73 federal specification single material response or qq-a-225/6 qq-a-225/9
Seat Radius: 0.0225 inches
Specification Data: 96906-ms21914 government standard
Style Designator: flareless tube cap
Thread Direction: Right-hand internal
Thread Qty Per Inch (tpi): 16 internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.500 inches
