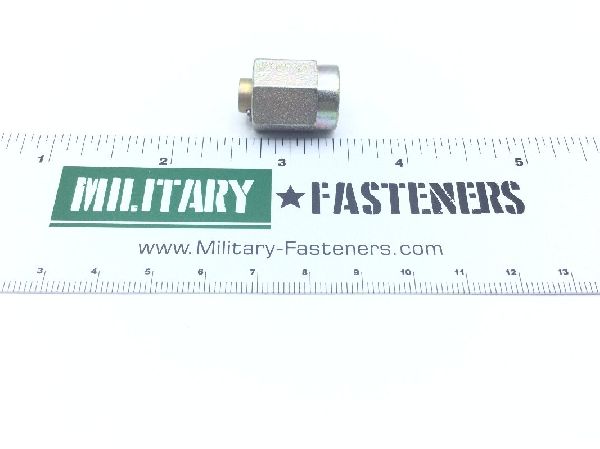

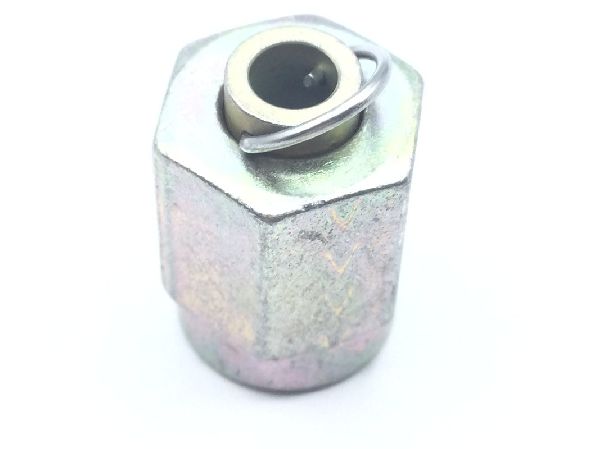

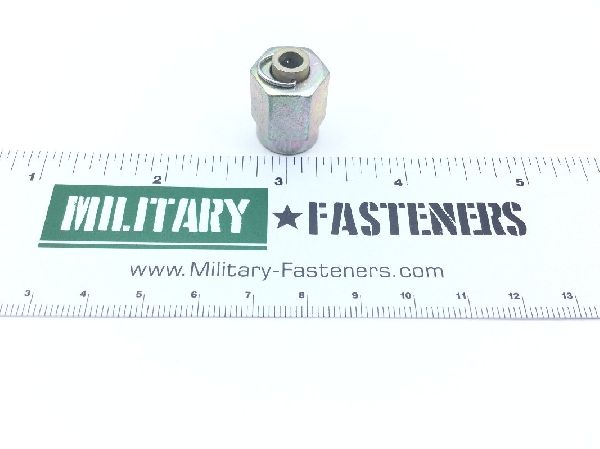

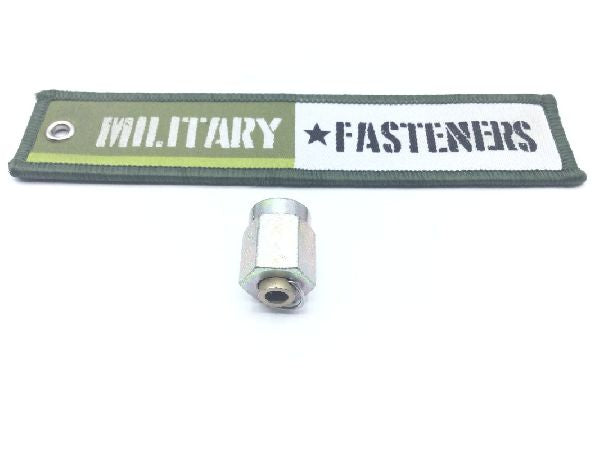

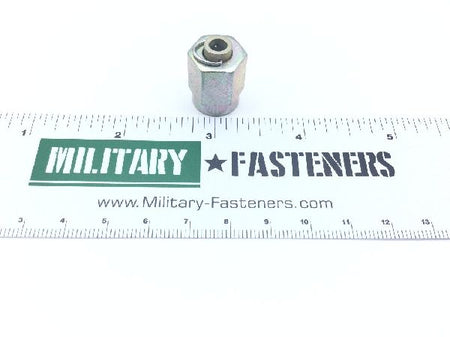

MS21914V4P Tube Cap

Product Series: MS
ECCN: EAR99
Schedule: 7609.00.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 15-5ph

Thread Class

3b internal

Thread Size

0.438 inches internal

Connection Style: Pressure seal flareless
Maximum Operating Pressure: 3000.0 pounds per square inch
Maximum Operating Temp: 225.0 degrees fahrenheit
Media For Which Designed: Hydraulic fluid
Part Name Assigned By Controlling Agency: flareless tube fitting pressure seal cap
Seat Angle: 12.0 degrees
Special Features: wire retainer; corrosion resistant steel with cadmium plating nut cap assembly - plug
Specification Data: 81343-as21914 professional/industrial association standard
Style Designator: flareless tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.250 inches
