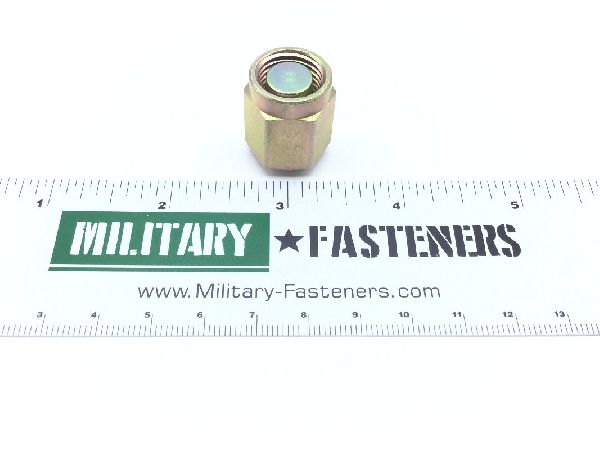

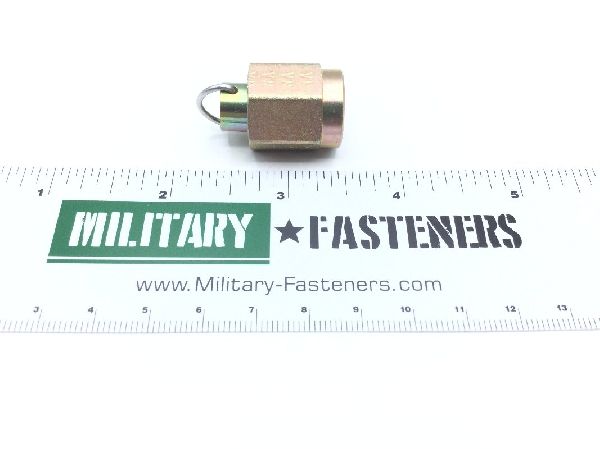

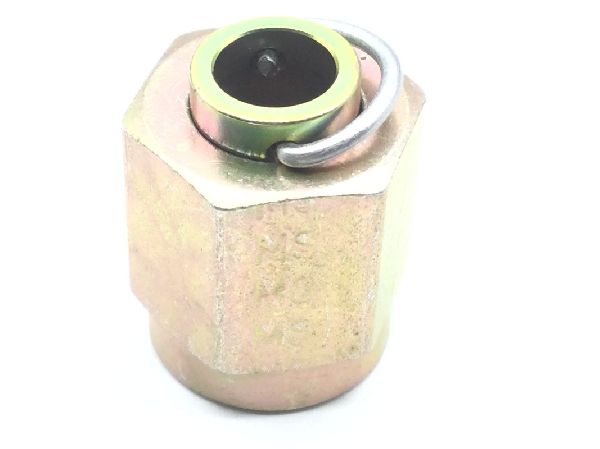

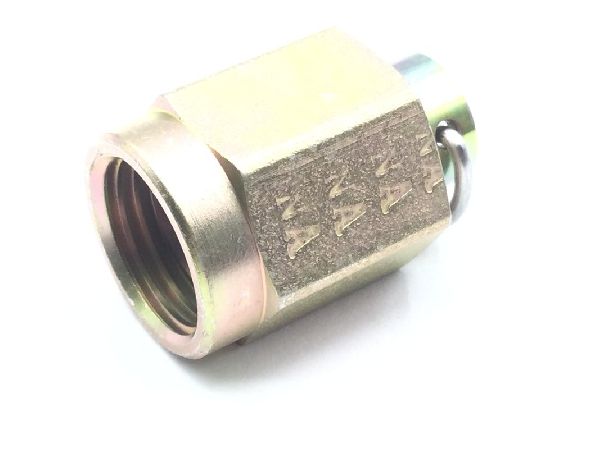

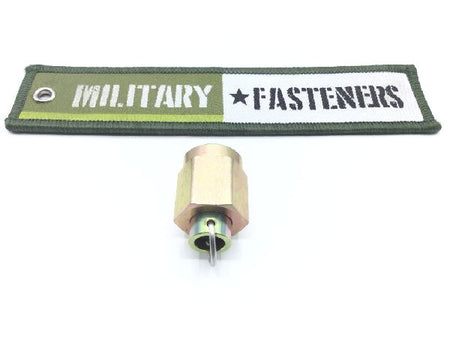

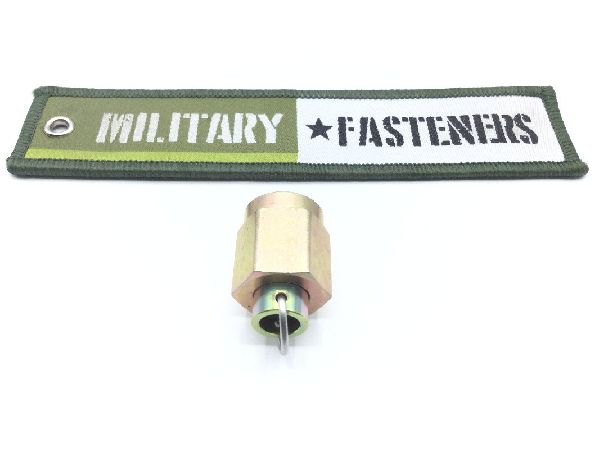

MS21914V6P Tube Cap

MS21914V6P Tube Cap (2)

MS21914V6P Tube Cap (3)

MS21914V6P Tube Cap (4)

MS21914V6P Tube Cap (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21914V6P Tube Cap

Product Series: MS
ECCN: EAR99
Schedule: 7609.00.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 15-5ph

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b internal

Thread Size

0.562 inches internal

Connection Style: Pressure seal flareless
Iii End Application: Used on m60a1 tank bridge launc (coarse thread)her; mrap buffalo mk2a2
Seat Radius: 0.022 inches
Style Designator: flareless tube cap
Thread Direction: Right-hand internal
Thread Series Designator: Unjf (fine thread with external controlled root radius) internal
Tube Outside Diameter For Which Designed: 0.375 inches
