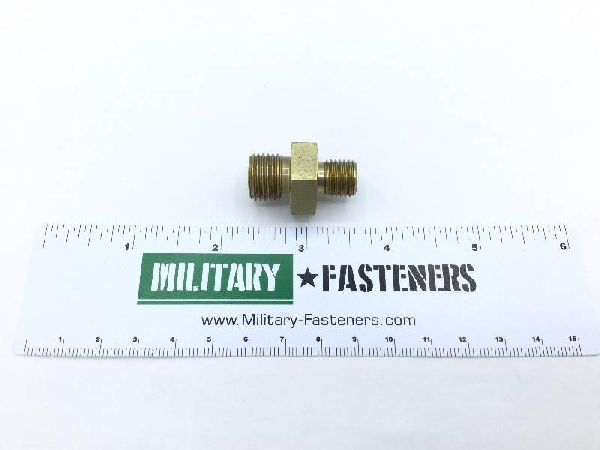

MS21916-6-4 Boss Reducer

Product Series: MS
ECCN: EAR99

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3a all ends

Thread Size

0.562 inches 1st end

Connection Style: External seat for gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
End Application: Command (aavc-7a1) grumman a10 aircraft; x2m assault amphibious vehicle
Material Specification: Qq-a-367 federal specification single material response or astm a576-677 assn standard single material response or mil-s-6758 military specification single material response
Maximum Operating Pressure: 3000 pounds per square inch single response
Maximum Operating Temp: 275 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Nominallength: 1.219 inches
Reduced Passage Inside Diameter: 0.188 inches all ends
Reducer Type: Concentric
Specification Data: 96906-ms21916 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
