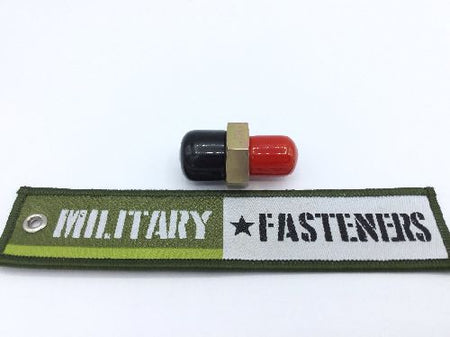

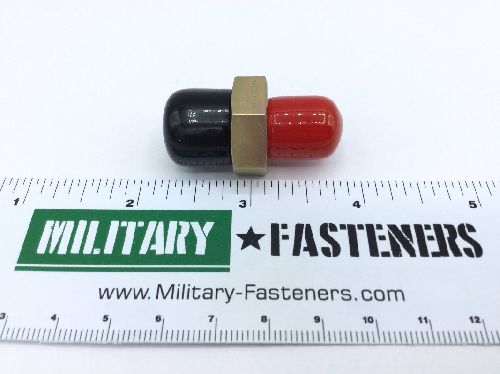

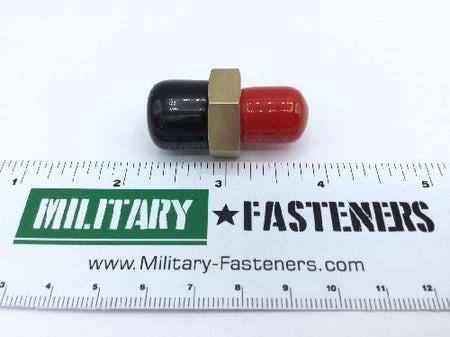

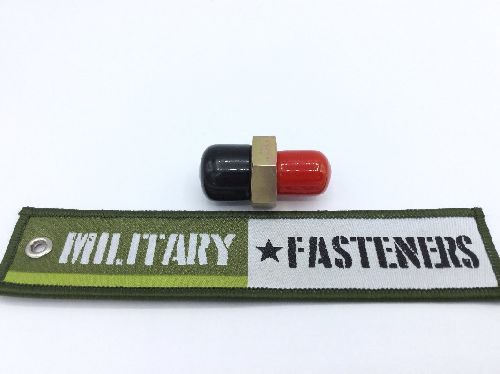

MS21916V6-4P Boss Reducer

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3a all ends

Thread Size

0.562 inches 1st end

Connection Style: External seat for gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
End Application: E-3a aircraft
Media For Which Designed: Hydraulic fluid single response
Nominallength: 1.219 inches
Outside Diameter Tube Accommodated: 0.25 inches 2nd end
Part Name Assigned By Controlling Agency: Flareless tube external thread reducer
Reducer Type: Concentric
Seat Angle: 12 degrees all ends
Special Features: Material corrosion resistant steel (15-5ph) with cadmium plating; universal ends (tube or boss)
Specification Data: 31343 - as21916 professional/industrial association standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
