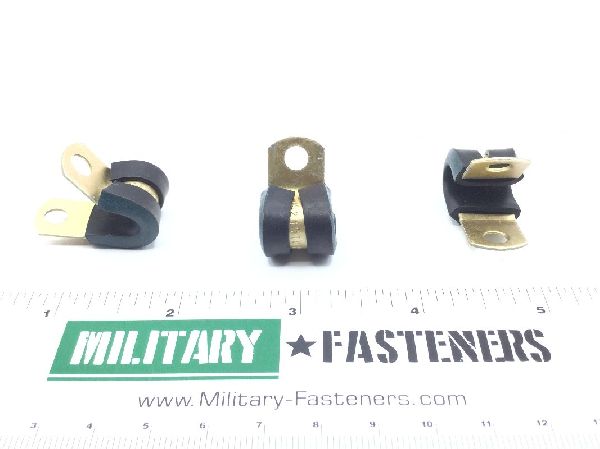

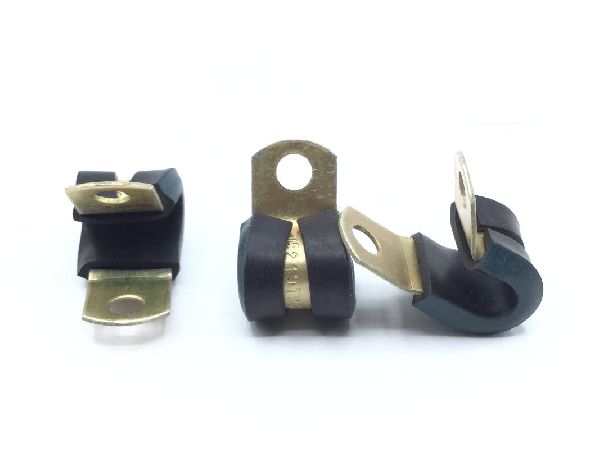

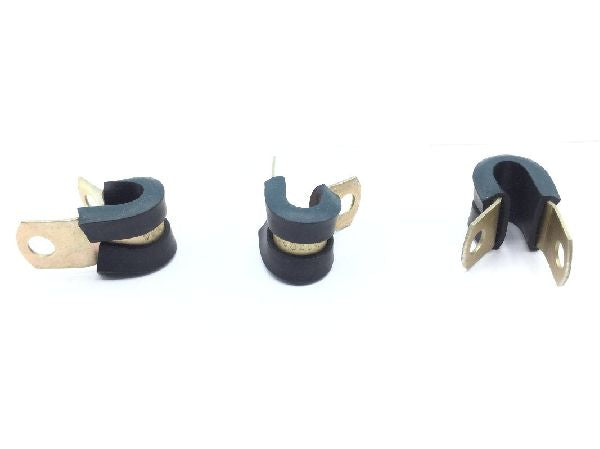

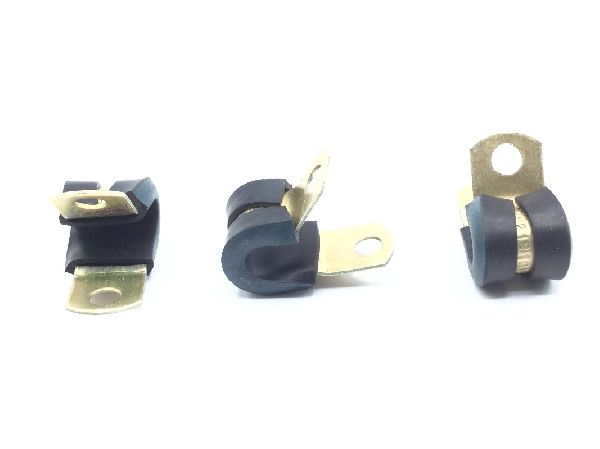

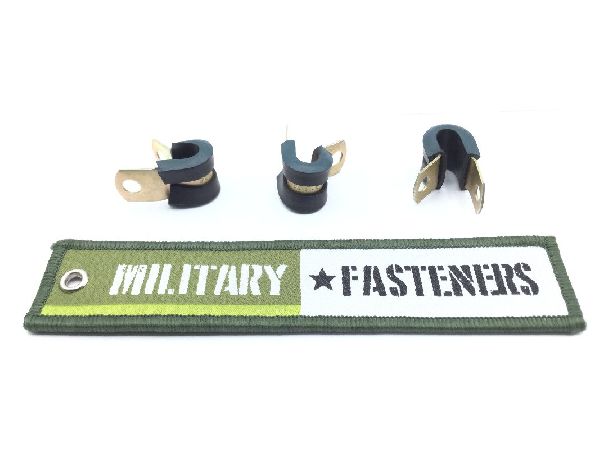

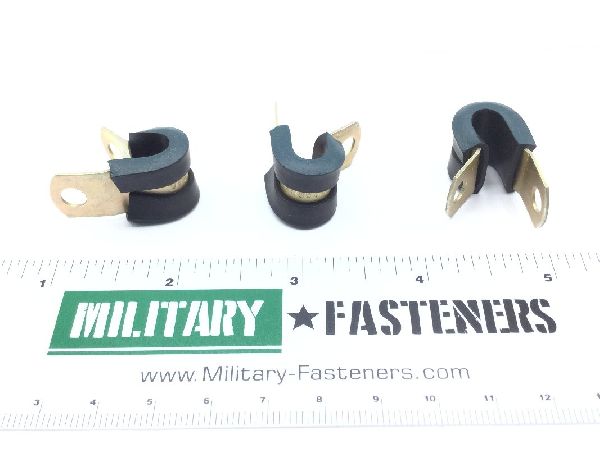

MS21919DG4 Loop Clamp
MS21919DG4 Loop Clamp (2)
MS21919DG4 Loop Clamp (3)
MS21919DG4 Loop Clamp (4)
MS21919DG4 Loop Clamp (5)
MS21919DG4 Loop Clamp (6)
MS21919DG4 Loop Clamp
MS21919DG4 Loop Clamp (2)
MS21919DG4 Loop Clamp (3)
MS21919DG4 Loop Clamp (4)
MS21919DG4 Loop Clamp (5)
MS21919DG4 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919DG4 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Aluminum alloy 2024 band
Surface Treatment
-1l-c-5541 military specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 0.514 inches and 0.544 inches
Criticality Code Justification
Feat
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
0.747 inches
End Application
Mrap rg-33 auv
Loop Inside Diameter
Between 0.235 inches and 0.265 inches
Material Specification
Qq-a-250/5 federal specification single material response band
Material Thickness
0.032 inches
Nondefinitive Specification/std Data
4 type and b class
Overall Width
Between 0.490 inches and 0.510 inches
Special Features
The item is a flight safety critical aircraft part (fscap).
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
