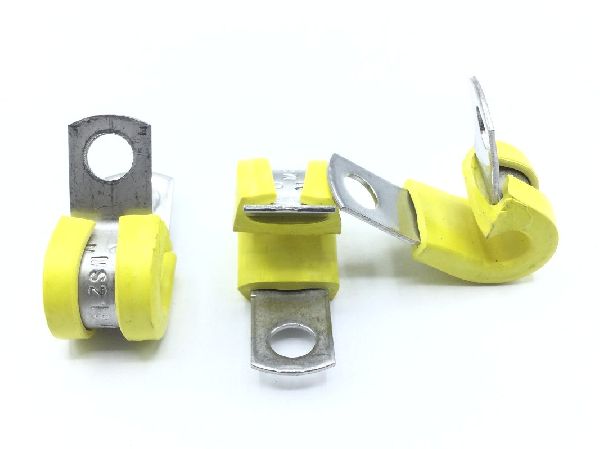

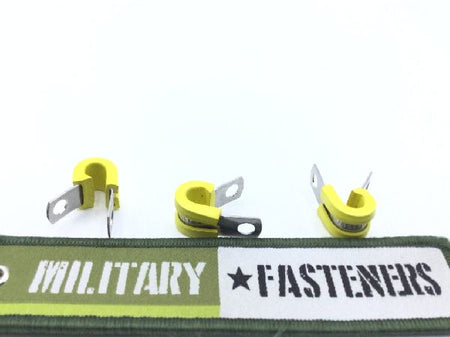

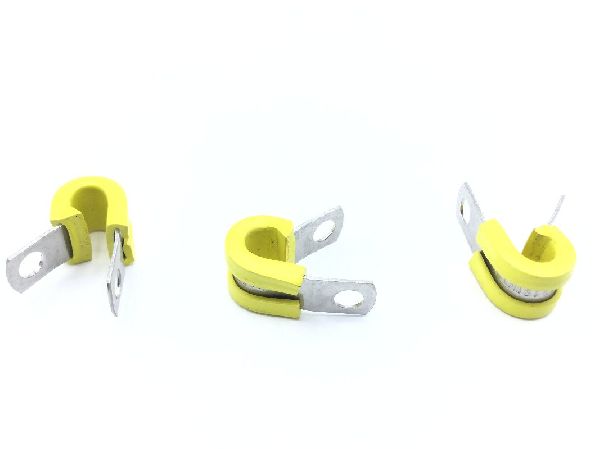

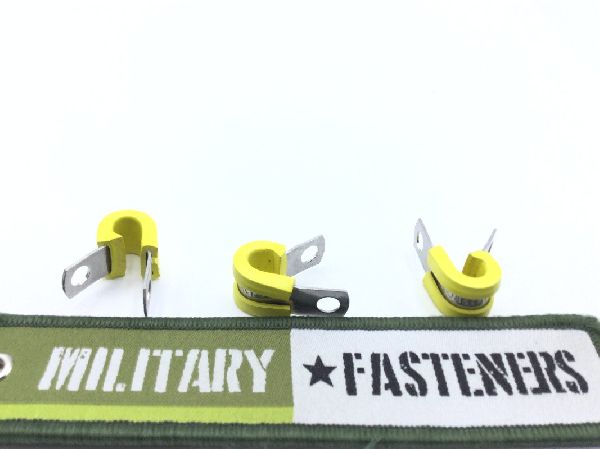

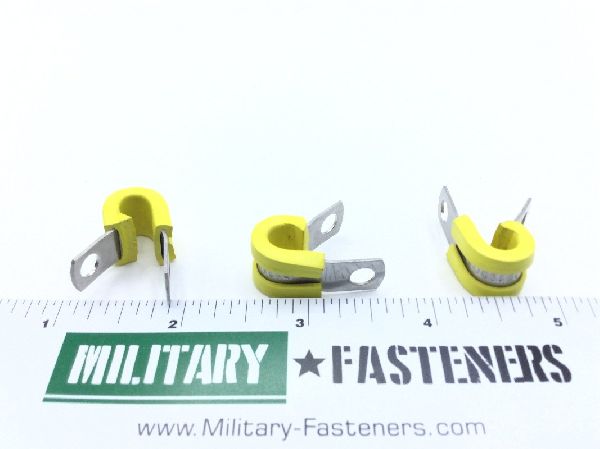

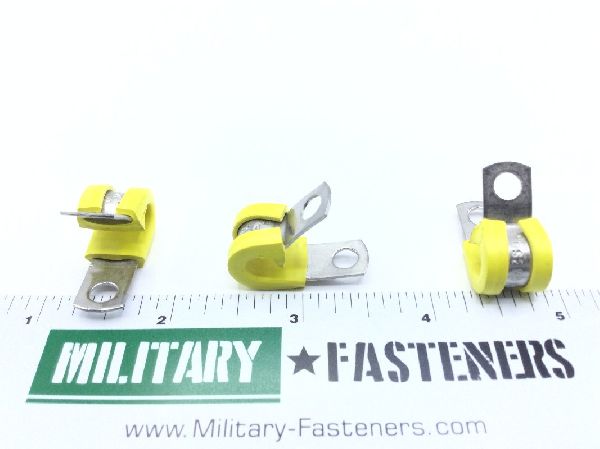

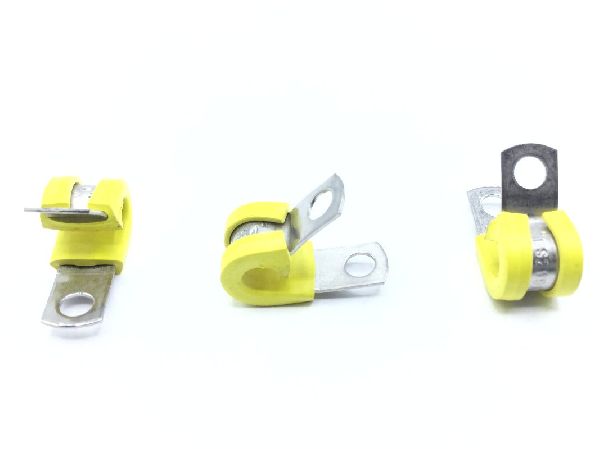

MS21919WCF4 Loop Clamp
MS21919WCF4 Loop Clamp (2)
MS21919WCF4 Loop Clamp (3)
MS21919WCF4 Loop Clamp (4)
MS21919WCF4 Loop Clamp (5)
MS21919WCF4 Loop Clamp (6)
MS21919WCF4 Loop Clamp
MS21919WCF4 Loop Clamp (2)
MS21919WCF4 Loop Clamp (3)
MS21919WCF4 Loop Clamp (4)
MS21919WCF4 Loop Clamp (5)
MS21919WCF4 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WCF4 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber butadiene-acrylonitrile class nbr cushion
Surface Treatment
Qq-p-35 federal specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 0.514 inches and 0.544 inches
Cushioning Environmental Protection
Fuel resistant
Distance From Loop Center To Tongue End
0.717 inches
Loop Inside Diameter
Between 0.235 inches and 0.265 inches
Material Specification
Mil-s-6721 military specification single material response band
Material Thickness
0.032 inches
Overall Width
Between 0.365 inches and 0.385 inches
Special Features
Cushion color yellow
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
Between 0.199 inches and 0.209 inches
