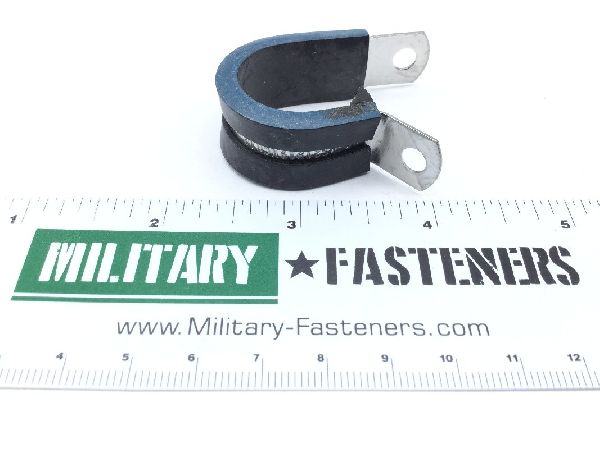

MS21919WCG12 Loop Clamp

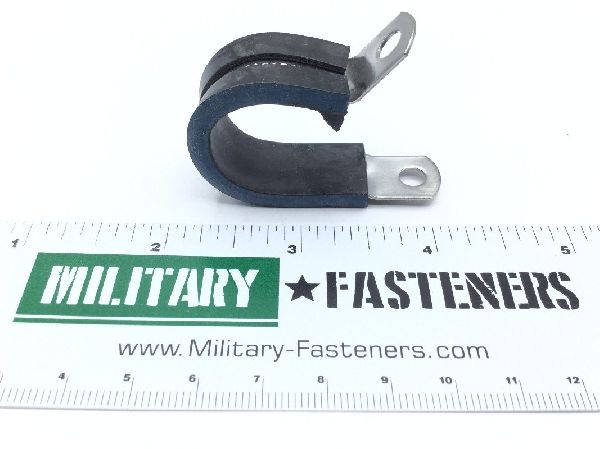

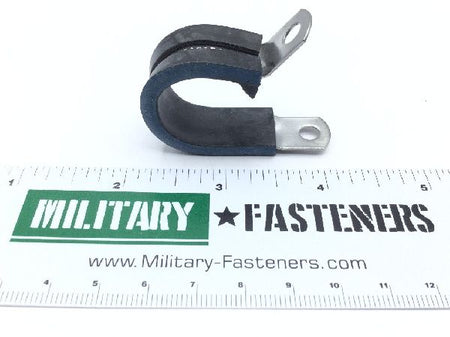

MS21919WCG12 Loop Clamp (2)

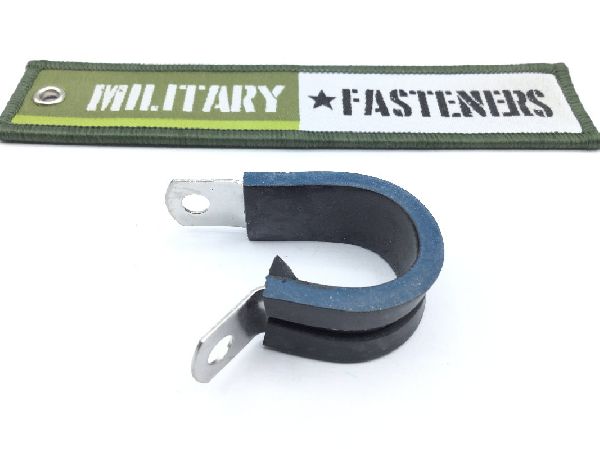

MS21919WCG12 Loop Clamp (3)

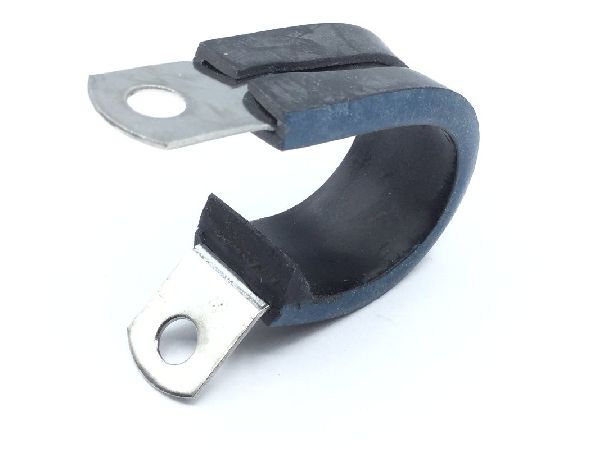

MS21919WCG12 Loop Clamp (4)

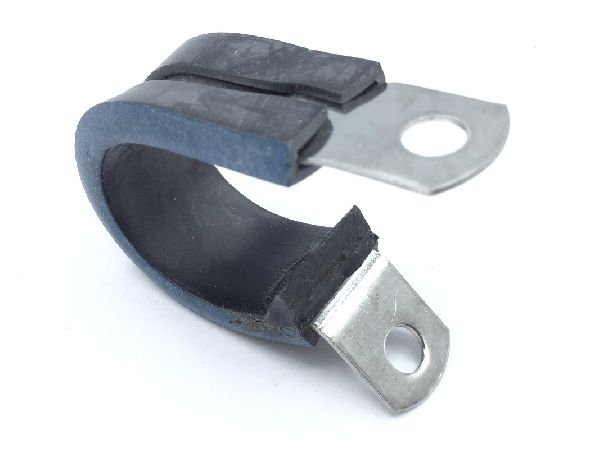

MS21919WCG12 Loop Clamp (5)

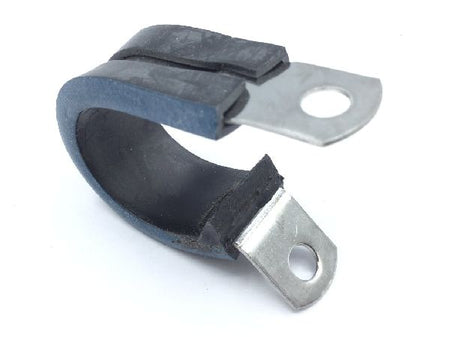

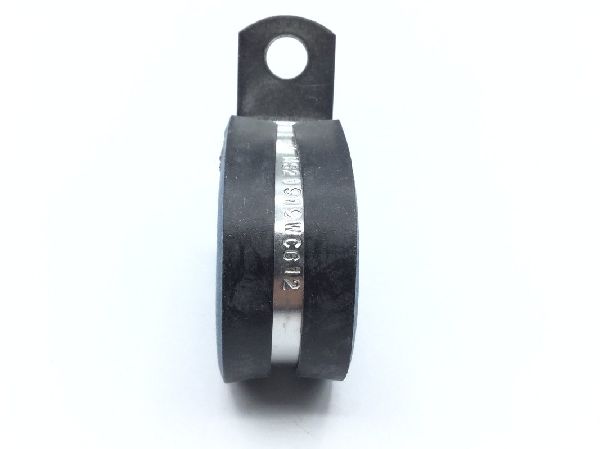

MS21919WCG12 Loop Clamp (6)
MS21919WCG12 Loop Clamp
MS21919WCG12 Loop Clamp (2)
MS21919WCG12 Loop Clamp (3)
MS21919WCG12 Loop Clamp (4)
MS21919WCG12 Loop Clamp (5)
MS21919WCG12 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

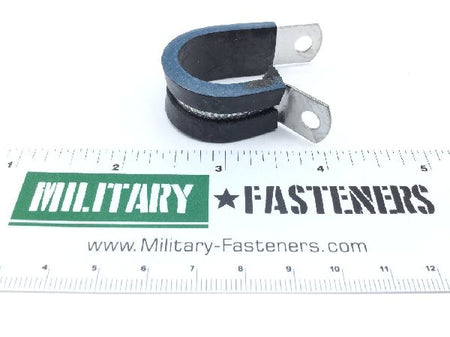

MS21919WCG12 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber chloroprene class cr cushion
Surface Treatment
Qq-p-35 federal specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 0.827 inches and 0.857 inches
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
1.060 inches
Loop Inside Diameter
Between 0.735 inches and 0.765 inches
Material Specification
Ams 5510 assn standard single material response band
Material Thickness
0.032 inches
Overall Width
Between 0.490 inches and 0.510 inches
Special Features
Cushion ozone resistant
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
Between 0.199 inches and 0.209 inches
