Home » MS21919WCG5 Loop Clamp

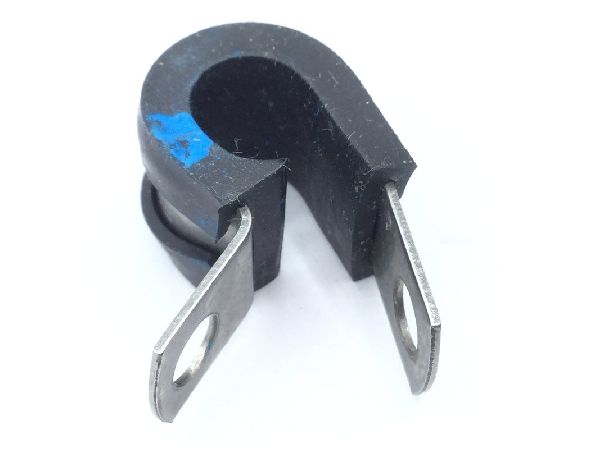

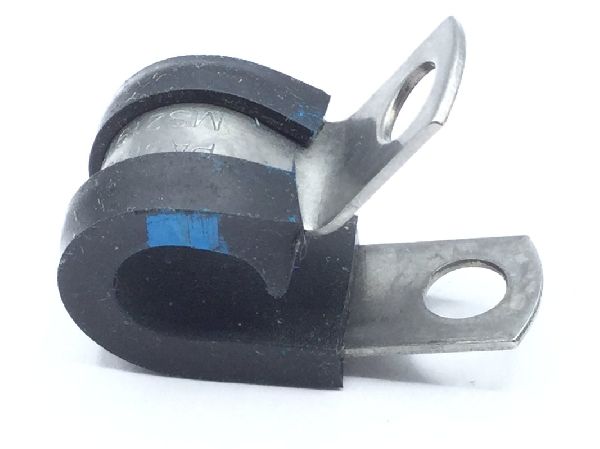

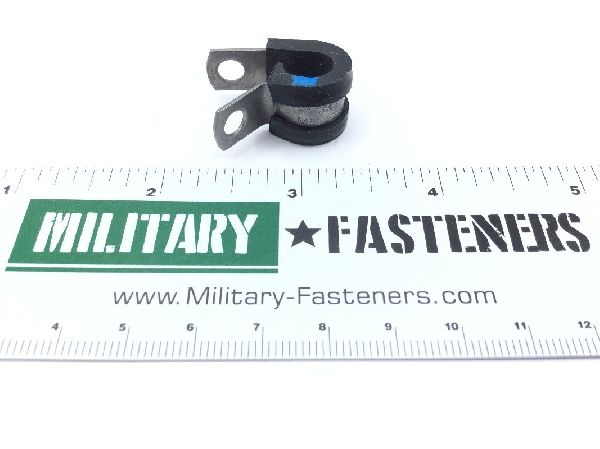

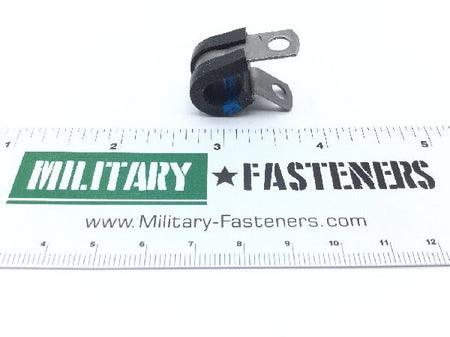

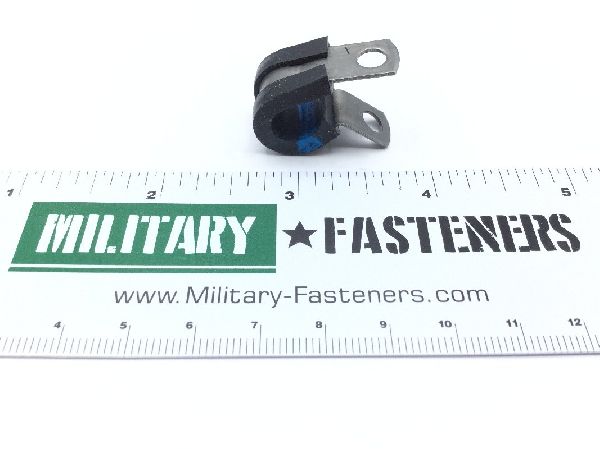

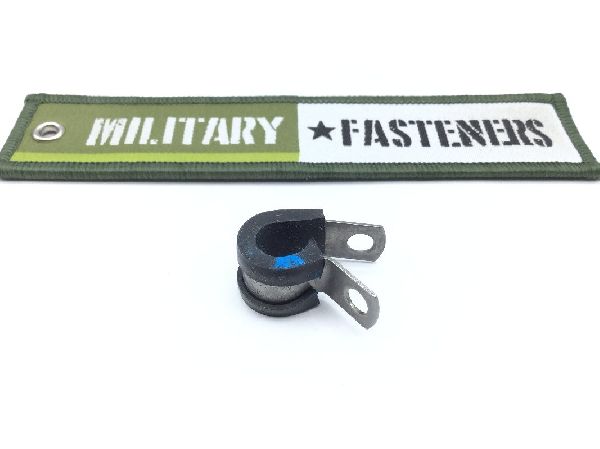

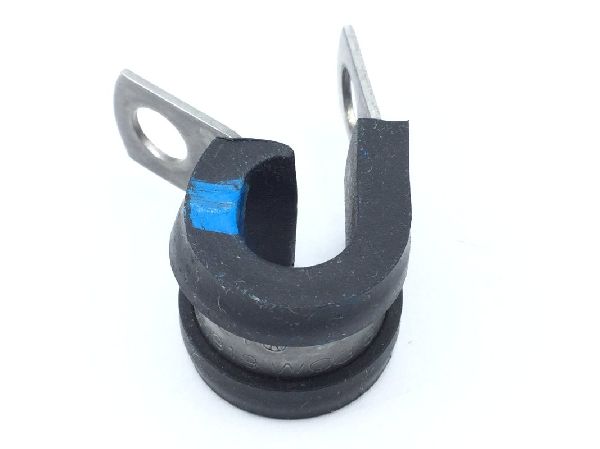

MS21919WCG5 Loop Clamp
MS21919WCG5 Loop Clamp (2)
MS21919WCG5 Loop Clamp (3)
MS21919WCG5 Loop Clamp (4)
MS21919WCG5 Loop Clamp (5)
MS21919WCG5 Loop Clamp (6)
MS21919WCG5 Loop Clamp
MS21919WCG5 Loop Clamp (2)
MS21919WCG5 Loop Clamp (3)
MS21919WCG5 Loop Clamp (4)
MS21919WCG5 Loop Clamp (5)
MS21919WCG5 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WCG5 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Price per Unit $3.89
Units per Pack 10
Price per Pack $38.90
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $38.90
Add item to quote
Material
Rubber chloroprene class cr cushion
Surface Treatment
Qq-p-35 federal specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 0.545 inches and 0.575 inches
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
0.748 inches
Loop Inside Diameter
Between 0.298 inches and 0.328 inches
Material Specification
Ams 3209 assn standard single material response cushion
Material Thickness
0.032 inches
Overall Width
0.375 inches
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
Between 0.199 inches and 0.209 inches
