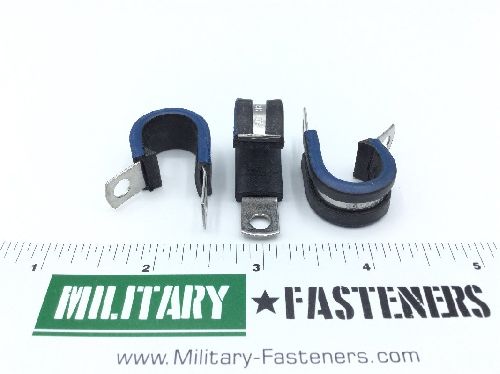

MS21919WCG8 Loop Clamp
MS21919WCG8 Loop Clamp (2)

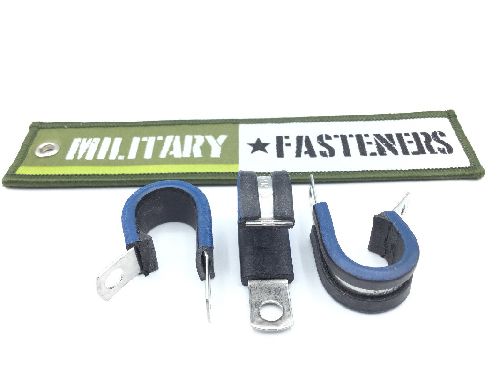

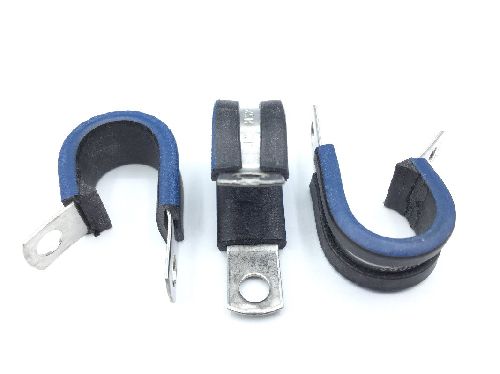

MS21919WCG8 Loop Clamp (3)

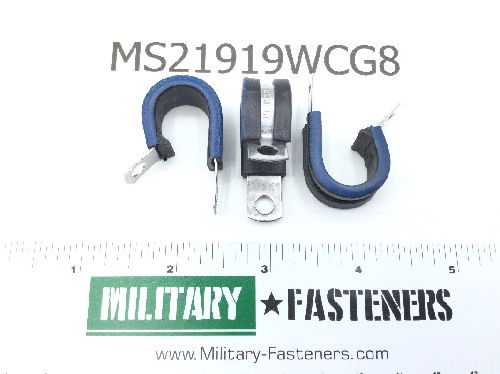

MS21919WCG8 Loop Clamp (4)

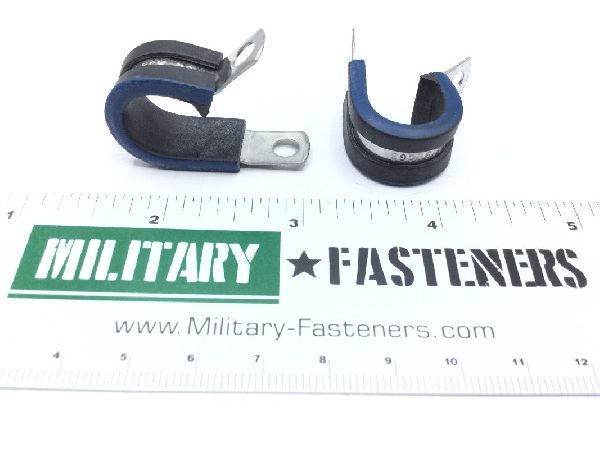

MS21919WCG8 Loop Clamp (5)

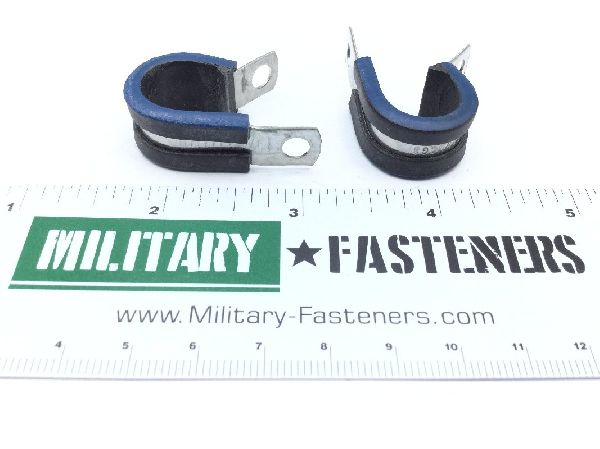

MS21919WCG8 Loop Clamp (6)

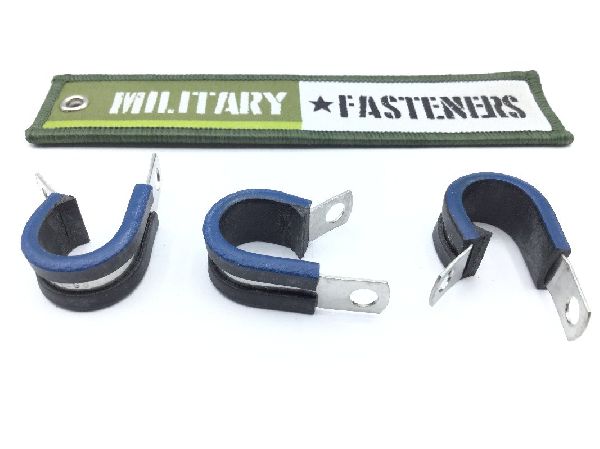

MS21919WCG8 Loop Clamp (7)

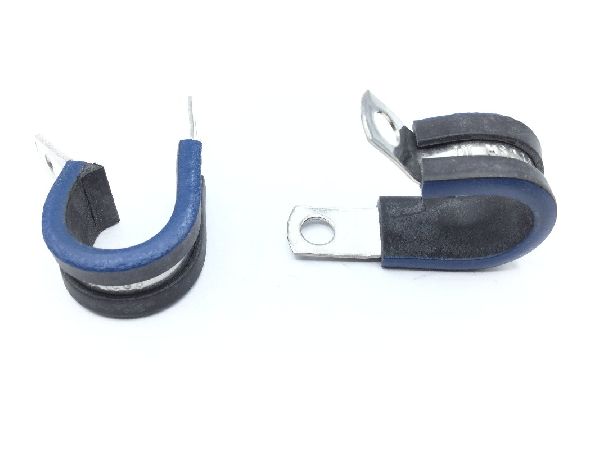

MS21919WCG8 Loop Clamp (8)
MS21919WCG8 Loop Clamp (9)

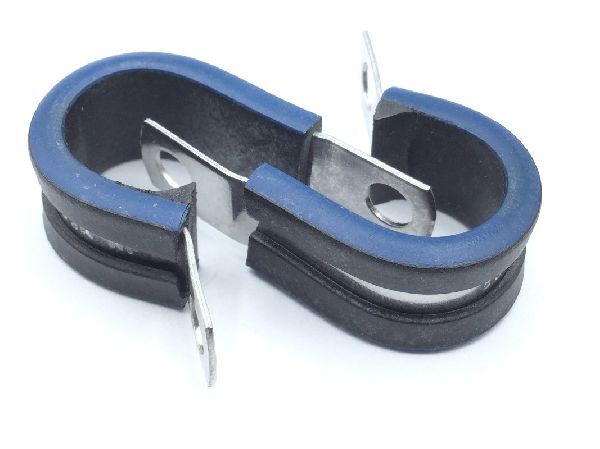

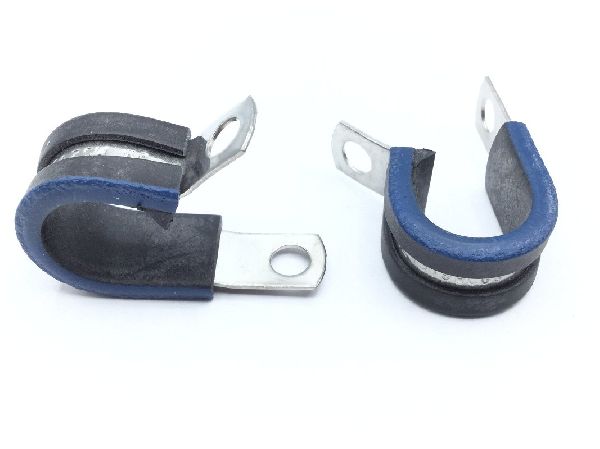

MS21919WCG8 Loop Clamp (10)
MS21919WCG8 Loop Clamp
MS21919WCG8 Loop Clamp (2)
MS21919WCG8 Loop Clamp (3)
MS21919WCG8 Loop Clamp (4)
MS21919WCG8 Loop Clamp (5)
MS21919WCG8 Loop Clamp (6)
MS21919WCG8 Loop Clamp (7)
MS21919WCG8 Loop Clamp (8)
MS21919WCG8 Loop Clamp (9)
MS21919WCG8 Loop Clamp (10)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WCG8 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Price per Unit $4.21
Units per Pack 10
Price per Pack $42.10
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $42.10
Add item to quote
Material
Rubber chloroprene class cr cushion
Surface Treatment
Qq-p-35 federal specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 0.639 inches and 0.669 inches
Cushioning Environmental Protection
Heat and oil resistant and weather resistant
Distance From Loop Center To Tongue End
0.842 inches
Loop Inside Diameter
Between 0.485 inches and 0.515 inches
Material Specification
Mil-s-6721 military specification single material response band
Material Thickness
0.032 inches
Overall Width
Between 0.365 inches and 0.385 inches
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
Between 0.199 inches and 0.209 inches
