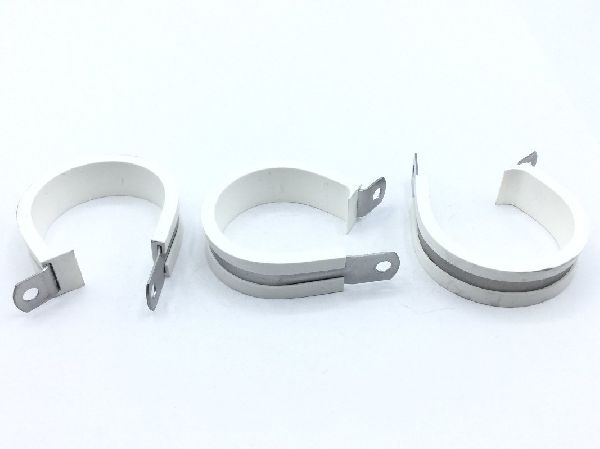

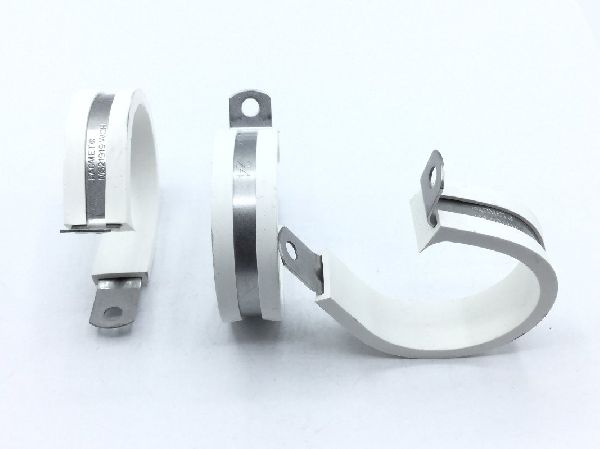

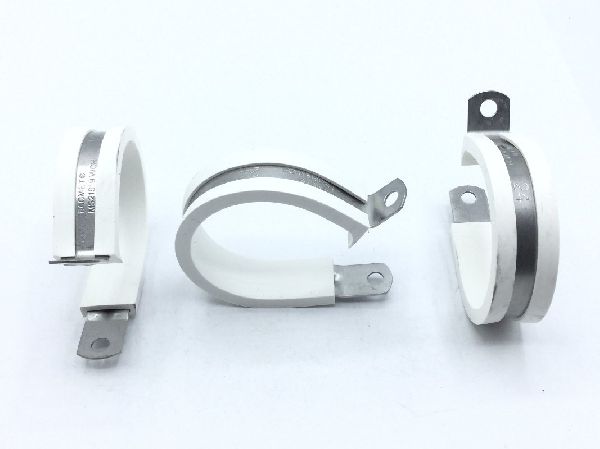

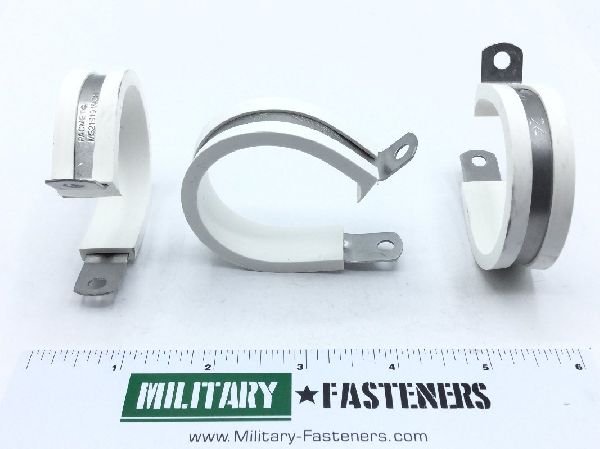

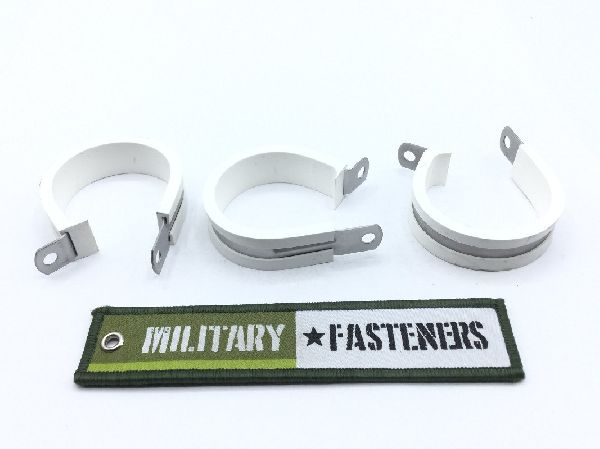

MS21919WCH24 Loop Clamp

Product Series: MS
ECCN: EAR99
Schedule: 8539.29.2500

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Rubber silicone class q cushion

Center To Center Distance Between Loop And Mounting Hole: Between 1.202 inches and 1.232 inches
Cushioning Environmental Protection: Corrosion resistant and weather resistant and oil resistant
Distance From Loop Center To Tongue End: 1.435 inches
Loop Inside Diameter: Between 1.485 inches and 1.515 inches
Material Specification: Mil-s-5059 military specification 1st material response band or ams 5510 assn standard 2nd material response band
Material Thickness: 0.032 inches
Overall Width: Between 0.490 inches and 0.510 inches
Special Features: Cushion color white
Style Designator: Offset mount
Tongue Hole Type: unthreaded round
Diameter: Between 0.199 inches and 0.209 inches
