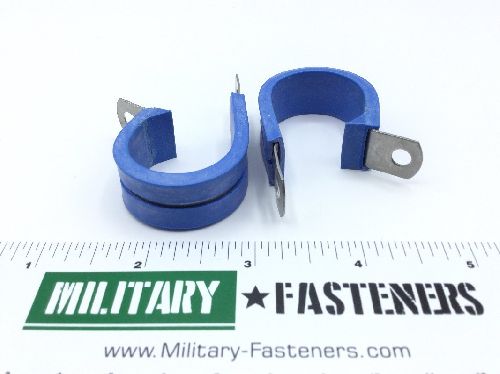

MS21919WCJ15 Loop Clamp

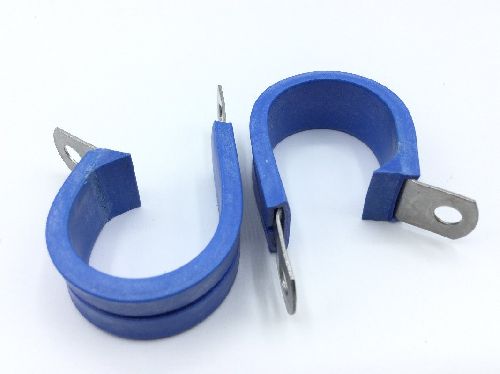

MS21919WCJ15 Loop Clamp (2)

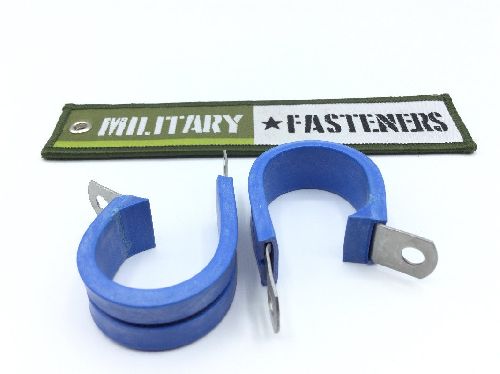

MS21919WCJ15 Loop Clamp (3)

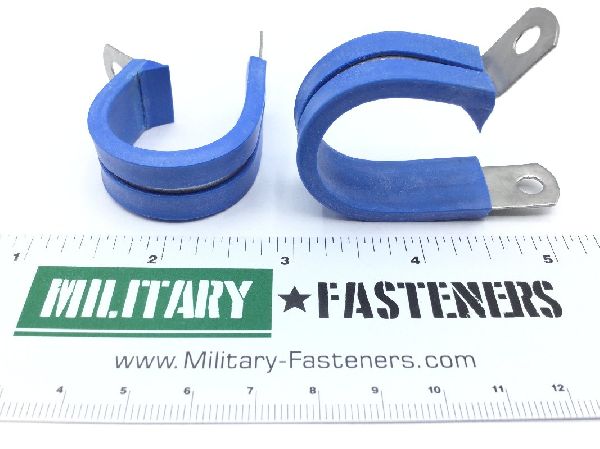

MS21919WCJ15 Loop Clamp (4)

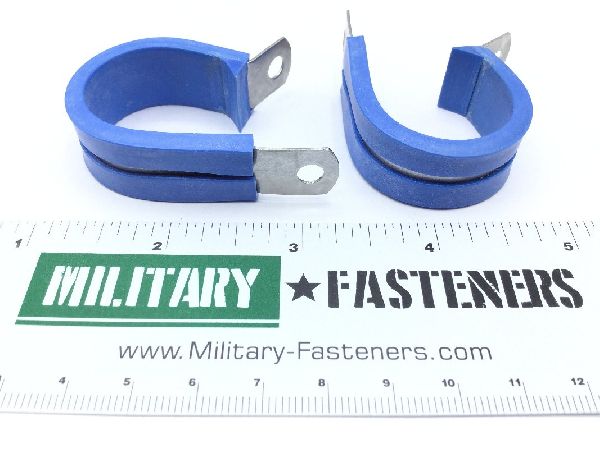

MS21919WCJ15 Loop Clamp (5)

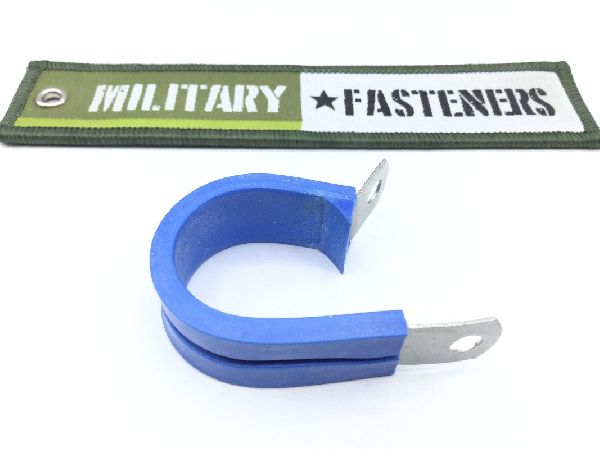

MS21919WCJ15 Loop Clamp (6)

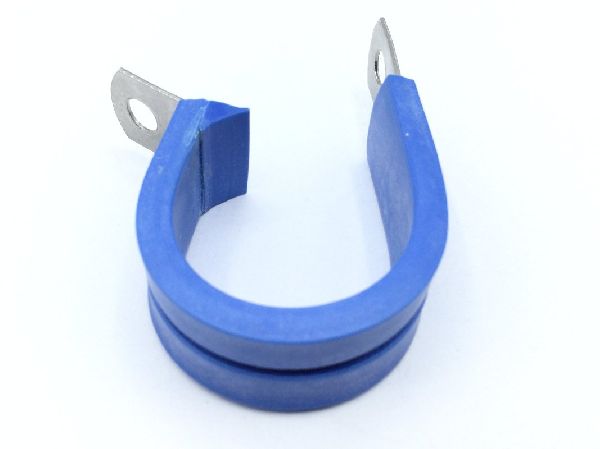

MS21919WCJ15 Loop Clamp (7)

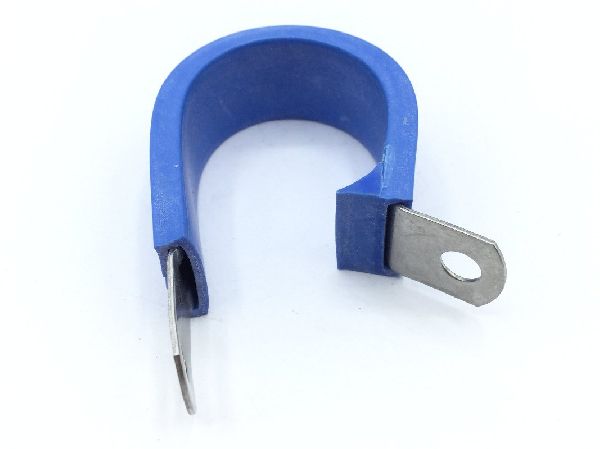

MS21919WCJ15 Loop Clamp (8)

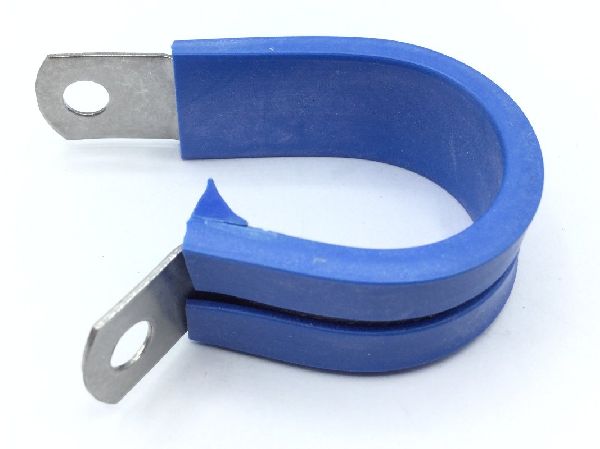

MS21919WCJ15 Loop Clamp (9)
MS21919WCJ15 Loop Clamp
MS21919WCJ15 Loop Clamp (2)
MS21919WCJ15 Loop Clamp (3)
MS21919WCJ15 Loop Clamp (4)
MS21919WCJ15 Loop Clamp (5)
MS21919WCJ15 Loop Clamp (6)
MS21919WCJ15 Loop Clamp (7)
MS21919WCJ15 Loop Clamp (8)
MS21919WCJ15 Loop Clamp (9)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WCJ15 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel band
Surface Treatment
Qq-p-35 federal specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 0.905 inches and 0.935 inches
Cushioning Environmental Protection
Oil resistant and fuel resistant
Distance From Loop Center To Tongue End
Between 1.108 inches and 1.168 inches
Loop Inside Diameter
Between 0.923 inches and 0.953 inches
Material Specification
Mil-s-6721 military specification single material response band
Material Thickness
0.032 inches
Overall Width
Between 0.490 inches and 0.510 inches
Special Features
Cushion solid blue
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
Between 0.199 inches and 0.209 inches
