Home » MS21919WCJ27 Loop Clamp

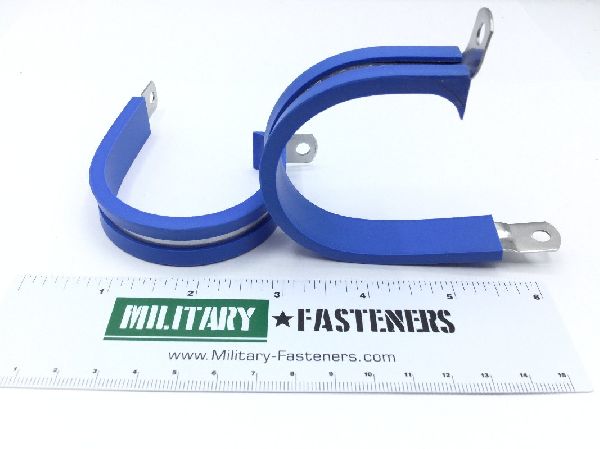

MS21919WCJ27 Loop Clamp

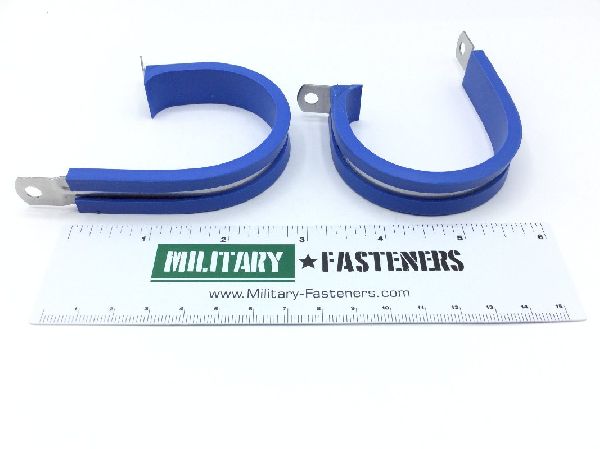

MS21919WCJ27 Loop Clamp (2)

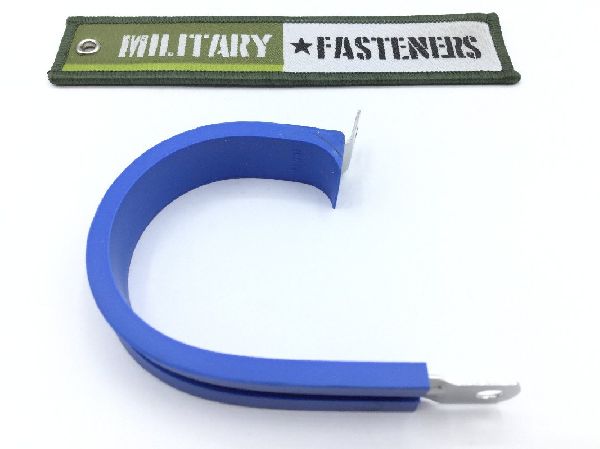

MS21919WCJ27 Loop Clamp (3)

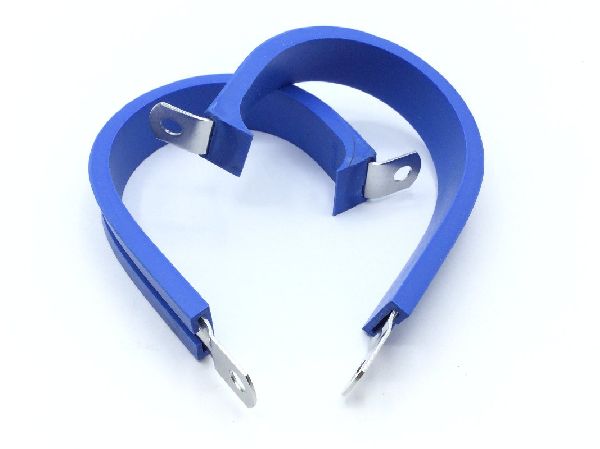

MS21919WCJ27 Loop Clamp (4)

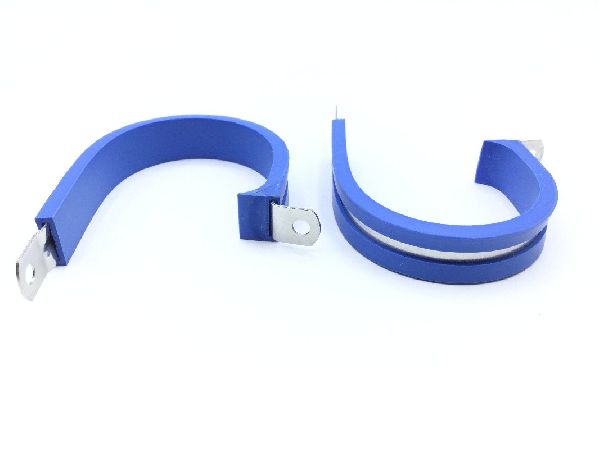

MS21919WCJ27 Loop Clamp (5)

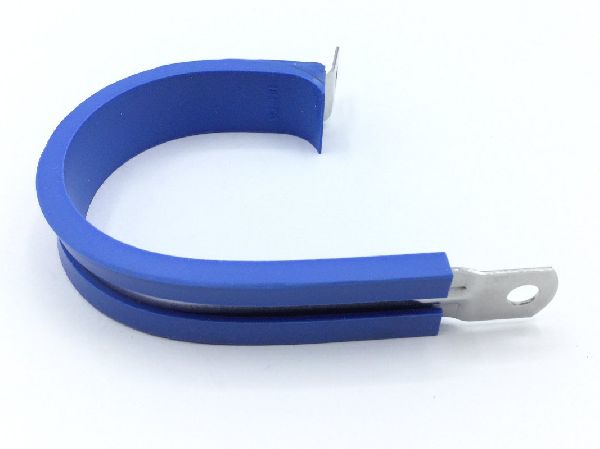

MS21919WCJ27 Loop Clamp (6)
MS21919WCJ27 Loop Clamp
MS21919WCJ27 Loop Clamp (2)
MS21919WCJ27 Loop Clamp (3)
MS21919WCJ27 Loop Clamp (4)
MS21919WCJ27 Loop Clamp (5)
MS21919WCJ27 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WCJ27 Loop Clamp

NSN
5340-01-614-1532
Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel band
Center To Center Distance Between Loop And Mounting Hole
0.125 inches
Distance From Loop Center To Tongue End
Between 0.203 inches and 0.233 inches
End Application
Awacs aircraft
Loop Inside Diameter
Between 1.673 inches and 1.703 inches
Material Thickness
0.125 inches
Overall Width
Between 0.490 inches and 0.510 inches
Part Name Assigned By Controlling Agency
Cushioned support loop type clamp
Special Features
Cushion application-for elevated temperature usage in petroleum based fluid contaminated areas;unaffected by ozone;not resistant to phosphate ester based fluid;color shall be solid blue
Style Designator
Single loop
Tempurature Rating
450.0 degrees fahrenheit
Tongue Hole Type
unthreaded round
Unable To Decode
Unable to decode and unable to decode
