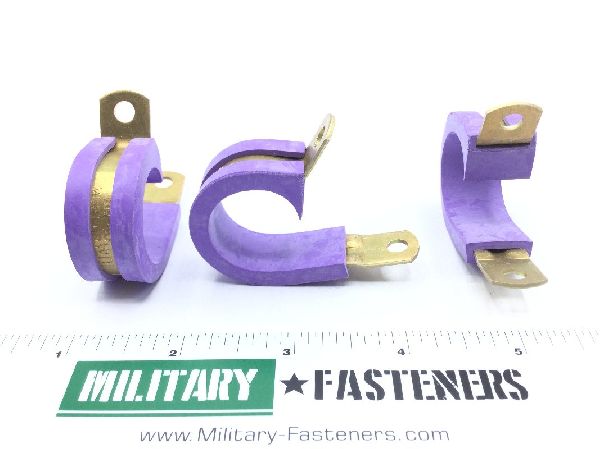

MS21919WDE13 Loop Clamp

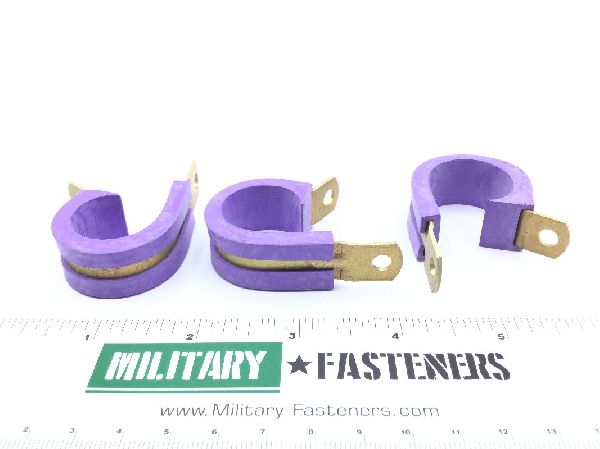

MS21919WDE13 Loop Clamp (2)

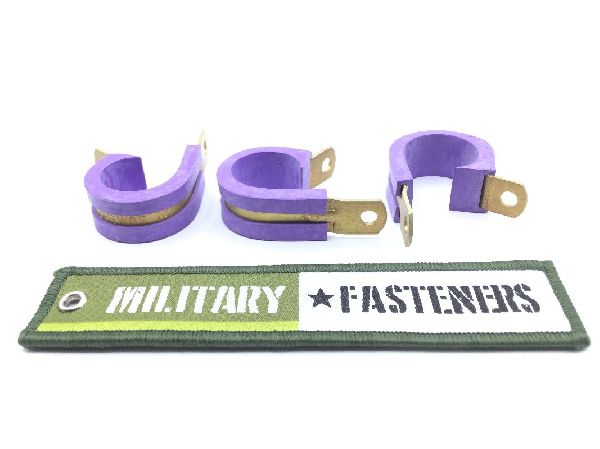

MS21919WDE13 Loop Clamp (3)

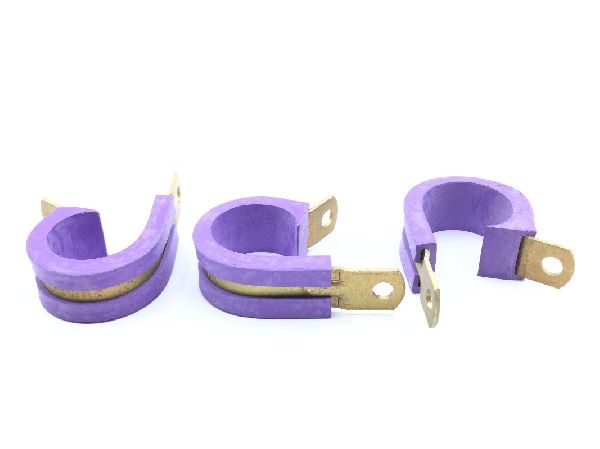

MS21919WDE13 Loop Clamp (4)

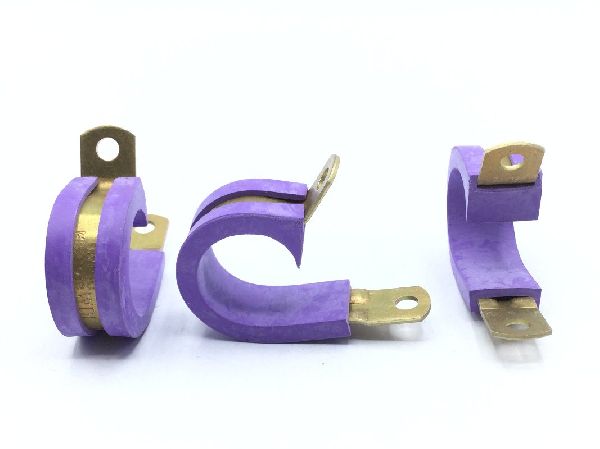

MS21919WDE13 Loop Clamp (5)

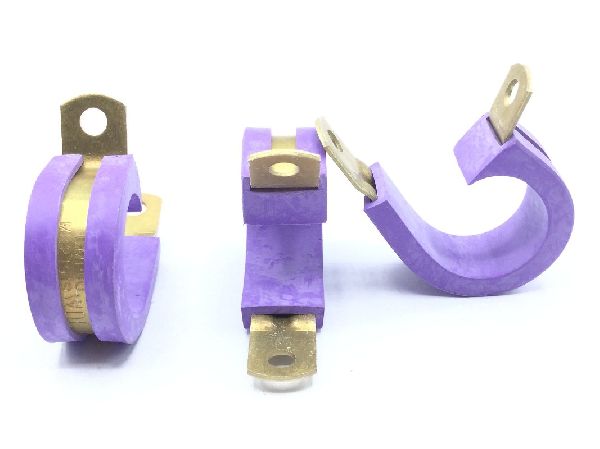

MS21919WDE13 Loop Clamp (6)
MS21919WDE13 Loop Clamp
MS21919WDE13 Loop Clamp (2)
MS21919WDE13 Loop Clamp (3)
MS21919WDE13 Loop Clamp (4)
MS21919WDE13 Loop Clamp (5)
MS21919WDE13 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WDE13 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Price per Unit $6.35
Units per Pack 10
Price per Pack $63.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $63.50
Add item to quote
Material
Aluminum alloy 2024 bandrubber ethylene-propylene class epm cushion
Surface Treatment
Cl a military specification single treatment response band mil-c-5541
Center To Center Distance Between Loop And Mounting Hole
Between 0.862 inches and 0.892 inches
Cushioning Environmental Protection
Ozone resistant
Distance From Loop Center To Tongue End
1.095 inches
Loop Inside Diameter
Between 0.798 inches and 0.828 inches
Material Specification
Qq-a-250/5 federal specification single material response band
Material Thickness
Between 0.030 inches and 0.070 inches
Overall Width
Between 0.490 inches and 0.510 inches
Special Features
Wedge shall be integrally moled to cushion or vulcanized using pressure and heat to accomplish a bond between cushion and wedge w
Style Designator
Offset mount
Tongue Hole Type
Threaded round
