MS21919WDG12 Loop Clamp
MS21919WDG12 Loop Clamp (2)
MS21919WDG12 Loop Clamp (3)
MS21919WDG12 Loop Clamp (4)
MS21919WDG12 Loop Clamp (5)
MS21919WDG12 Loop Clamp (6)
MS21919WDG12 Loop Clamp
MS21919WDG12 Loop Clamp (2)
MS21919WDG12 Loop Clamp (3)
MS21919WDG12 Loop Clamp (4)
MS21919WDG12 Loop Clamp (5)
MS21919WDG12 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

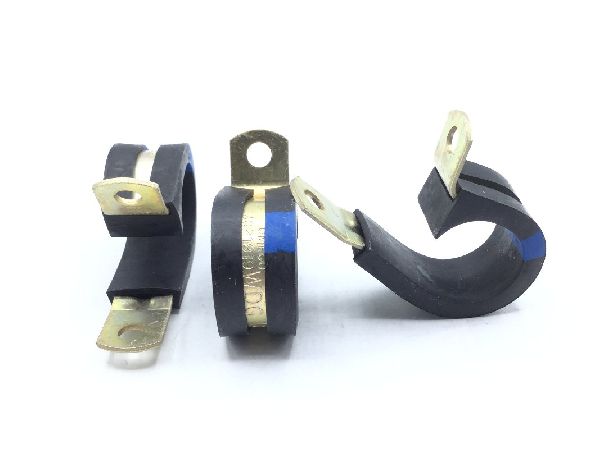

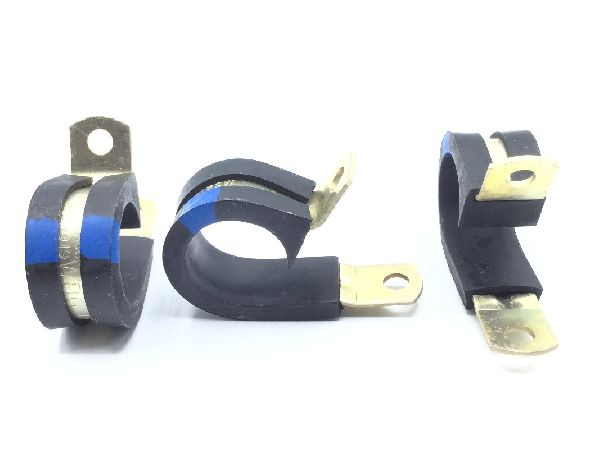

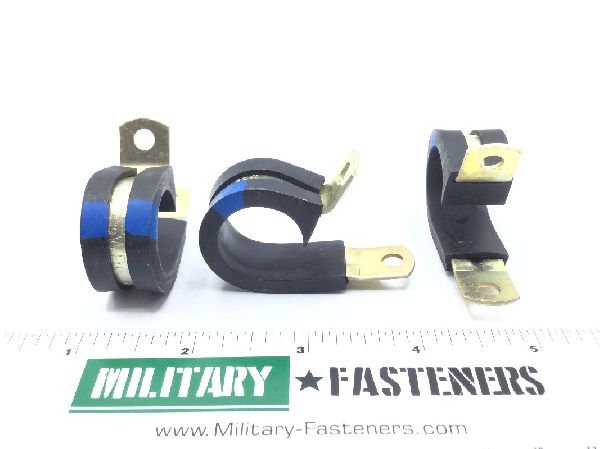

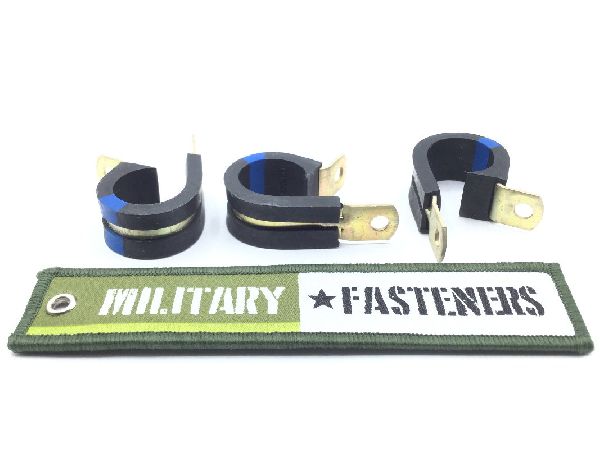

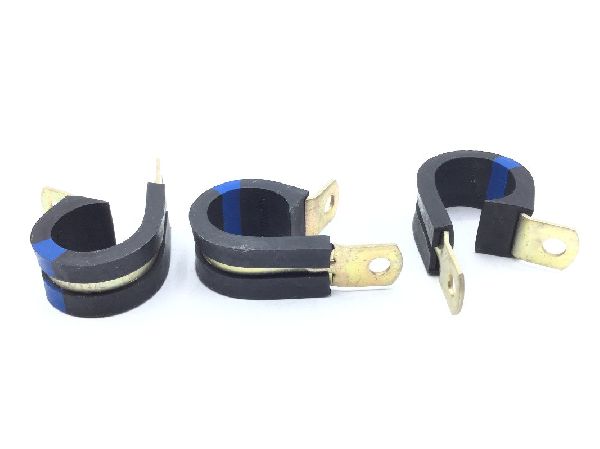

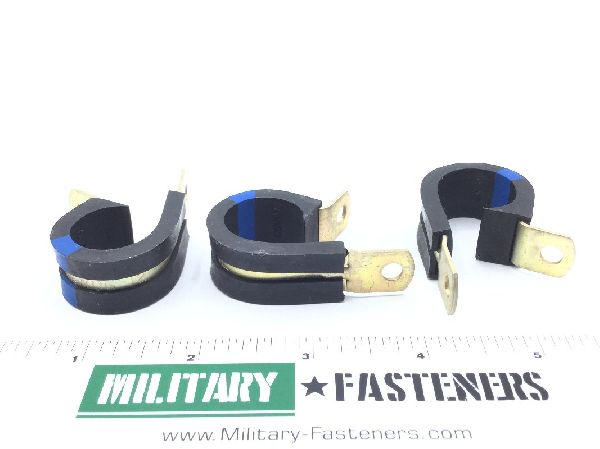

MS21919WDG12 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Price per Unit $2.20
Units per Pack 20
Price per Pack $44.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $44.00
Add item to quote
Material
Rubber chloroprene class cushion
Surface Treatment
-1l-c-5541 military specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 0.830 inches and 0.860 inches
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
1.063 inches
Loop Inside Diameter
Between 0.735 inches and 0.765 inches
Material Specification
Ams 3209 assn standard single material response cushion
Material Thickness
0.05 inches
Nondefinitive Specification/std Data
4 type and a class
Overall Width
Between 0.49 inches and 0.51 inches
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
