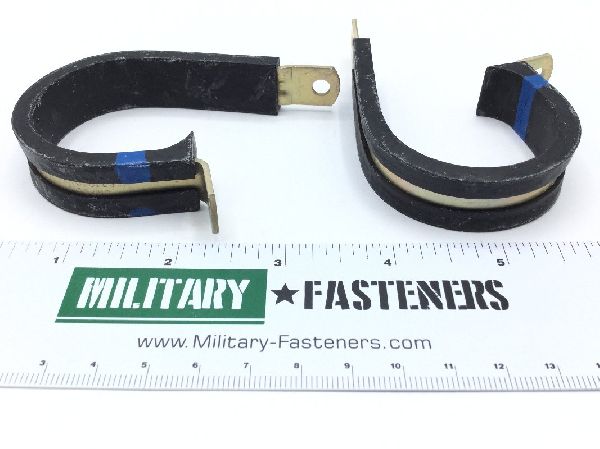

MS21919WDG24 Loop Clamp

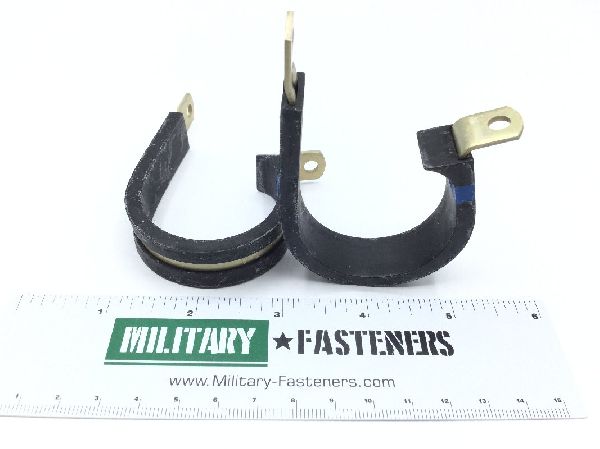

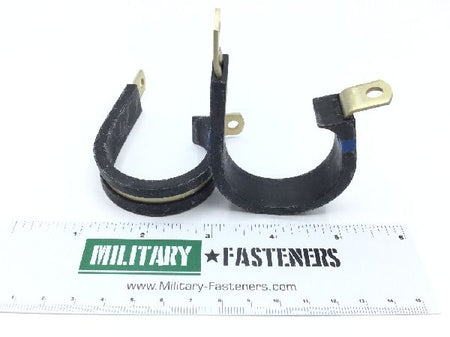

MS21919WDG24 Loop Clamp (2)

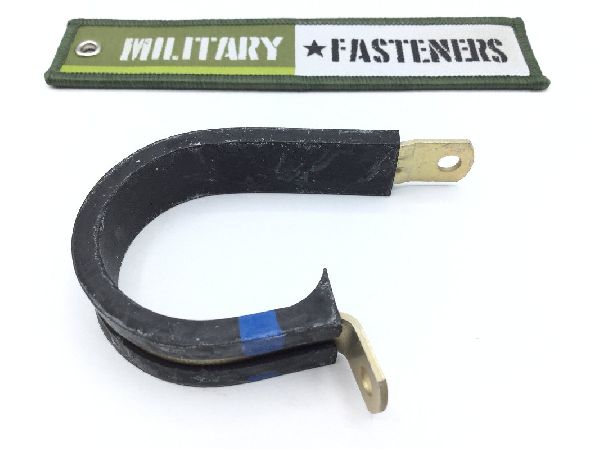

MS21919WDG24 Loop Clamp (3)

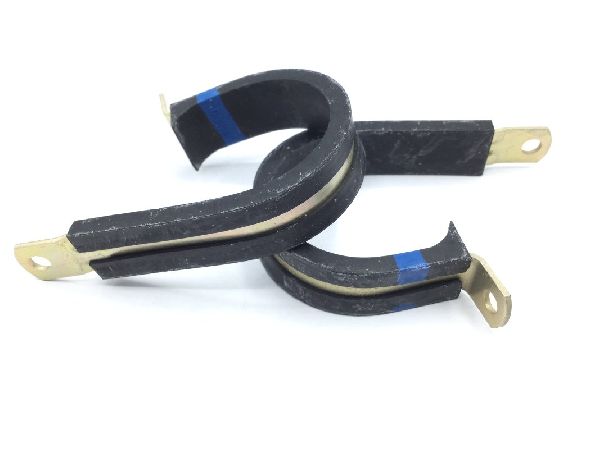

MS21919WDG24 Loop Clamp (4)

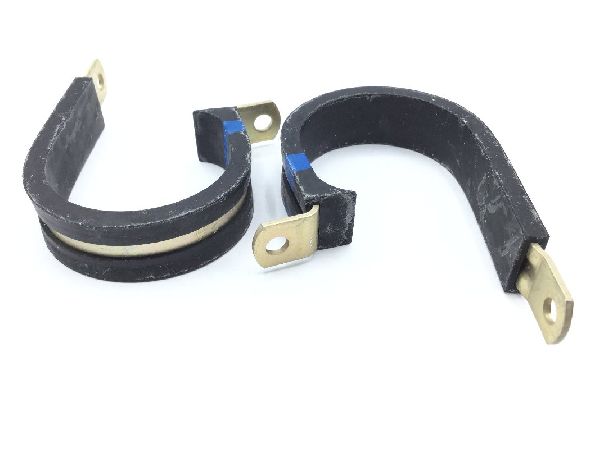

MS21919WDG24 Loop Clamp (5)

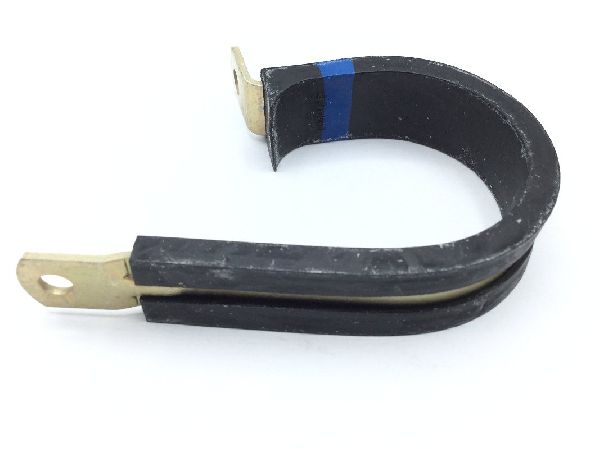

MS21919WDG24 Loop Clamp (6)
MS21919WDG24 Loop Clamp
MS21919WDG24 Loop Clamp (2)
MS21919WDG24 Loop Clamp (3)
MS21919WDG24 Loop Clamp (4)
MS21919WDG24 Loop Clamp (5)
MS21919WDG24 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WDG24 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Price per Unit $3.60
Units per Pack 20
Price per Pack $72.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $72.00
Add item to quote
Material
Rubber chloroprene class cr cushion
Center To Center Distance Between Loop And Mounting Hole
Between 1.234 inches and 1.264 inches
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
1.467 inches
Loop Inside Diameter
Between 1.485 inches and 1.515 inches
Material Specification
Ams 3209 assn standard single material response cushion
Material Thickness
0.062 inches
Nondefinitive Specification/std Data
4 type and a class
Overall Width
Between 0.490 inches and 0.510 inches
Specification Data
26512-gs14 manufacturers specification
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
