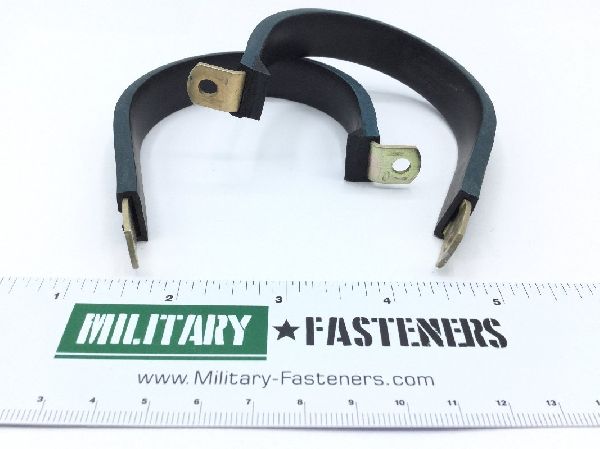

MS21919WDG32 Loop Clamp

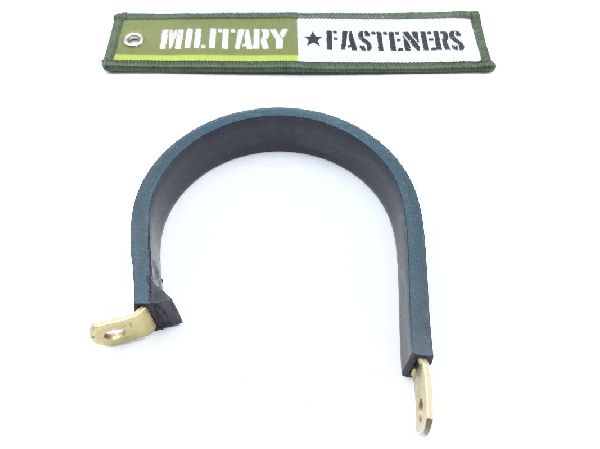

MS21919WDG32 Loop Clamp (2)

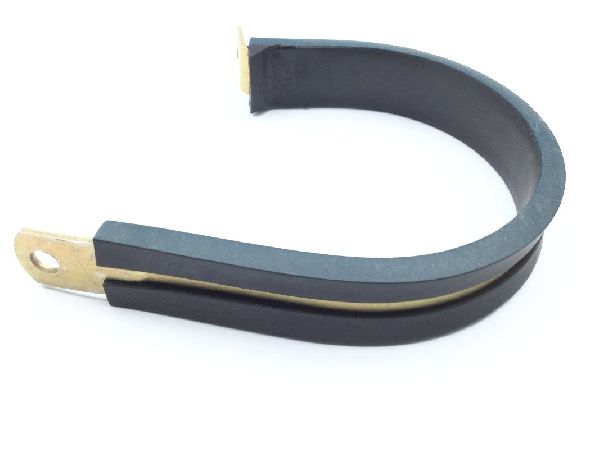

MS21919WDG32 Loop Clamp (3)

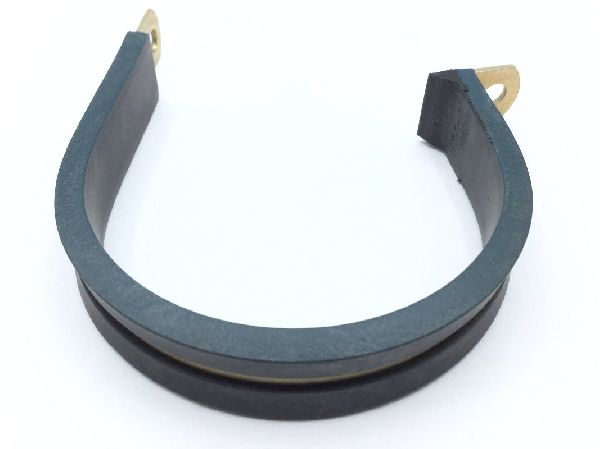

MS21919WDG32 Loop Clamp (4)

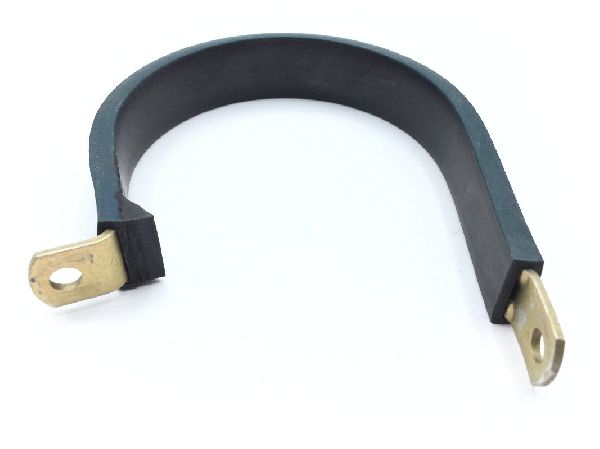

MS21919WDG32 Loop Clamp (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WDG32 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
8539.29.2500
Price per Unit $4.37
Units per Pack 10
Price per Pack $43.70
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $43.70
Add item to quote
Material
Rubber chloroprene class cr cushion
Surface Treatment
Mil-c-5541 military specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 1.484 inches and 1.515 inches
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
1.717 inches
End Application
Mrap-rg-33 armored utility vehicle (auv)
Loop Inside Diameter
Between 1.985 inches and 2.015 inches
Material Specification
Qq-a-250/5 federal specification single material response band
Material Thickness
0.063 inches
Nondefinitive Specification/std Data
4 type and a class
Overall Width
Between 0.490 inches and 0.510 inches
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
