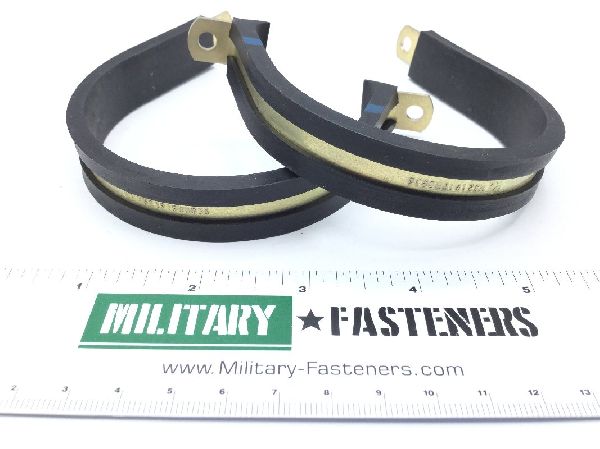

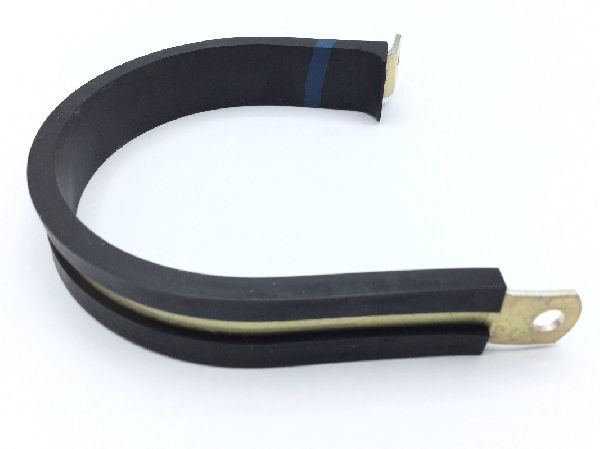

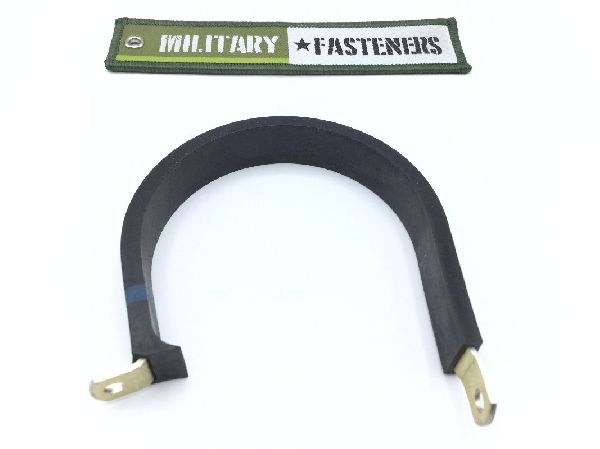

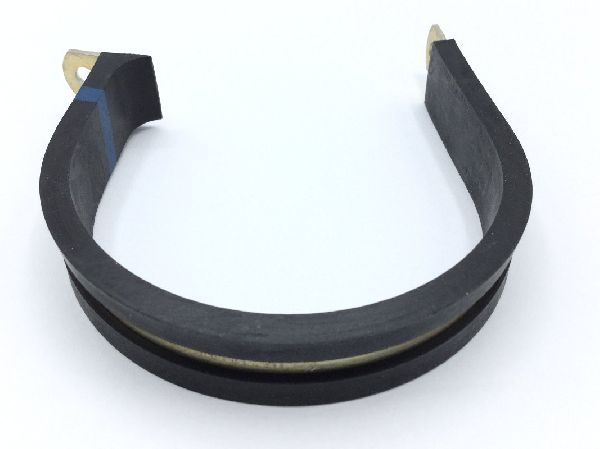

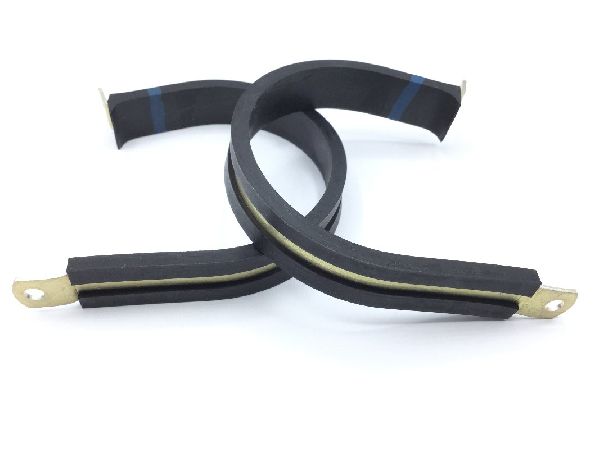

MS21919WDG36 Loop Clamp
MS21919WDG36 Loop Clamp (2)
MS21919WDG36 Loop Clamp (3)
MS21919WDG36 Loop Clamp (4)
MS21919WDG36 Loop Clamp (5)
MS21919WDG36 Loop Clamp
MS21919WDG36 Loop Clamp (2)
MS21919WDG36 Loop Clamp (3)
MS21919WDG36 Loop Clamp (4)
MS21919WDG36 Loop Clamp (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WDG36 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
8539.29.2500
Price per Unit $4.21
Units per Pack 10
Price per Pack $42.10
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $42.10
Add item to quote
Material
Rubber chloroprene class cr cushion
Surface Treatment
-1l-c-5541 military specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 1.609 inches and 1.639 inches
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
1.842 inches
Loop Inside Diameter
Between 2.235 inches and 2.265 inches
Material Specification
Ams 3209 assn standard single material response cushion
Material Thickness
0.062 inches
Nondefinitive Specification/std Data
4 type and a class
Overall Width
Between 0.490 inches and 0.510 inches
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
