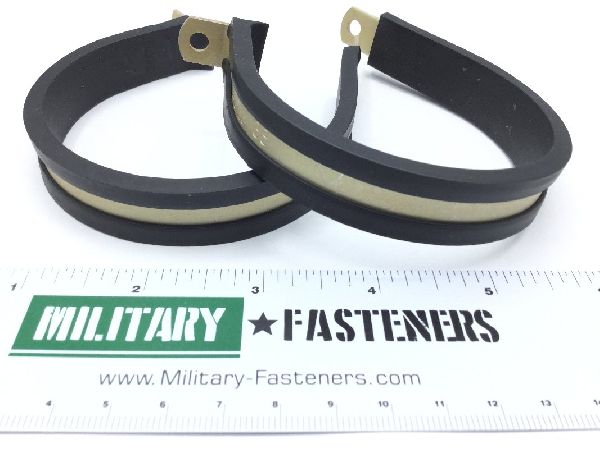

MS21919WDG38 Loop Clamp

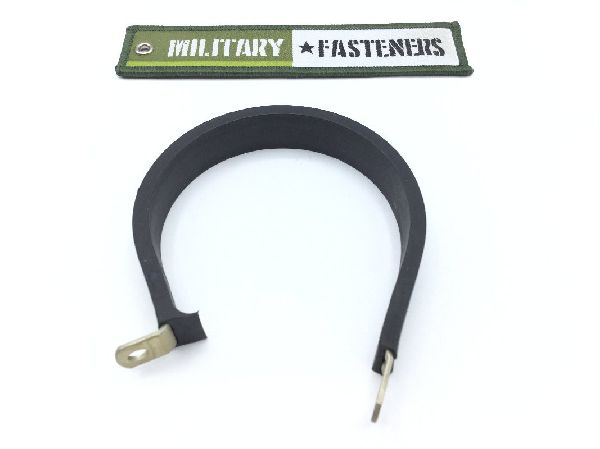

MS21919WDG38 Loop Clamp (2)

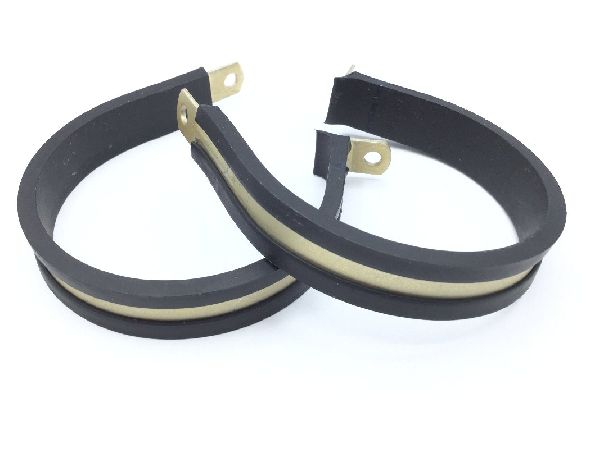

MS21919WDG38 Loop Clamp (3)

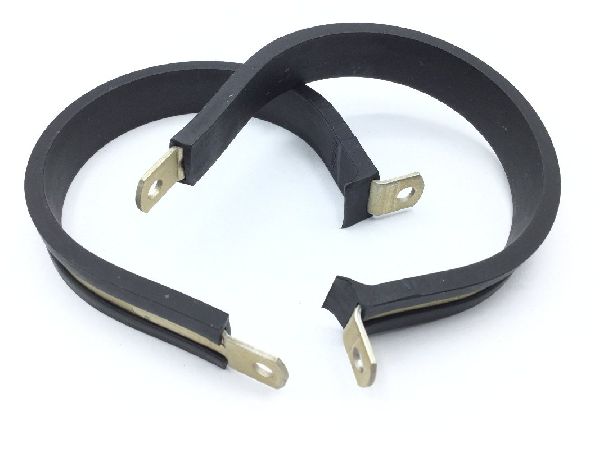

MS21919WDG38 Loop Clamp (4)

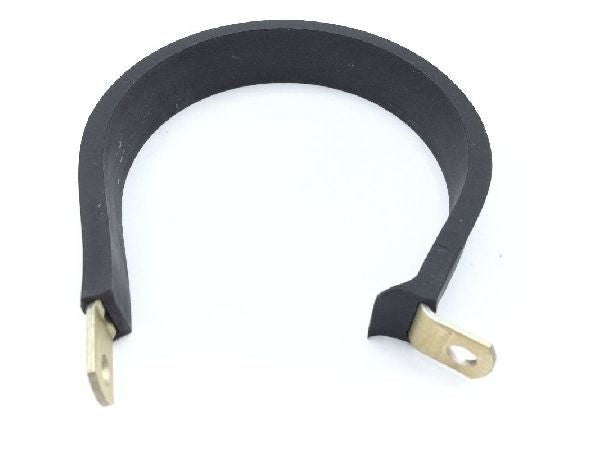

MS21919WDG38 Loop Clamp (5)
MS21919WDG38 Loop Clamp
MS21919WDG38 Loop Clamp (2)
MS21919WDG38 Loop Clamp (3)
MS21919WDG38 Loop Clamp (4)
MS21919WDG38 Loop Clamp (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21919WDG38 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
8539.29.2500
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber chloroprene class cr cushion
Surface Treatment
-1l-c-5541 military specification single treatment response band
Center To Center Distance Between Loop And Mounting Hole
Between 1.672 inches and 1.702 inches
Cushioning Environmental Protection
Weather resistant
Distance From Loop Center To Tongue End
1.905 inches
Loop Inside Diameter
Between 2.36 inches and 2.39 inches
Material Specification
Ams 3209 assn standard single material response cushion
Material Thickness
0.062 inches
Nondefinitive Specification/std Data
4 type and a grade
Overall Width
Between 0.490 inches and 0.510 inches
Style Designator
Offset mount
Tongue Hole Type
unthreaded round
Diameter
0.204 inches
