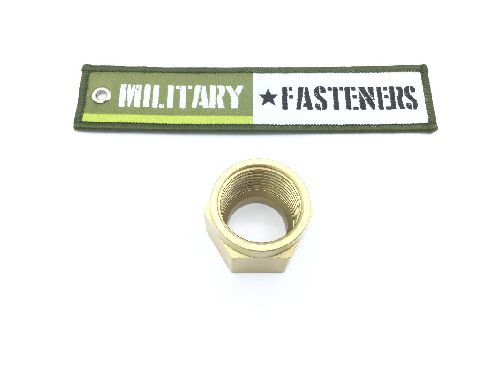

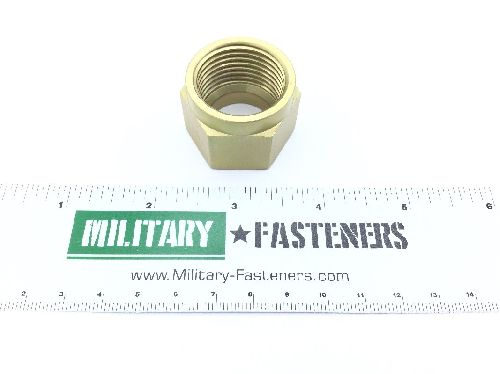

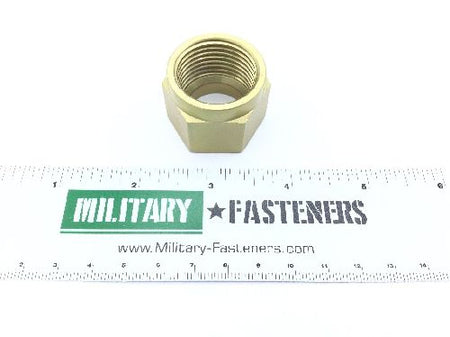

MS21921-12 Tube Coupling Nut

NSN: 4730-00-914-9851
Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 1137 and steel comp 1141

Surface Treatment

Class 2 federal specification single treatment response type ii qq-p-416

Thread Class

Thread Series

Unj

Thread Size

1.062 inches

Fabrication Method: Any acceptable
Length To Shoulder: 0.687 inches
Material Specification: Qq-s-637 federal specification single material response
Nut Height: 1.00 inches
Nut Style: Tube coupling
Seat Angle: 45 degrees
Smallest Inside Diameter: 0.826 inches
Special Features: Supports grumman a10 aircraft
Specification Data: 96906-ms21921 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Tube Outside Diameter: 0.75 inches
Width Across Flats: 1.250 inches
