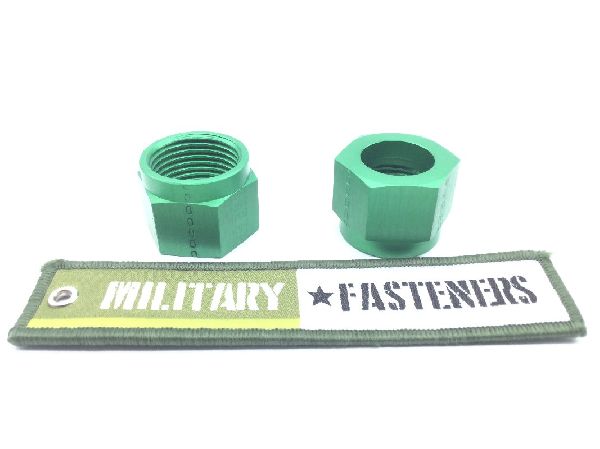

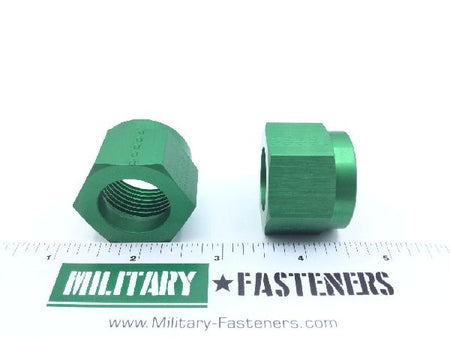

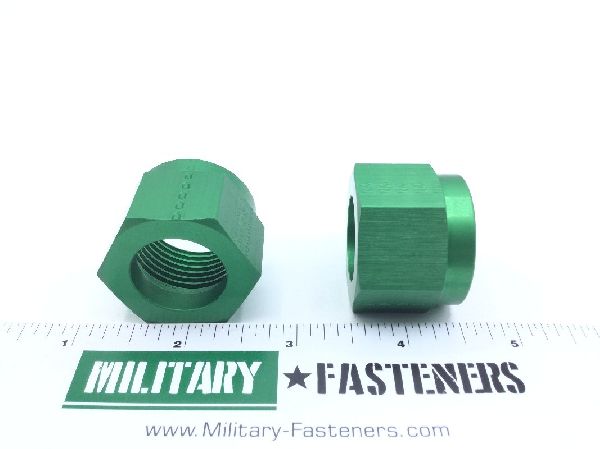

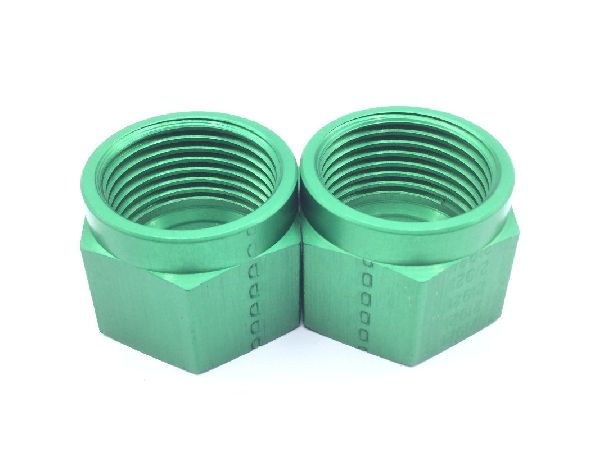

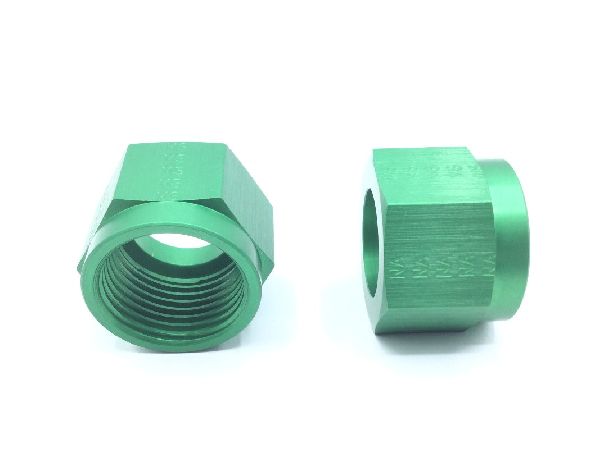

MS21921-12D Tube Coupling Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2014 or aluminum alloy 2024

Surface Treatment

Caass 1 military specification single treatment response type ii mil-a-8625

Thread Class

Thread Series

Unj

Thread Size

1.062 inches

End Application: model ch-47 helicopter
Fabrication Method: Any acceptable
Length To Shoulder: 0.687 inches
Material Specification: t62 or t851 federal specification single material response t6 qq-a-225/6
Nut Height: 1.000 inches
Nut Style: Tube coupling
Seat Angle: 45.00 degrees
Smallest Inside Diameter: 0.826 inches
Specification Data: 96906-ms21921 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Tube Outside Diameter: 0.750 inches
Width Across Flats: 1.250 inches
