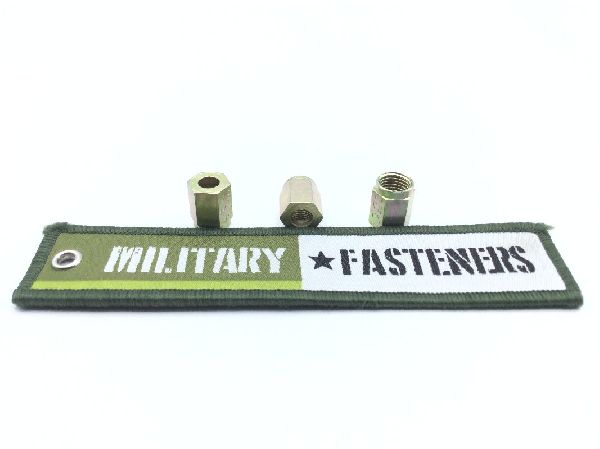

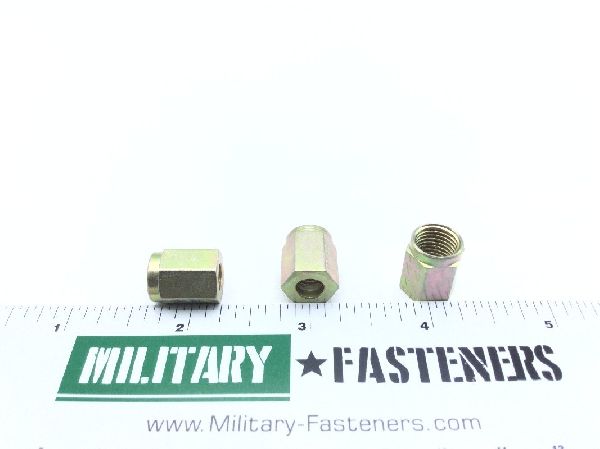

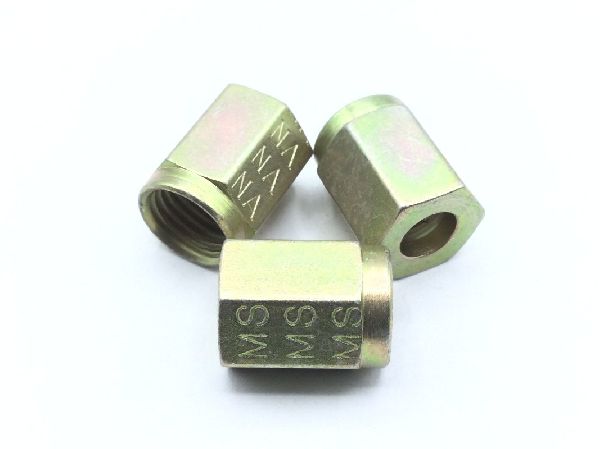

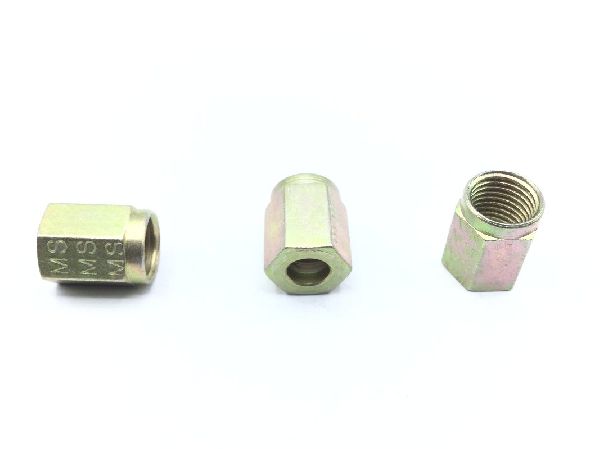

MS21921-3 Tube Coupling Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $11.55

Units per Pack 5

Price per Pack $57.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $57.75

Add item to quote

Material

Steel comp 1137 or steel comp 1141

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

Fabrication Method: Machined
Length To Shoulder: Between 0.422 inches and 0.438 inches
Material Specification: Aisa/sae 1137 or 1141 federal standard single material response 66
Nut Height: 0.578 inches
Nut Style: Tube coupling
Seat Angle: 45.00 degrees
Smallest Inside Diameter: Between 0.230 inches and 0.245 inches
Specification Data: 96906-ms21921 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Tube Outside Diameter: 0.188 inches
Width Across Flats: 0.438 inches
