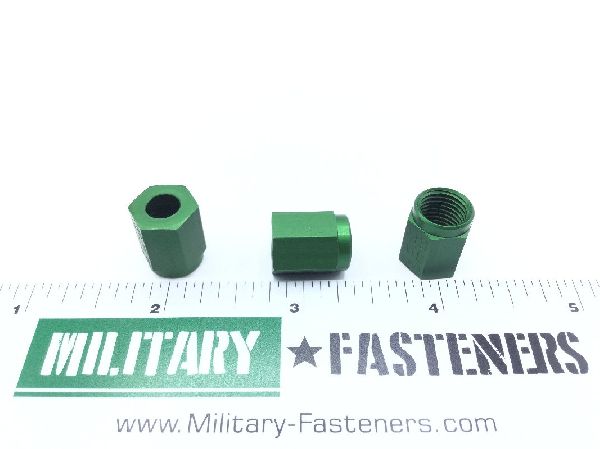

MS21921-3D Tube Coupling Nut

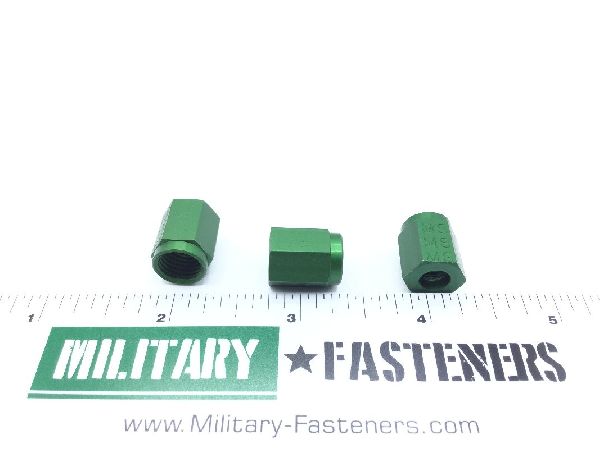

MS21921-3D Tube Coupling Nut (2)

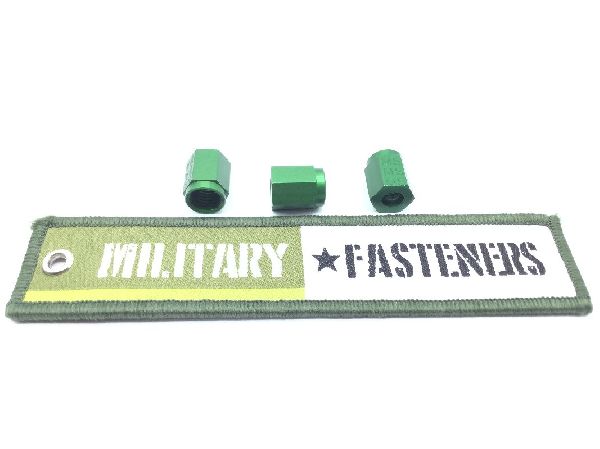

MS21921-3D Tube Coupling Nut (3)

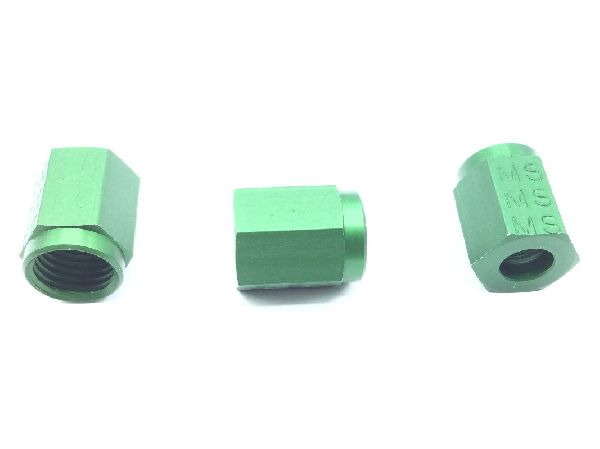

MS21921-3D Tube Coupling Nut (4)

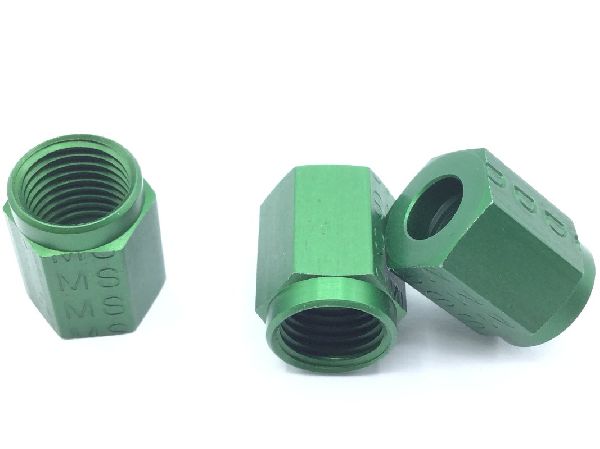

MS21921-3D Tube Coupling Nut (5)

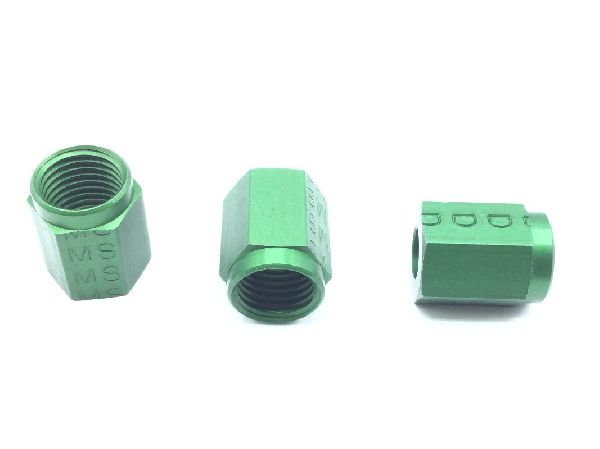

MS21921-3D Tube Coupling Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21921-3D Tube Coupling Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Aluminum alloy 2014

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

End Application: An/mpa-53 used on target ranging antenna-receiver-transmitter group
Fabrication Method: Any acceptable
Length To Shoulder: Between 0.419 inches and 0.439 inches
Nut Height: Between 0.570 inches and 0.590 inches
Nut Style: Tube coupling
Seat Angle: 45 degrees
Smallest Inside Diameter: 0.232 inches
Specification Data: 96906-ms21921 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Tube Outside Diameter: 0.188 inches
Width Across Flats: 0.438 inches
