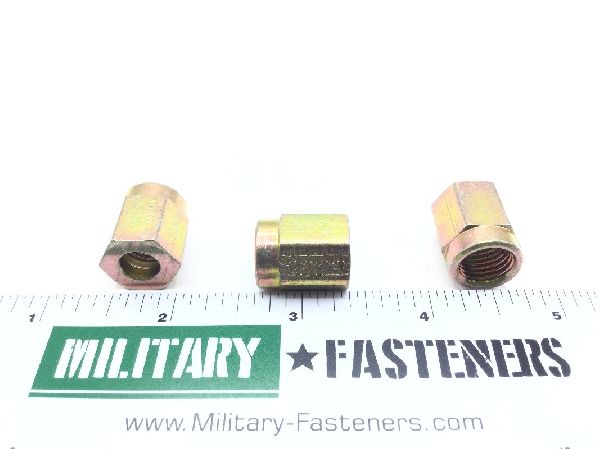

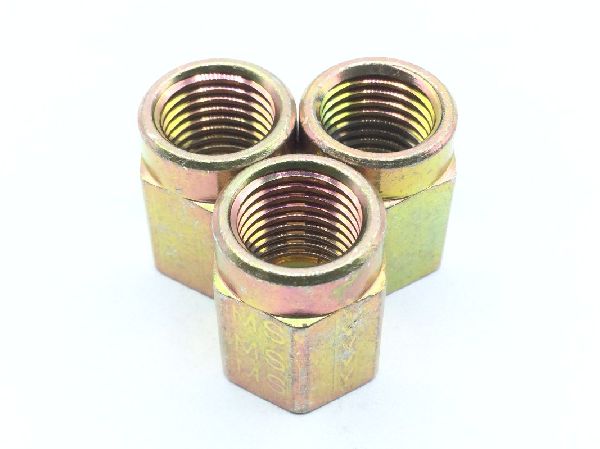

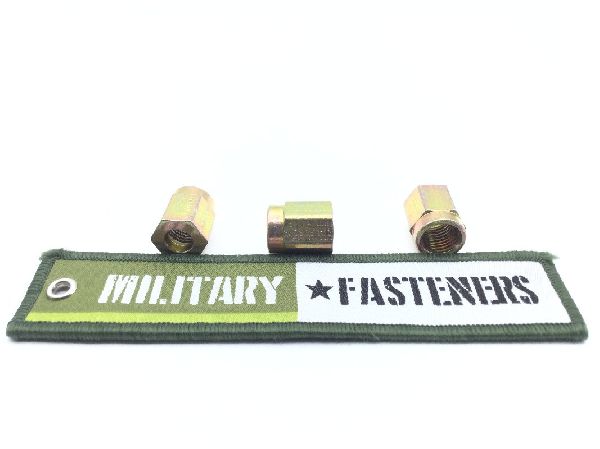

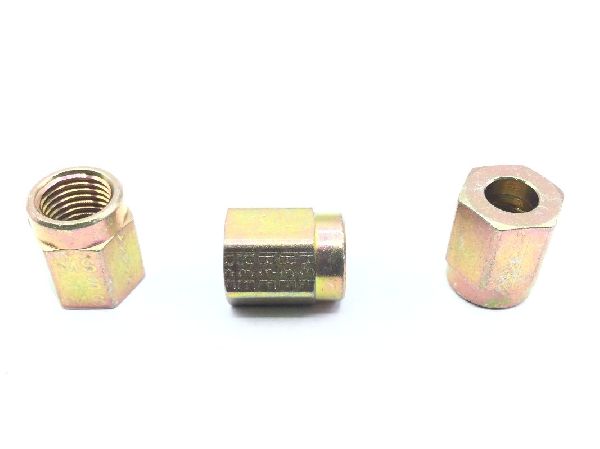

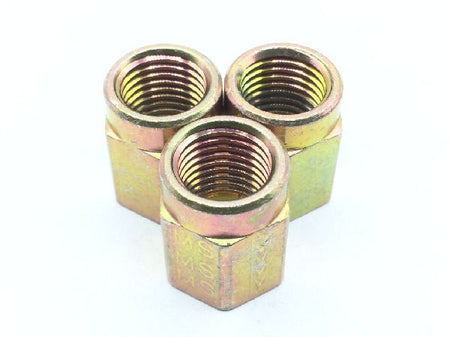

MS21921-4 Tube Coupling Nut

NSN: 4730-00-554-8015
Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.438 inches

End Application: 2350-01-031-0586
Fabrication Method: Any acceptable
Length To Shoulder: Between 0.537 inches and 0.557 inches
Nut Height: 0.720 inches
Nut Style: Tube coupling
Seat Angle: 45.00 degrees
Smallest Inside Diameter: Between 0.300 inches and 0.305 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Tube Outside Diameter: 0.250 inches
Width Across Flats: 0.562 inches
