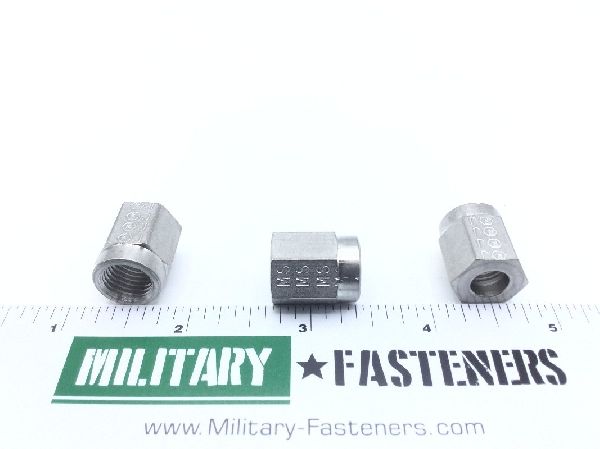

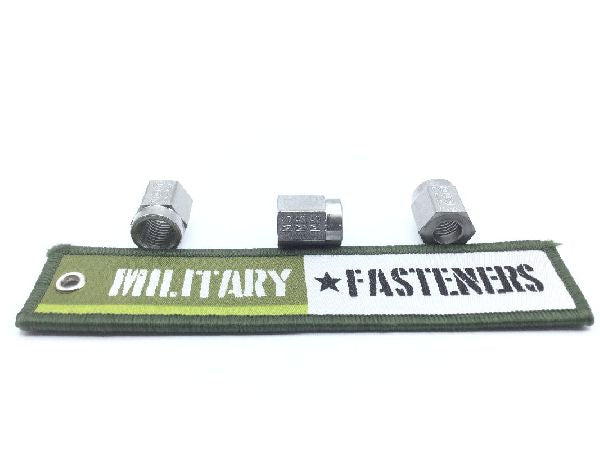

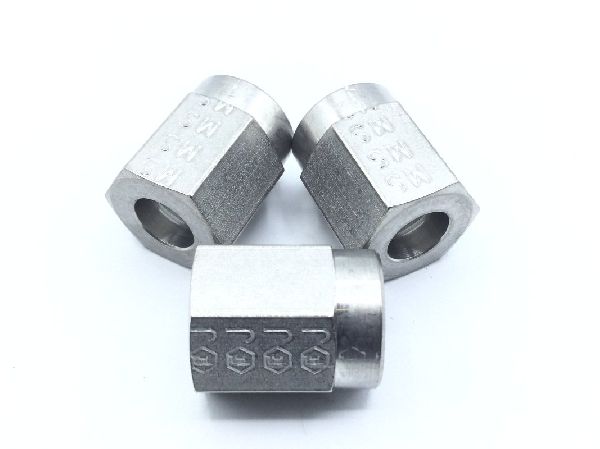

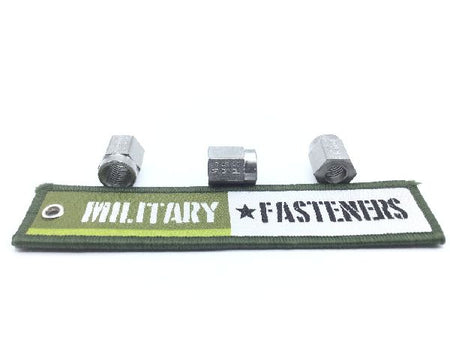

MS21921-4J Tube Coupling Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $39.90

Units per Pack 2

Price per Pack $79.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $79.80

Add item to quote

Material

Steel comp 304

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.438 inches

Fabrication Method: Machined
Length To Shoulder: 0.547 inches
Material Specification: Class 304 federal specification single material response qq-s-763
Nut Height: 0.720 inches
Nut Style: Tube coupling
Seat Angle: 45.00 degrees
Smallest Inside Diameter: 0.300 inches
Specification Data: 96906-ms21921 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Tube Outside Diameter: 0.250 inches
Width Across Flats: 0.562 inches
