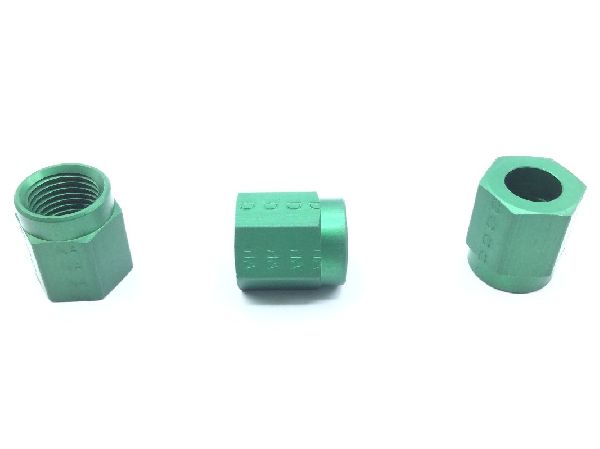

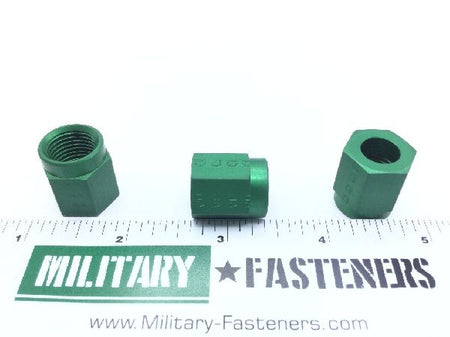

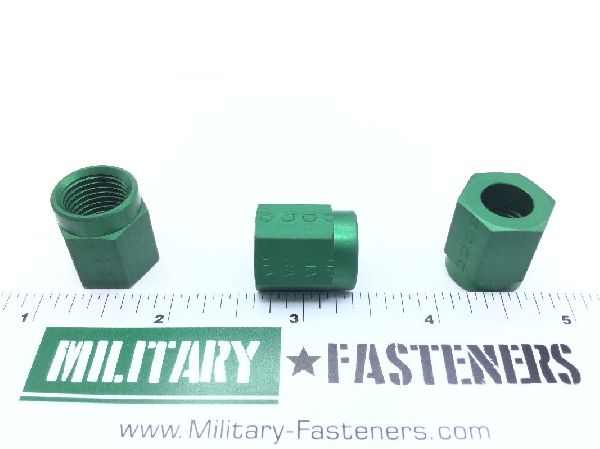

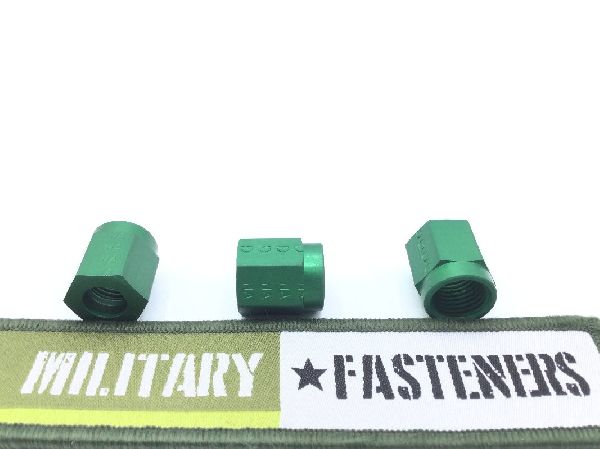

MS21921-5D Tube Coupling Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $15.59

Units per Pack 5

Price per Pack $77.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $77.95

Add item to quote

Material

Aluminum alloy 2024

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.500 inches

End Application: Ah-1s(mc) used on attack helicopter
Fabrication Method: Any acceptable
Length To Shoulder: 0.562 inches
Material Specification: T6 federal specification single material response qq-a-225/6
Nut Height: 0.760 inches
Nut Style: Tube coupling
Seat Angle: 45.00 degrees
Smallest Inside Diameter: 0.366 inches
Specification Data: 96906-ms21921 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Tube Outside Diameter: 0.312 inches
Width Across Flats: 0.625 inches
