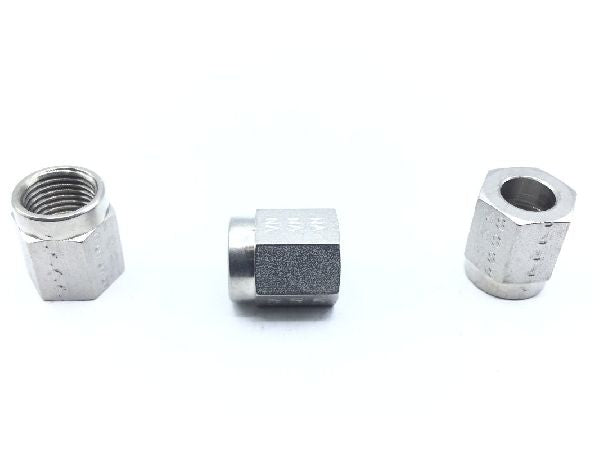

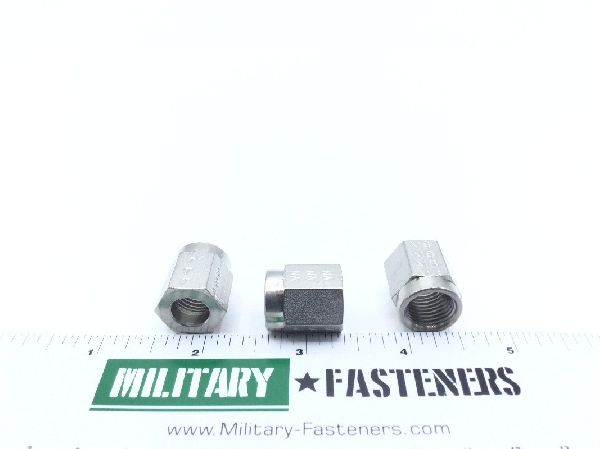

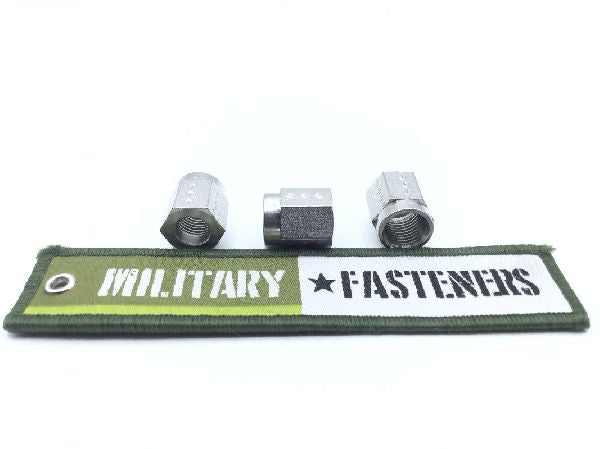

MS21921-5J Tube Coupling Nut

Product Series: MS
ECCN: 9A991
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Stainless Steel

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.500 inches

Fabrication Method: Any acceptable
Length To Shoulder: 0.562 inches
Material Specification: Class 304 federal specification single material response qq-s-763
Nut Height: 0.760 inches
Nut Style: Tube coupling
Seat Angle: 45.00 degrees
Smallest Inside Diameter: 0.366 inches
Specification Data: 96906-ms21921 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Tube Outside Diameter: 0.312 inches
Width Across Flats: 0.625 inches
