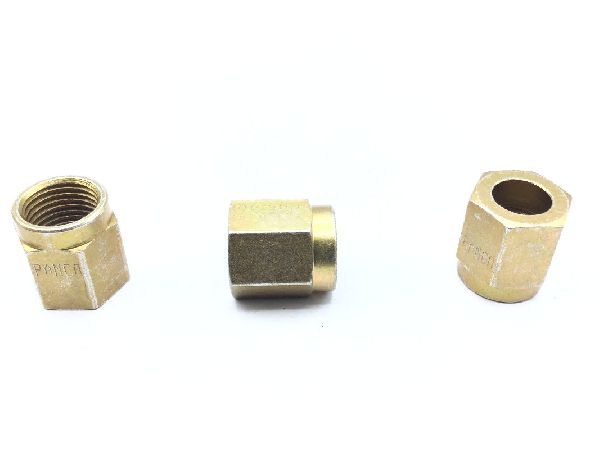

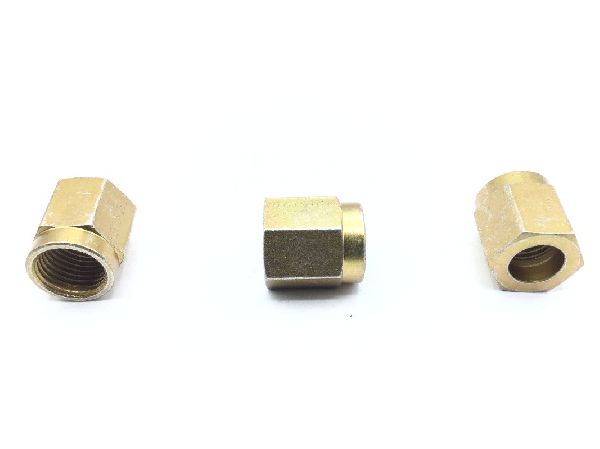

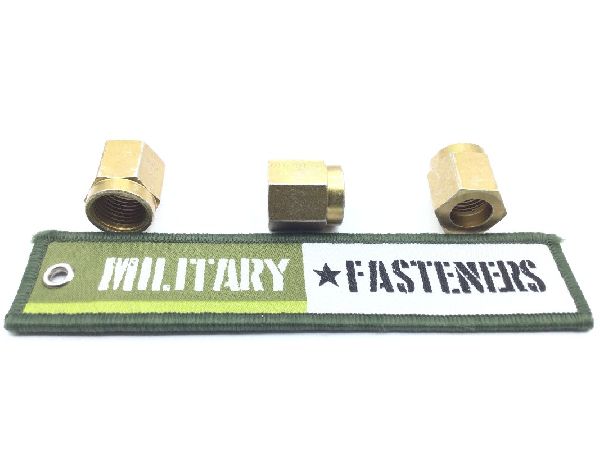

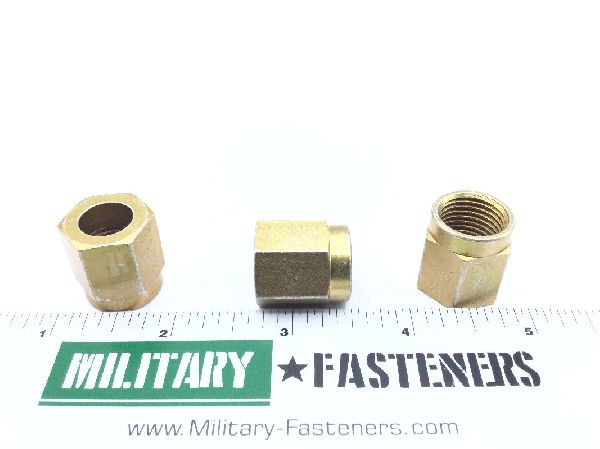

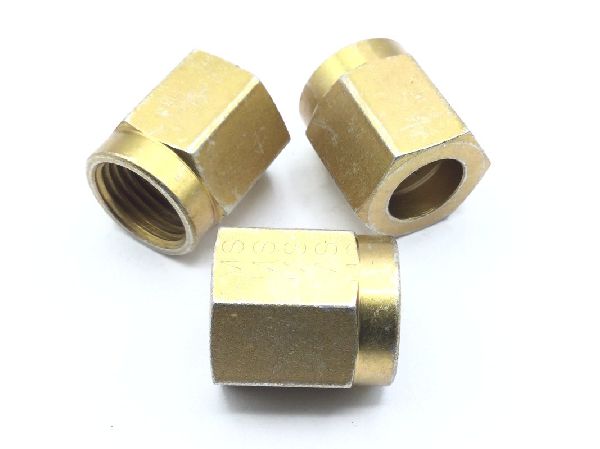

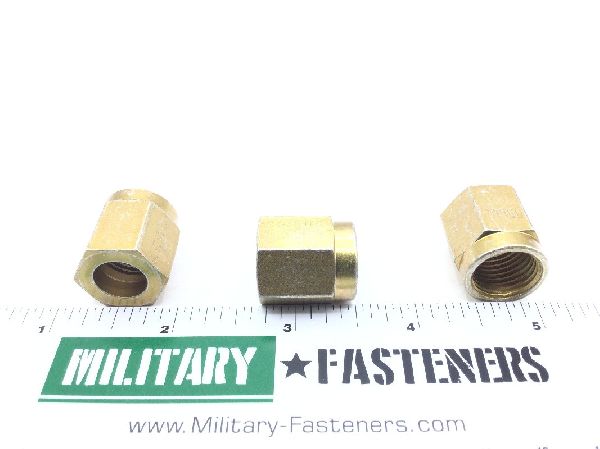

MS21921-6 Tube Coupling Nut

MS21921-6 Tube Coupling Nut (2)

MS21921-6 Tube Coupling Nut (3)

MS21921-6 Tube Coupling Nut (4)

MS21921-6 Tube Coupling Nut (5)

MS21921-6 Tube Coupling Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21921-6 Tube Coupling Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

15-5 ph steel

Thread Class

3b

Thread Size

0.5625 inches

Fabrication Method: Machined
Nut Height: 0.80 inches
Seat Angle: 45 degrees
Smallest Inside Diameter: Between 0.425 inches and 0.43 inches
Special Features: Supports grumman a10 aircraft. thread series is unf (fine thread)j. nut style is a350 tube coupling. length to shoulder is
Specification Data: 96906-ms21921 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Tube Outside Diameter: 0.375 inches
Width Across Flats: 0.688 inches
