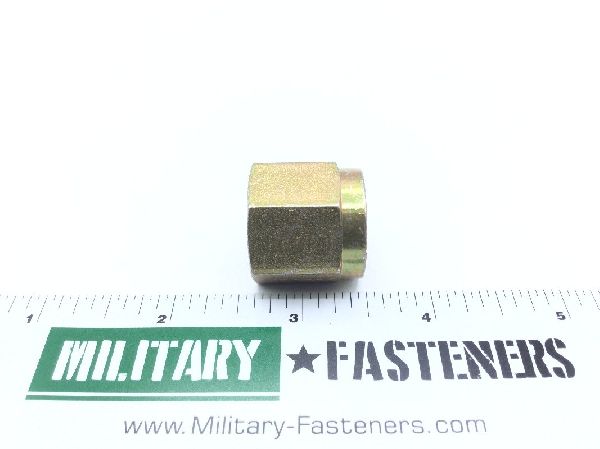

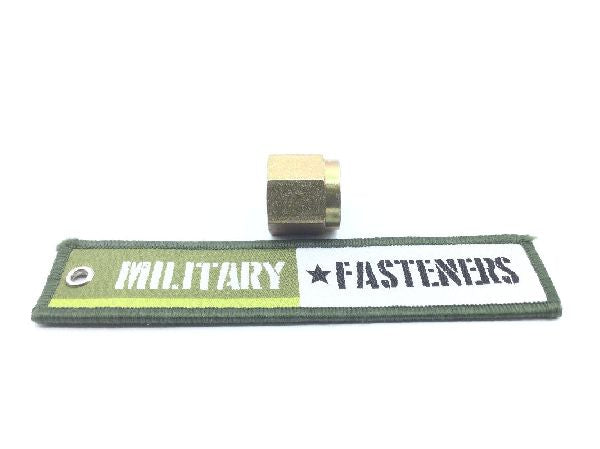

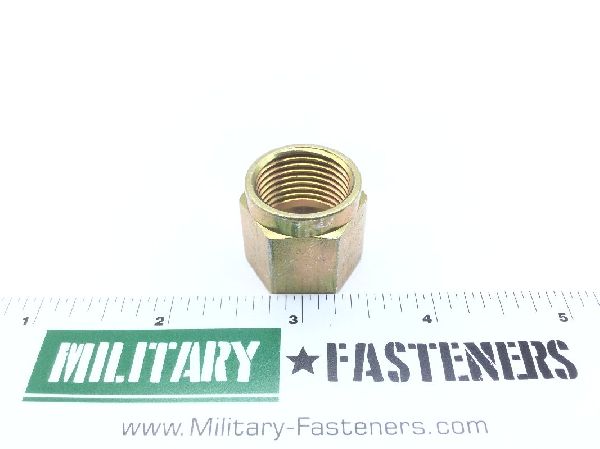

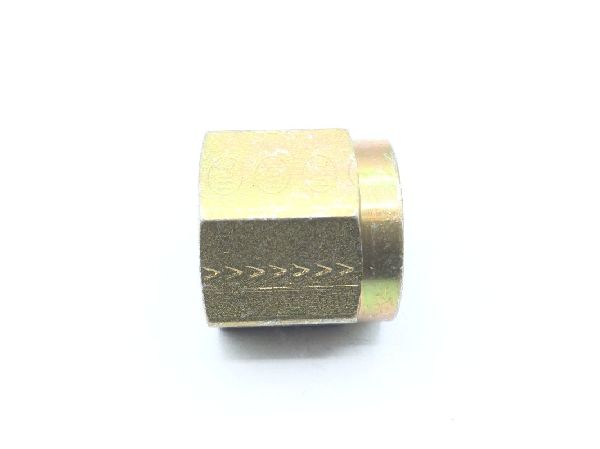

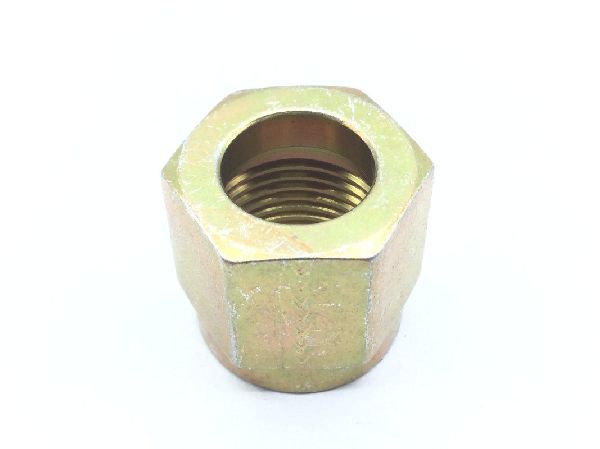

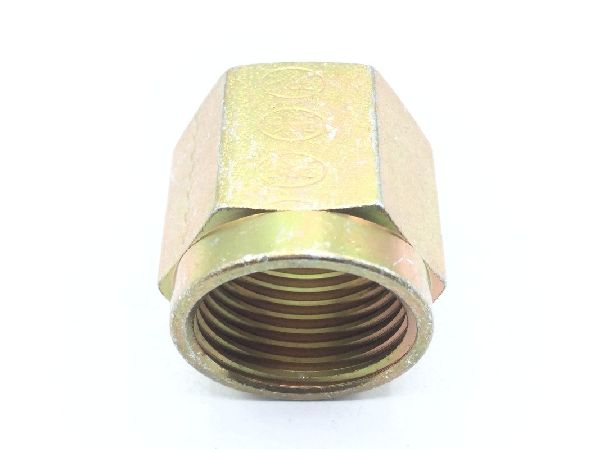

MS21921V8P Tube Coupling Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $35.96

Units per Pack 1

Price per Pack $35.96

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $35.96

Add item to quote

Material

Stainless Steel

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.750 inches

Fabrication Method: Any acceptable
Length To Shoulder: Between 0.599 inches and 0.619 inches
Nut Height: Between 0.850 inches and 0.870 inches
Nut Style: Tube coupling
Part Name Assigned By Controlling Agency: Flareless sleeve coupling nut
Seat Angle: 45 degrees
Smallest Inside Diameter: Between 0.552 inches and 0.557 inches
Special Features: Corrosion resistant steel (15-5) with cadmium plating
Specification Data: 81343 - as21921 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Tube Outside Diameter: 0.500 inches
Width Across Flats: 0.875 inches
