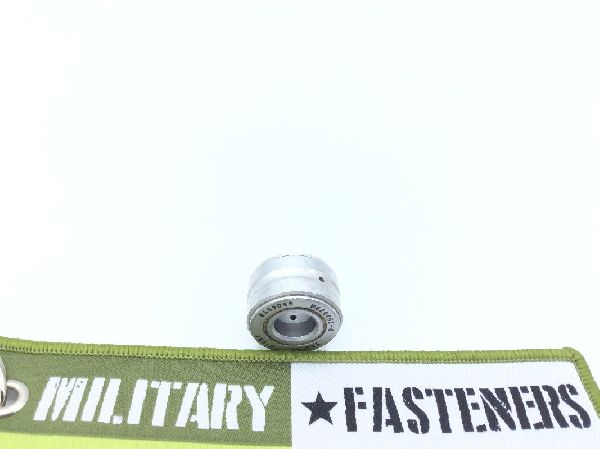

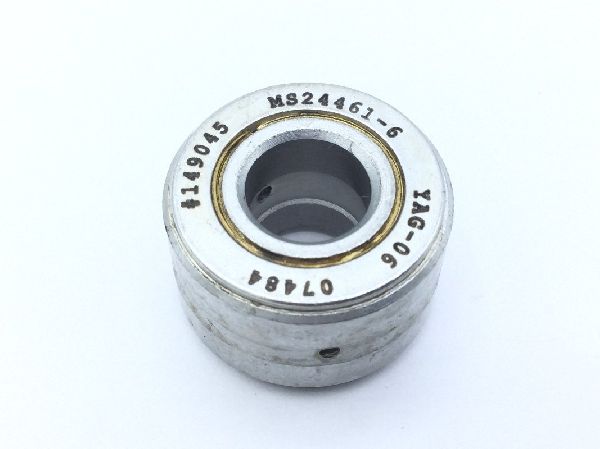

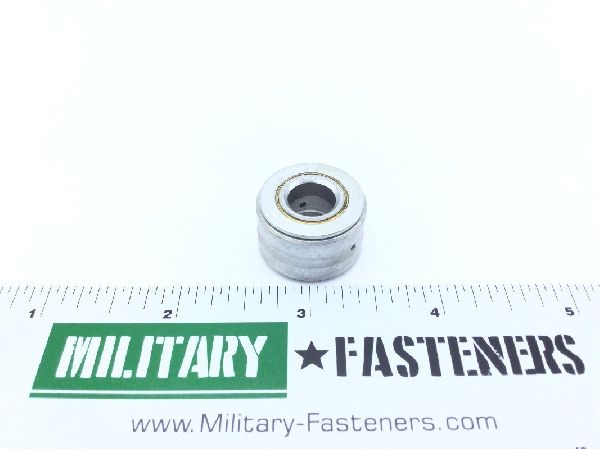

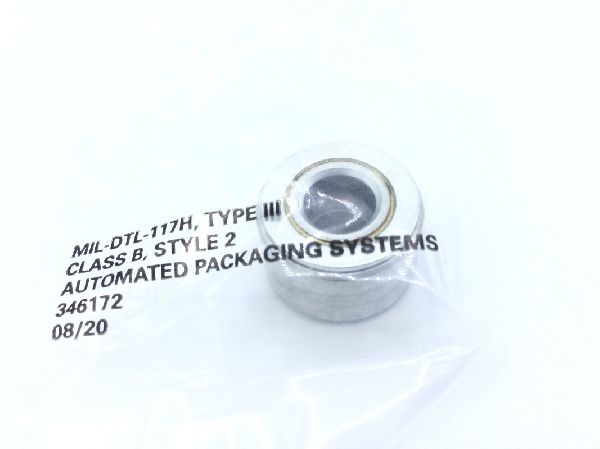

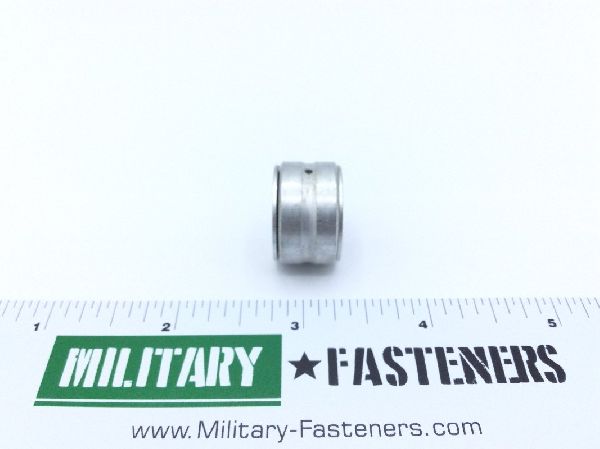

MS24461-6 Roller Needle Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8482.40.0000

Price per Unit $84.40

Units per Pack 1

Price per Pack $84.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $84.40

Add item to quote

Material

Steel

Surface Treatment

Cl 1 federal specification single treatment response type 1 qq-p-416

Alignment Type: Rigid
Bore Diameter: 0.3750 inches
Criticality Code Justification: Feat
Inner Ring Width: Between 0.5570 inches and 0.5620 inches
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-81322 military specification single material response
Outer Ring Width: Between 0.4640 inches and 0.4690 inches
Overall Outside Diameter: 0.8750 inches
Retainer Fabrication Method: Pressed
Special Features: Flight safety critical
Standard Tolerance Designation: Afbma standard tolerance for industrial needle bearings
Style Designator: non-separable hardened and ground airframe
Surface Finish: Ground
