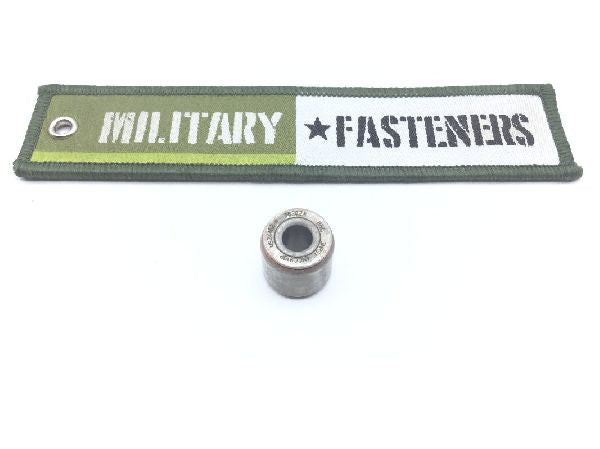

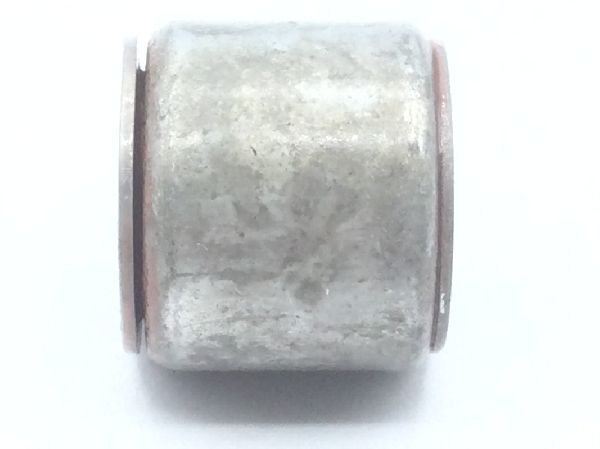

MS24462-4 Roller Needle Bearing

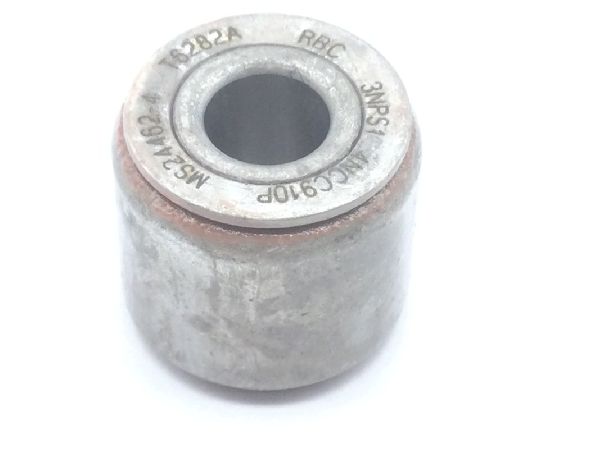

MS24462-4 Roller Needle Bearing (2)

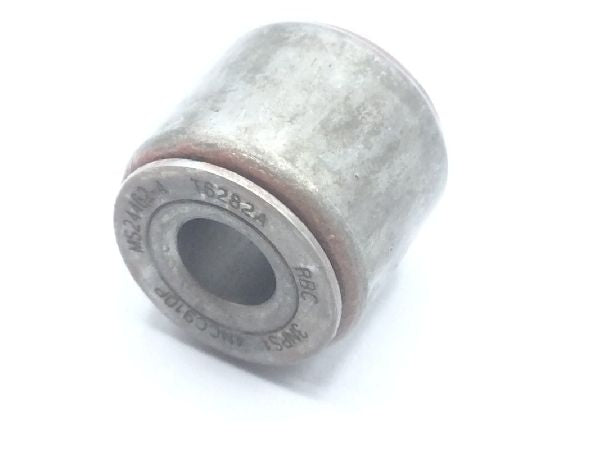

MS24462-4 Roller Needle Bearing (3)

MS24462-4 Roller Needle Bearing (4)

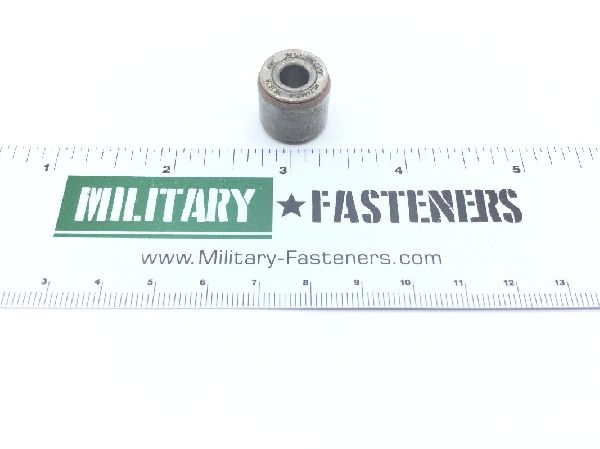

MS24462-4 Roller Needle Bearing (5)

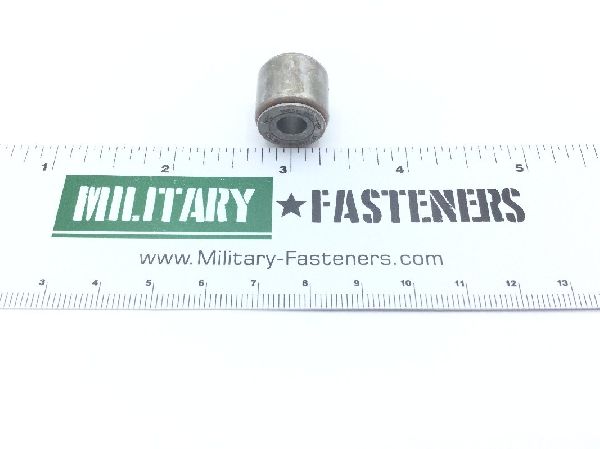

MS24462-4 Roller Needle Bearing (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24462-4 Roller Needle Bearing

Product Series: MS
ECCN: EAR99
Schedule: 8482.40.0000

Price per Unit $199.50

Units per Pack 1

Price per Pack $199.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $199.50

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response exposed surfaces as mounted ty1 qq-p-416

Alignment Type: Rigid
Bore Diameter: 0.2500 inches
Inner Ring Width: 0.5625 inches
Lubrication Material: Grease
Lubrication Material Specification: Mil-g-23827 military specification single material response
Outer Ring Width: 0.5000 inches
Overall Outside Diameter: 0.6250 inches
Retainer Fabrication Method: Pressed
Standard Tolerance Designation: Afbma standard tolerance for industrial needle bearings
Style Designator: Drawn shell with retainer plates non-separable
Surface Finish: Ground
