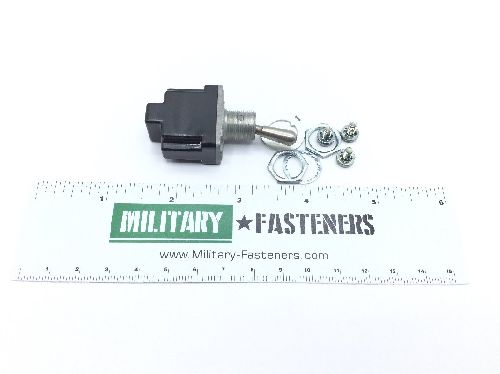

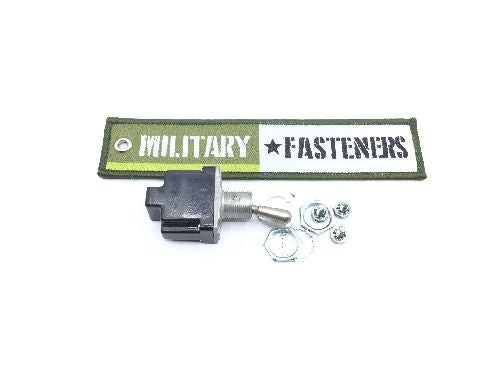

MS24523-22 Toggle Switch

Product Series: MS
ECCN: EAR99
Schedule: 8535.30.0080

Price per Unit $52.45

Units per Pack 1

Price per Pack $52.45

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $52.45

Add item to quote

Overall Length

1.270 inches

Thread Class

Thread Quantity Per Inch (tpi)

Thread Size

0.469 inches

Actuator Diameter: Between 0.237 inches and 0.243 inches
Actuator Height: Between 0.665 inches and 0.695 inches
Actuator Position-action Relationship: Up position maintained and down position maintained
Actuator Style: Round
Body Height: Between 0.890 inches and 0.930 inches
Body Length: 1.270 inches
Body Style: Bushing mount
Body Width: 0.635 inches
Bushing Length: Between 0.455 inches and 0.485 inches
Contact Load Current Rating At Maximum Rated Voltage: 20.000 amperes resistive dc and 15.000 amperes inductive dc and 5.000 amperes lamp dc and 15.000 amperes resistive ac and 10.000 amperes inductive ac and 3.000 amperes lamp ac
End Application: Mrap buffalo mk2a2
Features: Actuator seal
Features Provided: Actuator seal
Inclosure Type: Fully inclosed
Maximum Voltage Rating In Volts: 115.0 ac and 28.0 dc
Mounting Method: Threaded bushing
Nonpile-up Contact Arrangement: Both positions maintained single switch unit double throw 1 pole
Terminal Type And Quantity: 2 screw
Thread Series Designator: Uns
