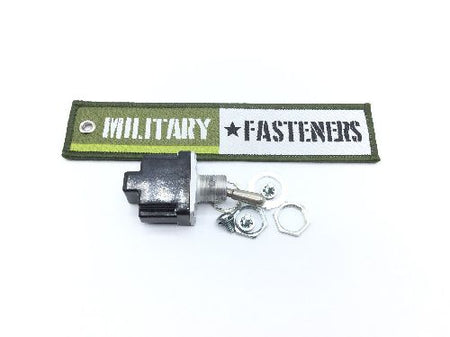

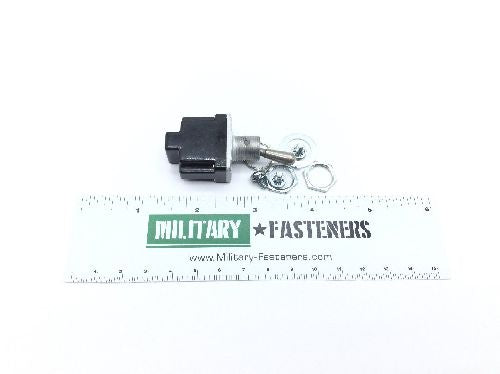

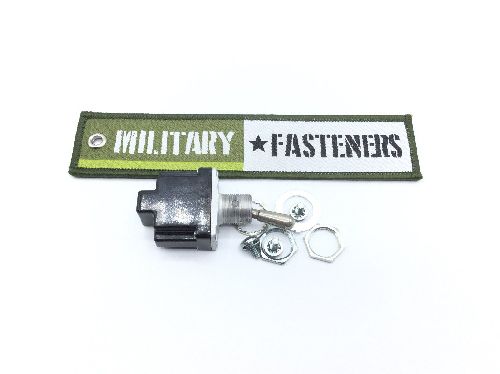

MS24523-24 Toggle Switch

Product Series: MS
ECCN: 9A991
Schedule: 8535.30.0080

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Overall Length

1.270 inches

Thread Class

Thread Size

0.469 inches

Actuator Diameter: Between 0.237 inches and 0.243 inches
Actuator Height: Between 0.665 inches and 0.695 inches
Actuator Position-action Relationship: Up position maintained and down position maintained
Actuator Style: Round
Body Height: Between 0.890 inches and 0.930 inches
Body Length: 1.270 inches
Body Style: Bushing mount
Body Width: 0.635 inches
Bushing Length: Between 0.455 inches and 0.485 inches
Contact Load Current Rating At Maximum Rated Voltage: 20.000 amperes resistive dc and 10.000 amperes inductive dc and 5.000 amperes lamp dc and 15.000 amperes resistive ac and 10.000 amperes inductive ac and 3.000 amperes lamp ac
Features: Actuator seal
Features Provided: Actuator seal
Hazardous Locations/environmental Protection: Vaportight
Inclosure Type: Fully inclosed
Maximum Voltage Rating In Volts: 115.0 ac and 28.0 dc
Mounting Method: Threaded bushing
Nonpile-up Contact Arrangement: Both positions maintained single switch unit double throw 1 pole
Terminal Type And Quantity: 2 screw
Test Data Document: Etc.).
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Uns
