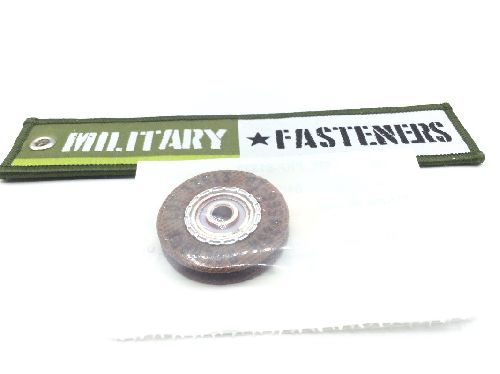

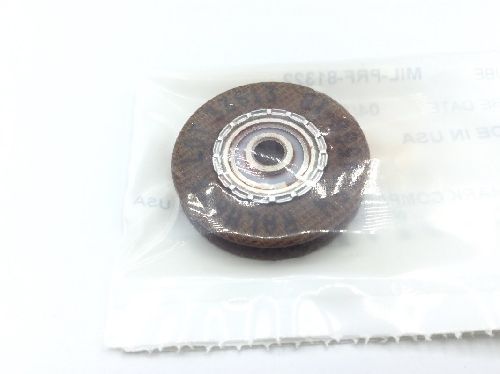

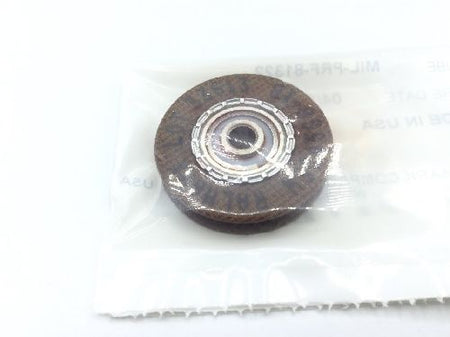

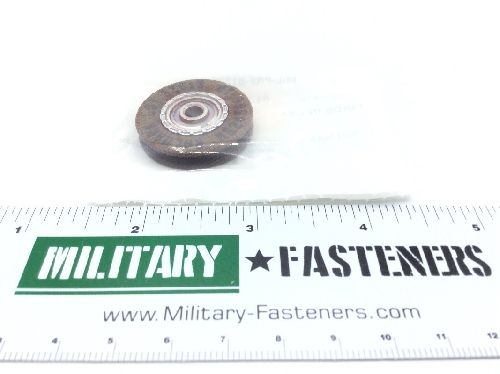

MS24566-1B Groove Pulley

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $80.85

Units per Pack 1

Price per Pack $80.85

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $80.85

Add item to quote

Overall Length

Between 0.292 inches and 0.297 inches

Bearing Quantity: 1
Bearing Type: Ball
Bearings: Included
Bore Diameter: Between 0.189 inches and 0.190 inches
Bore Feature: Included
Bore Length: Between 0.296 inches and 0.297 inches
Bore Type: Straight
Counterbore Feature: Not included
Design Form: Plain
Distance From Outside Flange/rim To Hub End And Location: 0.023 inches both ends
Face Width: Between 0.240 inches and 0.250 inches
Groove Depth: Between 0.139 inches and 0.140 inches
Groove Quantity: 1
Groove Radius: Between 0.052 inches and 0.055 inches
Groove Shape: U
Groove Width: 0.300 inches
Hub End Outside Diameter And Location: 0.624 inches both ends and 0.625 inches both ends
Integral Cooling Vane: Not included
Keying Facility: Not included
Lightening Hole: Not included
Material And Location: Phenolic plastic
Outside Diameter: Between 1.240 inches and 1.260 inches
Split Hub Feature: Not included
Style Designator: Plain
Web/spoke Relationship To Face Centerline: Not offset
