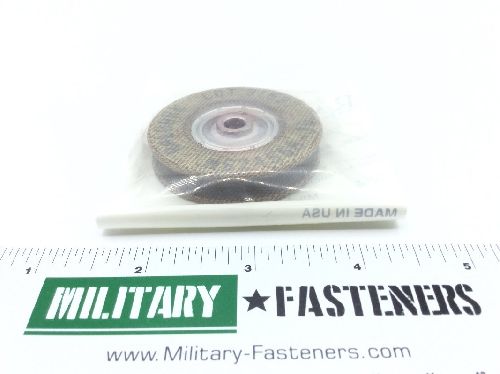

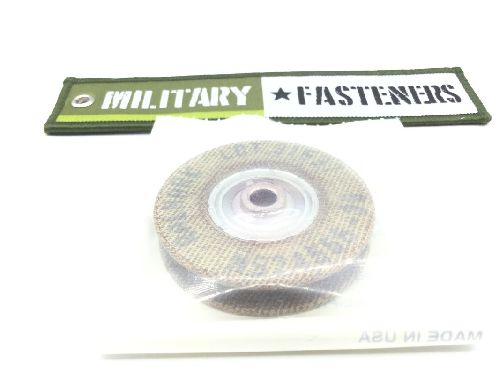

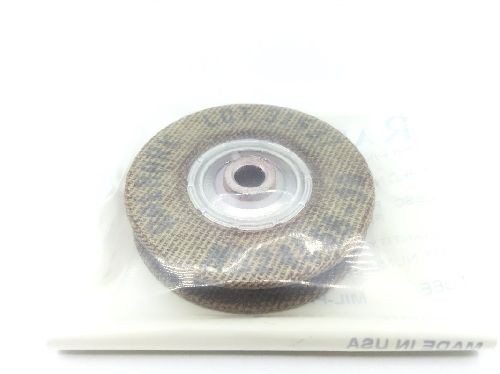

MS24566-3B Groove Pulley

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Bearing Quantity: 1
Bearing Type: Ball
Bearings: Included
Bore Diameter: Between 0.2495 inches and 0.2500 inches
Bore Feature: Included
Bore Length: Between 0.479 inches and 0.484 inches
Bore Type: Straight
Counterbore Feature: Not included
Design Form: Plain
Distance From Outside Flange/rim To Hub End And Location: 0.029 inches both ends and 0.037 inches both ends
Face Width: Between 0.410 inches and 0.422 inches
Groove Depth: Between 0.245 inches and 0.257 inches
Groove Quantity: 1
Groove Radius: Between 0.109 inches and 0.112 inches
Groove Shape: U
Groove Width: 0.344 inches
Hub End Outside Diameter And Location: 0.390 inches both ends
Integral Cooling Vane: Not included
Keying Facility: Not included
Lightening Hole: Not included
Material And Location: Fabric
Outside Diameter: Between 1.990 inches and 2.010 inches
Split Hub Feature: Not included
Style Designator: Plain
Web/spoke Relationship To Face Centerline: Not offset
