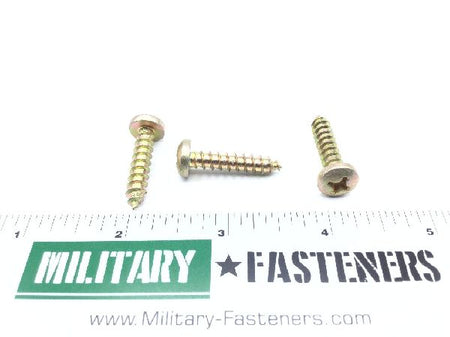

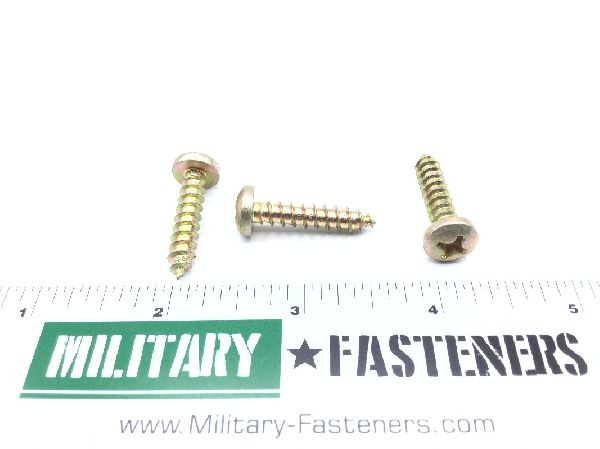

MS24617-46 Machine Screw

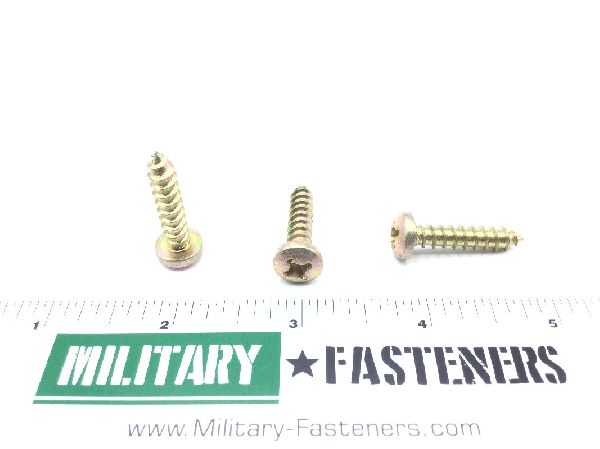

MS24617-46 Machine Screw (2)

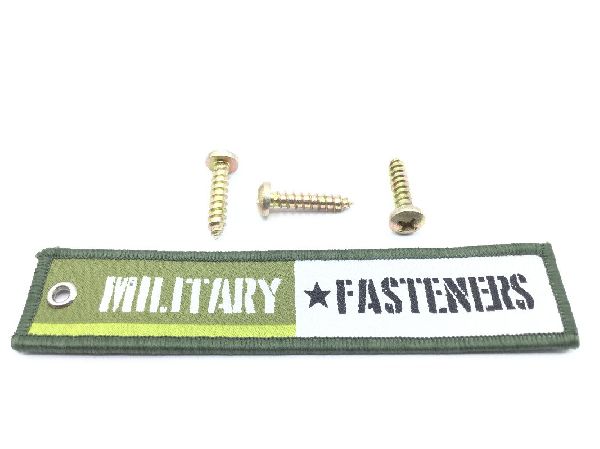

MS24617-46 Machine Screw (3)

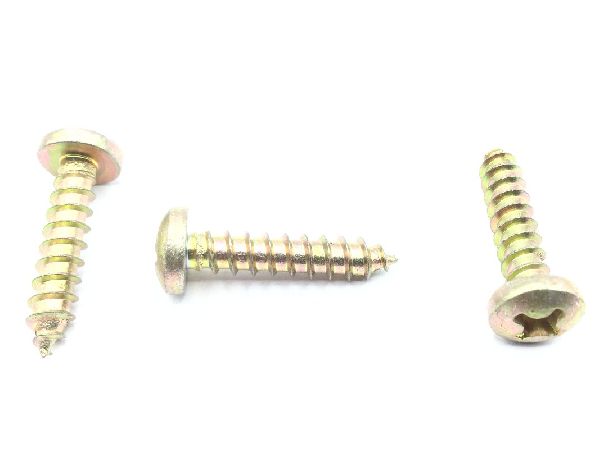

MS24617-46 Machine Screw (4)

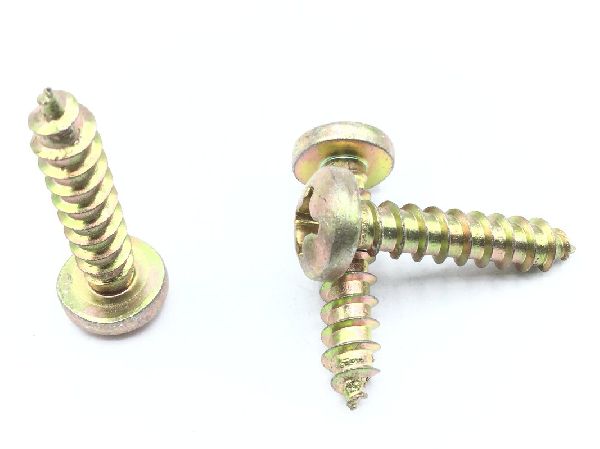

MS24617-46 Machine Screw (5)

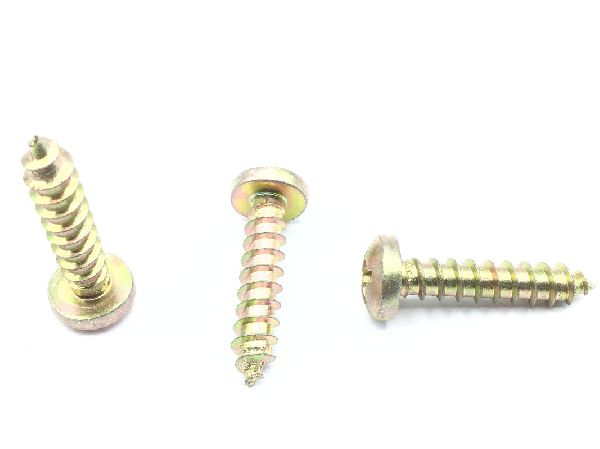

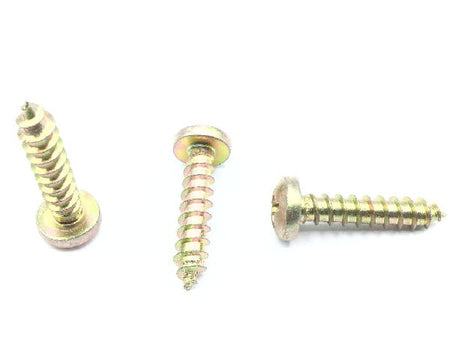

MS24617-46 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24617-46 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.34

Units per Pack 100

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Astm b633 assn standard all treatment responses

Fastener Length: 1.000 inches
Features: Casehardened
Features Provided: Casehardened
Head Height: Between 0.139 inches and 0.151 inches
Internal Drive Style: Cross recess type 1
Material Specification: Aisi assn standard all material responses
Nonmachine Thread Diameter: 0.216 inches
Nonmachine Thread Style: ab or ba) gimlet point (type a
Head Diameter: Between 0.407 inches and 0.425 inches
