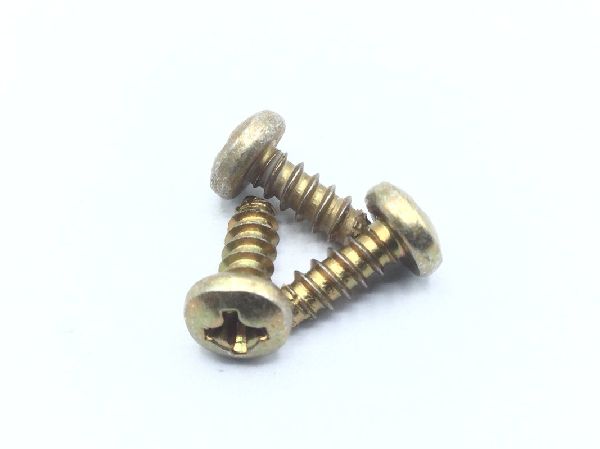

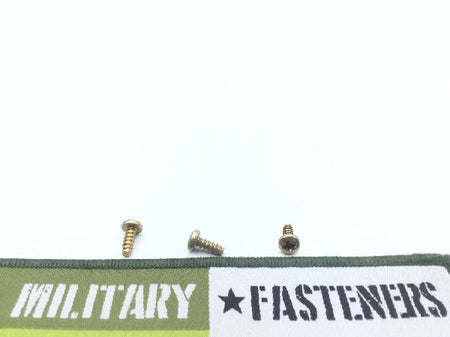

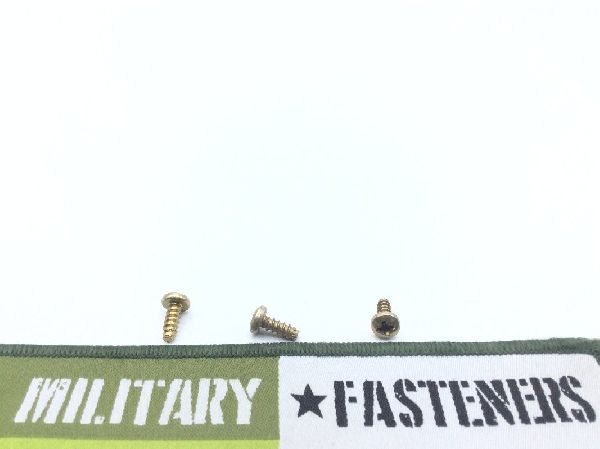

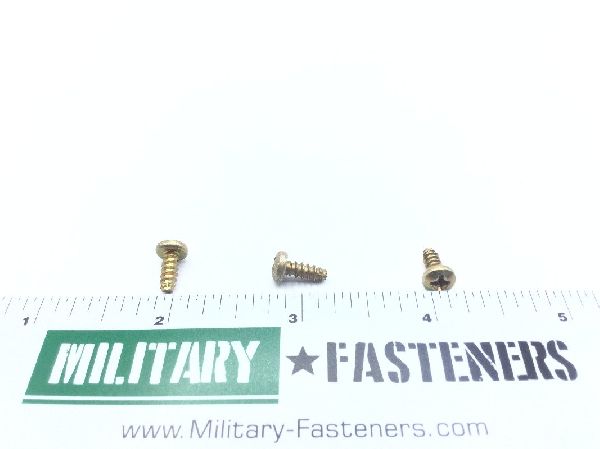

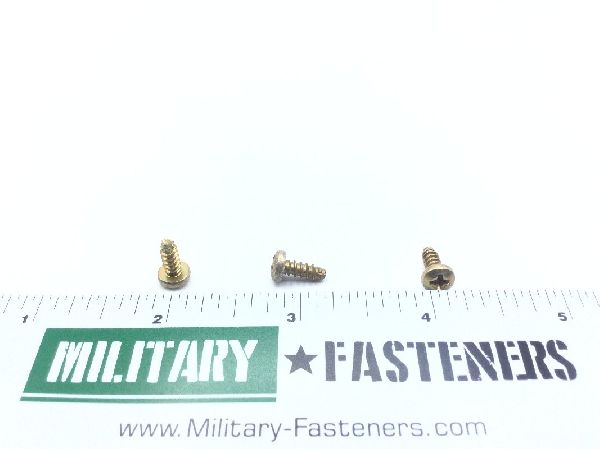

MS24625-19 Machine Screw

MS24625-19 Machine Screw (2)

MS24625-19 Machine Screw (3)

MS24625-19 Machine Screw (4)

MS24625-19 Machine Screw (5)

MS24625-19 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24625-19 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

type 2 cl 3 federal specification all treatment responses qq-p-416

Fastener Length: 0.375 inches
Features: Casehardened
Features Provided: Casehardened
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Cross recess type 1
Nonmachine Thread Diameter: 0.138 inches
Nonmachine Thread Style: Wide flute (type h or bt)
Head Diameter: Between 0.256 inches and 0.270 inches
