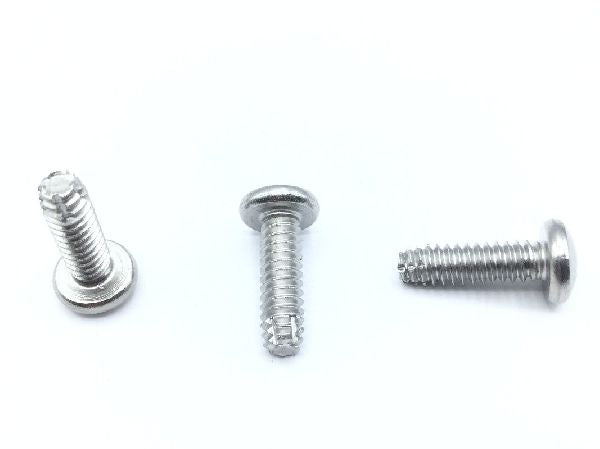

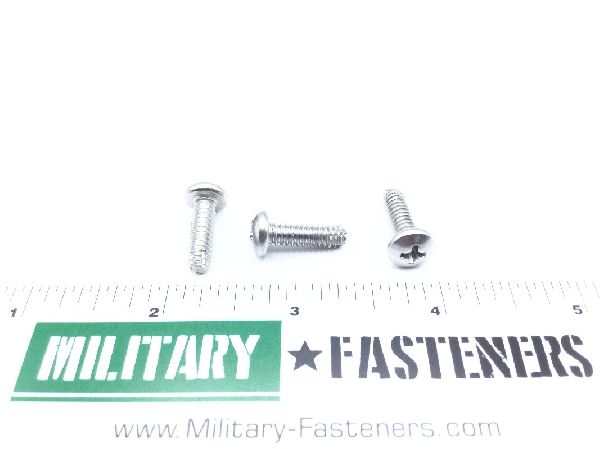

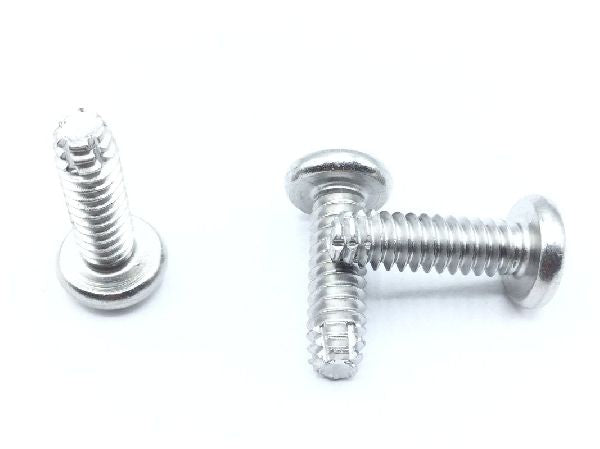

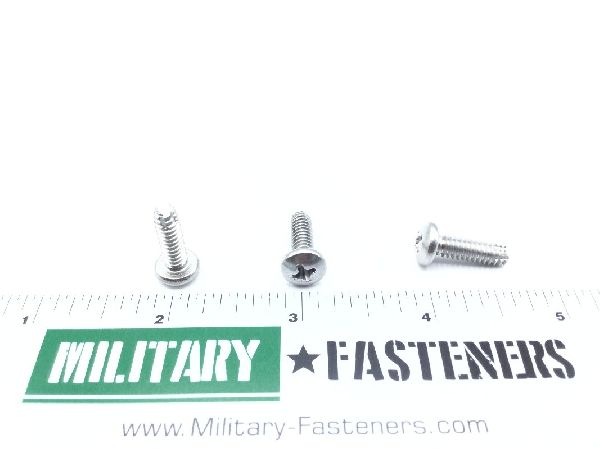

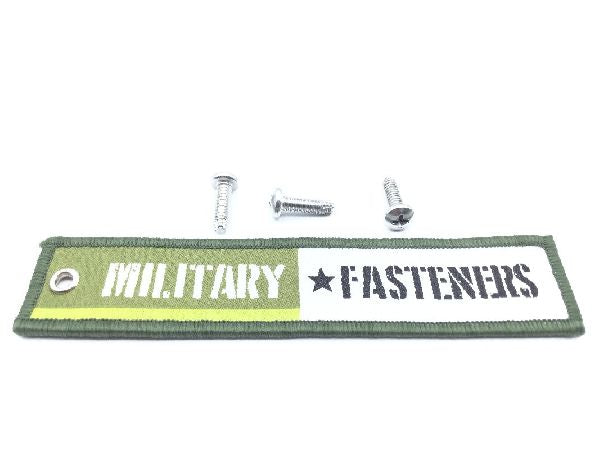

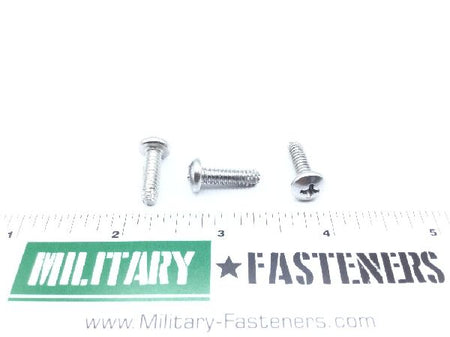

MS24630-47 Machine Screw

MS24630-47 Machine Screw (2)

MS24630-47 Machine Screw (3)

MS24630-47 Machine Screw (4)

MS24630-47 Machine Screw (5)

MS24630-47 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24630-47 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Head Style

Pan no. 2

Material

Steel comp 410

Surface Treatment

Qq-p-35 federal specification single treatment response

Fastener Length: 0.625 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Material Specification: Aisi assn standard single material response
Nonmachine Thread Diameter: 0.190 inches
Nonmachine Thread Style: Narrow flute (type e)
Head Diameter: Between 0.257 inches and 0.373 inches
