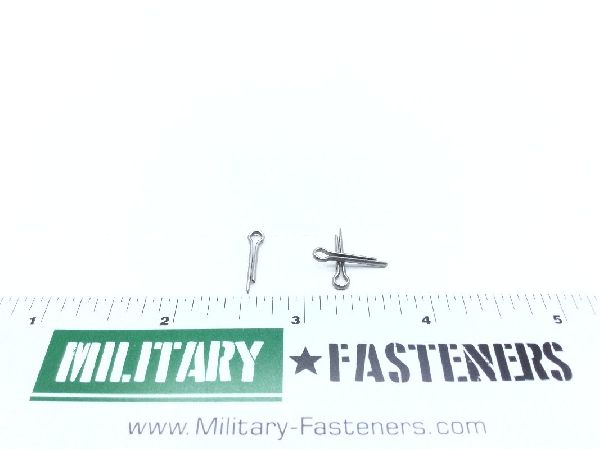

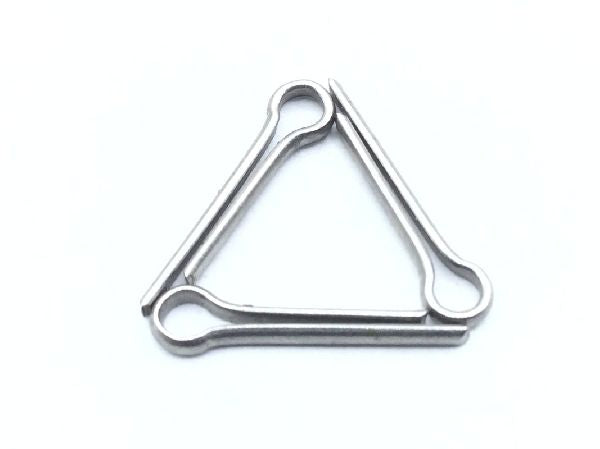

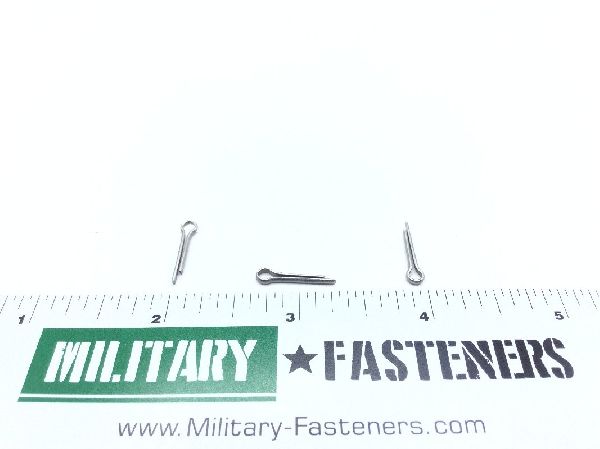

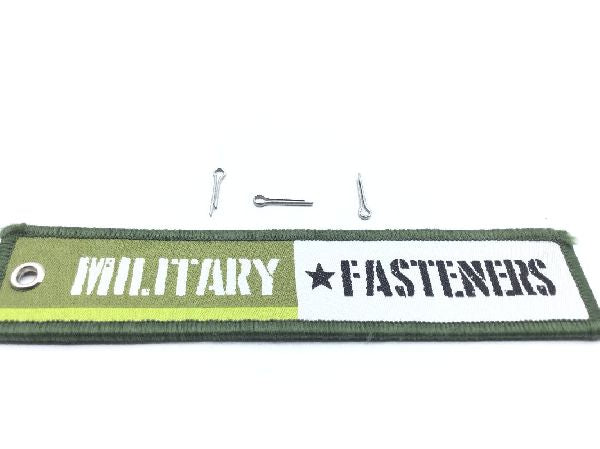

MS24665-1012 Cotter Pin

MS24665-1012 Cotter Pin (2)

MS24665-1012 Cotter Pin (3)

MS24665-1012 Cotter Pin (4)

MS24665-1012 Cotter Pin (5)

MS24665-1012 Cotter Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24665-1012 Cotter Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.24.0000

Price per Unit $0.25

Units per Pack 100

Price per Pack $25.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $25.00

Add item to quote

Material

Steel comp 302 or steel comp 304

Surface Treatment

Qq-p-35 federal specification single treatment response

Hardness Rating: 65.0 rockwell superficial 15-n and 78.0 rockwell superficial 15-n
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: C type
Point Type: Extended prong square cut
Style Designator: Standard
Underloop Length: 0.375 inches
Diameter: Between 0.056 inches and 0.060 inches
