MS24665-159 Cotter Pin

MS24665-159 Cotter Pin (2)

MS24665-159 Cotter Pin (3)

MS24665-159 Cotter Pin (4)

MS24665-159 Cotter Pin (5)

MS24665-159 Cotter Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

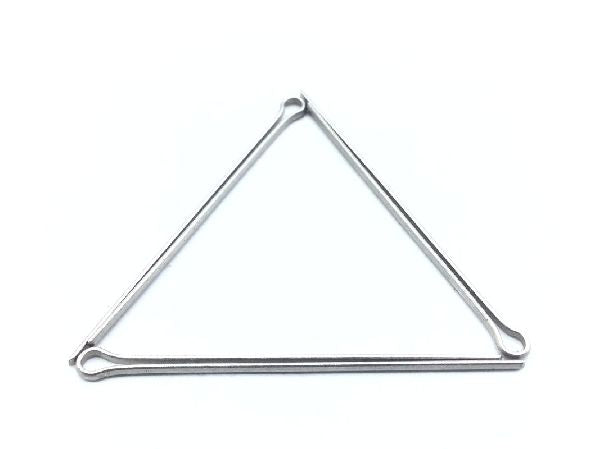

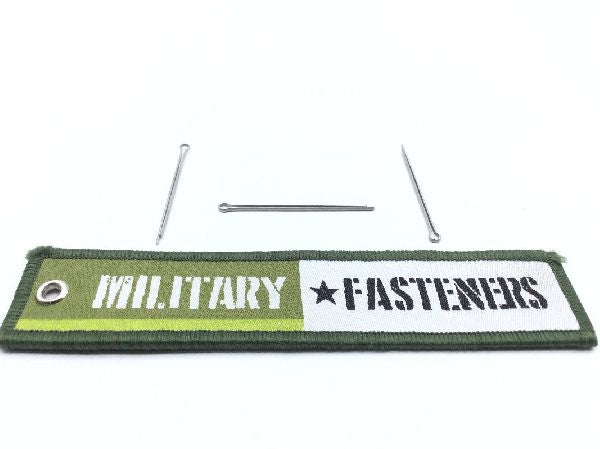

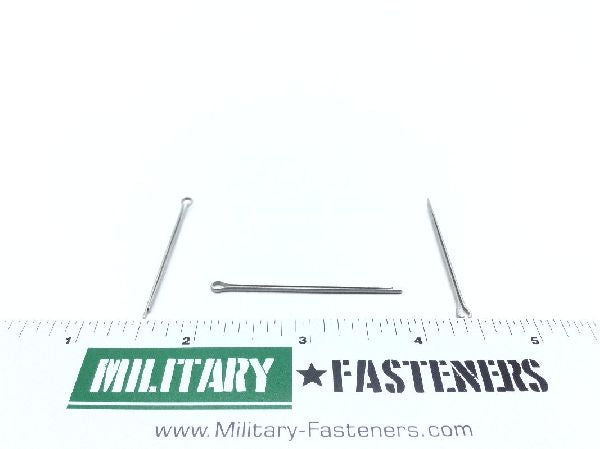

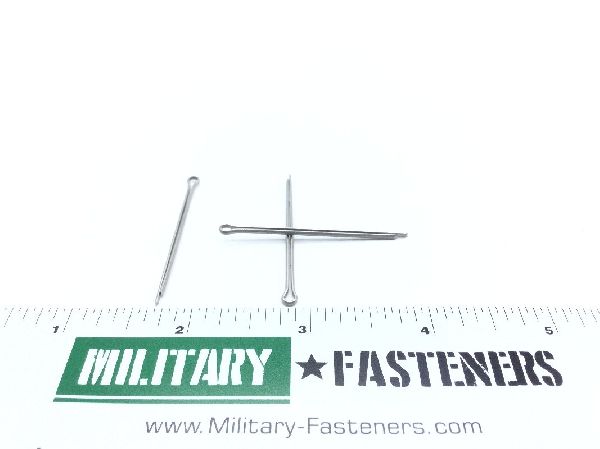

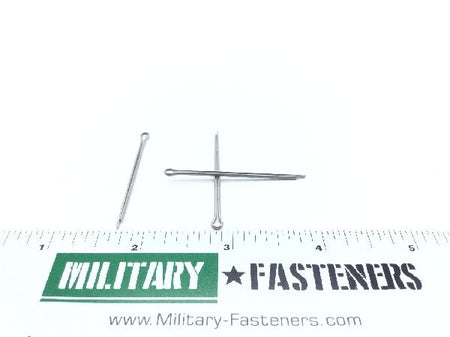

MS24665-159 Cotter Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.24.0000

Price per Unit $0.30

Units per Pack 100

Price per Pack $30.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $30.00

Add item to quote

Material

Steel comp 302 or steel comp 304

Surface Treatment

Astm a380 assn standard single treatment response

Departure From Cited Designator: As modified by point style and packing data
Hardness Rating: 65.0 rockwell superficial 15-n and 78.0 rockwell superficial 15-n
Material Specification: Astm a493 assn standard single material response
Point Type: Extended prong mitre end
Style Designator: Standard
Underloop Length: Between 1.375 inches and 1.625 inches
Diameter: Between 0.056 inches and 0.060 inches
